VP400 Series Video Pro Form7343A Operation Manual
34
Composite Video (NTSC) to Video Input
A common interface used for NTSC video is a single wire composite video signal. A composite
video signal contains a luminance signal, encoded color sub-carrier signal and analog composite
sync signal (ACS). A test generator supplies an NTSC composite video signal with test patterns
for testing equipment with a composite video input.

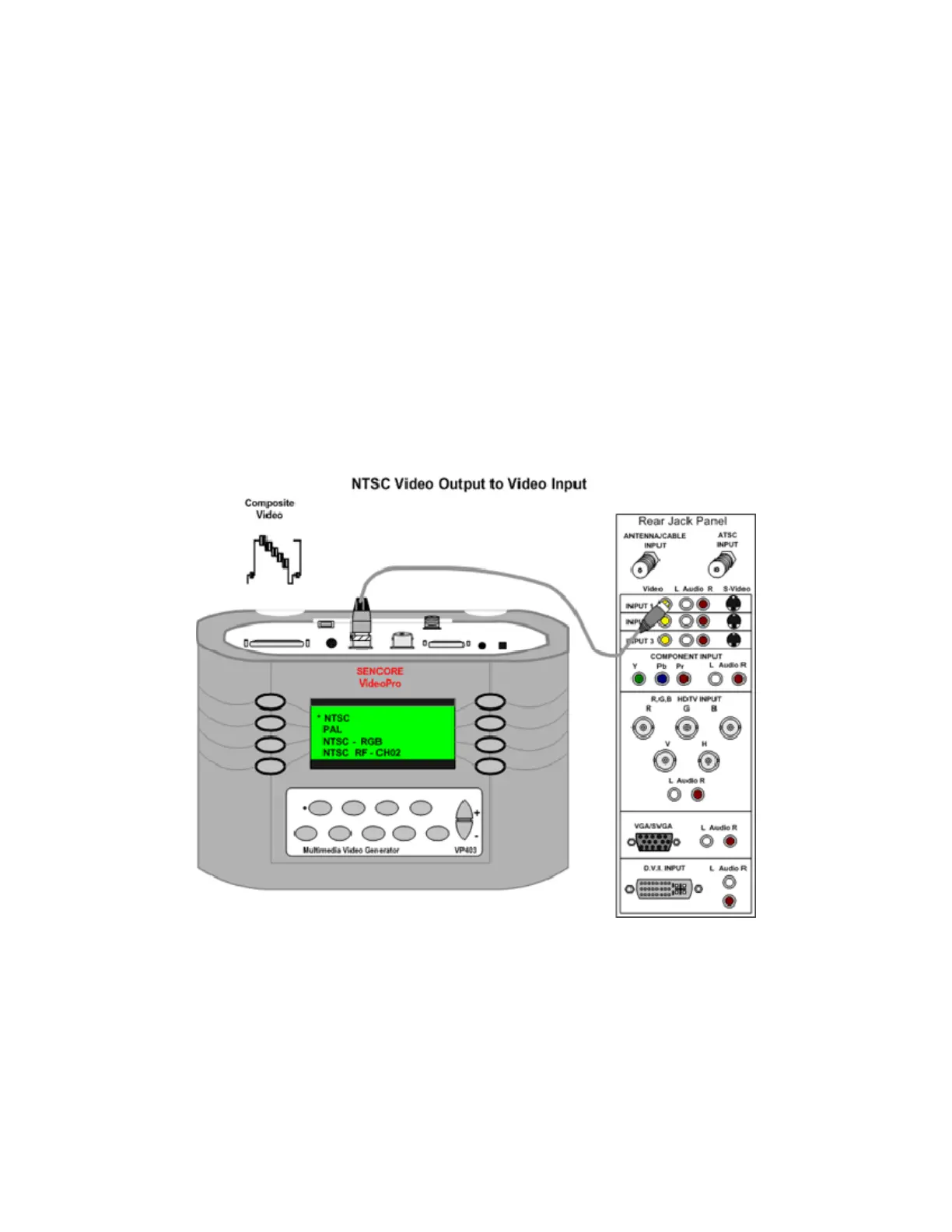

To test the video input, connect the BNC
video test lead (39G232) from the generator’s
Composite Output to the Video input of the
display. Since the display likely uses an RCA
phono connector, you will need to connect a
BNC to RCA phono adapter (26G1255) to the
display end of the BNC cable.
To output a composite video signal from the
generator, select the NTSC/PAL selection in
the Signal Type menu. Select the NTSC
selection in the Format menu. Select the
Video input from the receiver/monitors input
menu screen. The receiver/monitor should
process the composite video signal and
display the video test pattern
