VP400 Series Video Pro Form7343A Operation Manual
51
Appendix D: Playing the VP403C Video Clips and Picture
Images on an ATSC Display

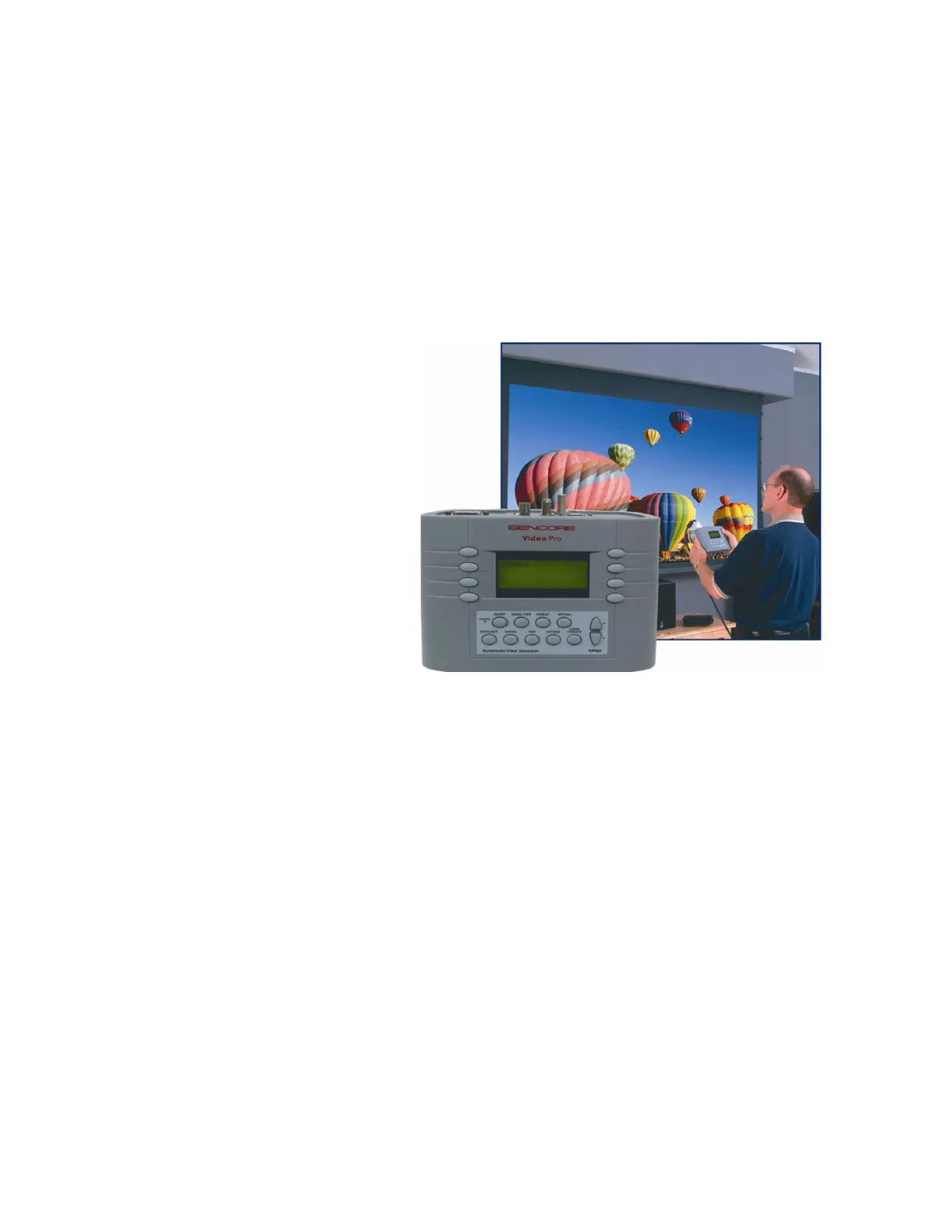

The VP403C “VideoPro” outputs two moving video test signals on an ATSC-RF test signal. The
motion video
test clips feature colorful hot-air balloons or beautiful nature scenes from Hawaii.
The moving test signals highlight the performance of HD-ready displays after installation,
calibration or servicing. The clips are also excellent for testing and identifying artifacts related to
digital signal processing. The video clips are accompanied with a stereo audio signal.
To play a VP403C video clip on an HDTV display, follow these few simple steps. Each step is
described in detail in this appendix.
1. Connect the VP403C to the
ATSC Receiver
2. Select VP403C Signal Type &
ATSC Channel Press the Signal
Type button, wait, and then
select the ATSC channel.
3. Select Signal Format (720p =
Hawaii Scenes, 1080i = Colorful
Hot Air Balloons)
4. Select VP403C “Video 1”
Pattern
5. Set up ATSC Receiver
(vhf/uhf) – Perform Channel
Search (SCAN)
6. Select ATSC Channel on the
receiver
1. Connect the VP403C to ATSC Receiver
The VP403C is a multimedia generator with multiple output signal types. It provides NTSC-RF,
NTSC and PAL composite video, NTSC and PAL S-video, SDTV/HDTV YPbPr component
video, SDTV/HDTV and VESA/MAC RGB, SDTV/HDTV and VESA/MAC DVI, and
SDTV/HDTV ATSC-RF test signal types.
The moving video test clips are available through the ATSC-RF output signal type. Connect the
RF test cable (Sencore Part #39G189) between the ATSC-RF output of the generator and the
ATSC input of the receiver. The receiver may call this an RF input or an antenna input.
Note: Check with the owner’s manual to be sure the receiver has a built-in ATSC digital tuner. If
it claims to include a digital cable or QAM tuner it also receives ATSC. Some ATSC receivers or
set-top-boxes (STB) may have more than one RF connector input. Check with the operations
manual to be sure the input you select is capable of tuning to off-air TV channel signals.
