VP400 Series Video Pro Form7343A Operation Manual
9

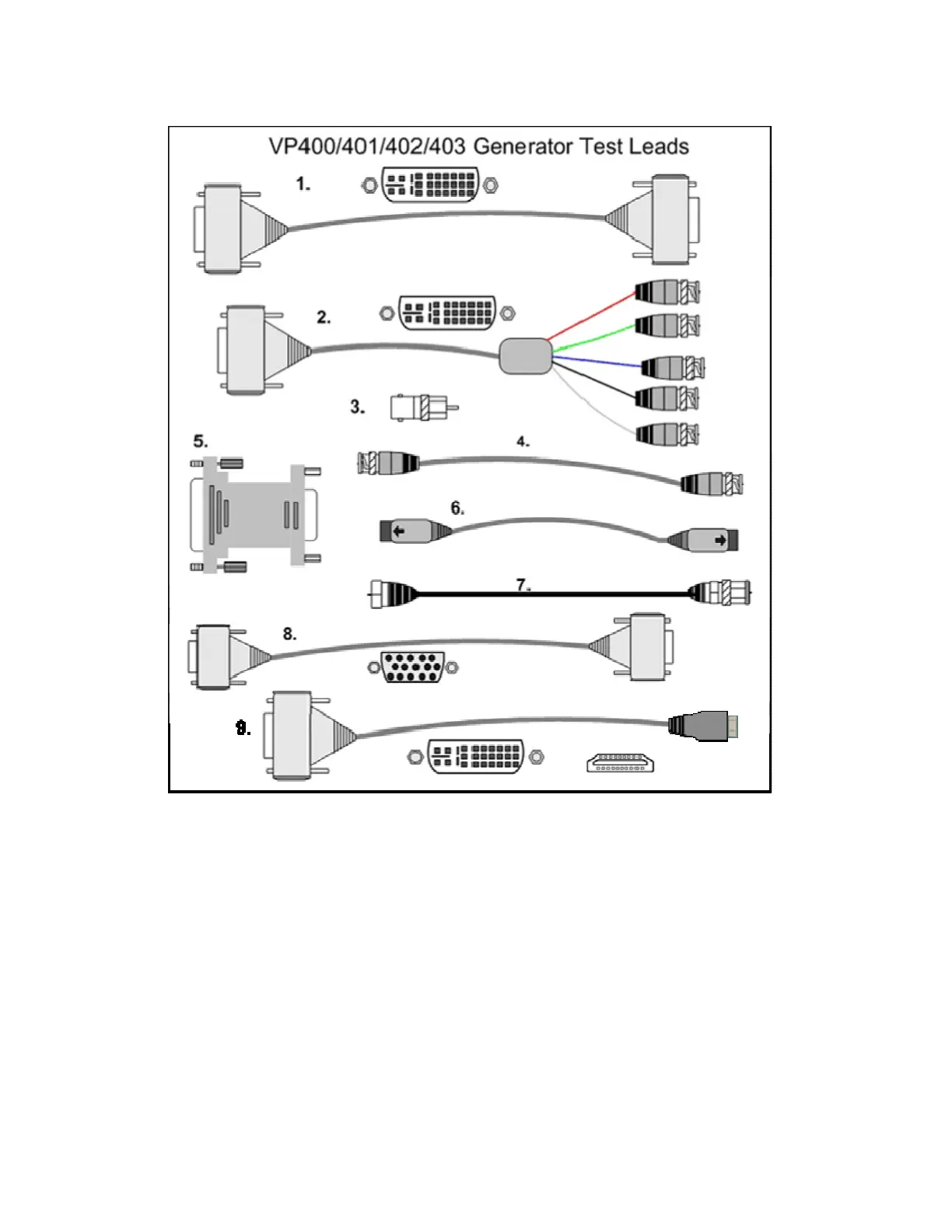

Test Lead Accessories
1. DVI-I male to DVI-I male single link 6 ft.
cable (39G1060) – Connects the DVI output of
the generator to the DVI input of a display.
(Supplied with VP401 and 403)
2. DVI-I male to 5 BNC 6 ft. cable (39G1059) -
Adapts the generator’s DVI analog outputs to
the RGBVH or component inputs of a display.
3. BNC to RCA phono plug adapter (26G1255) –
Adapts a BNC connector to an RCA male
phono plug. Use to adapt the BNC connectors
to male phono connectors required by most Y,
Pb, Pr inputs. (5 Supplied)
4. Coaxial BNC to BNC 6 ft. cable (39G232) –
Connects the NTSC/PAL output jack of
generator to the video inputs of a display.
5. DVI-A to VGA HD-15 F Adapter (39G1061) -
Adapts the analog DVI outputs of the generator
to a standard VGA HD-15 plug configuration.
6. SVHS 4 pin mini-din connector cable
(39G270) – Connects the S Video output jack
of the generator to the Y/C or S Video input of
a display.
7. Coaxial 6ft. cable “F” to Quick F connectors
(39G189): - Connects the RF output jack of the
VP403 to the antenna or cable input of a
display. (Supplied with VP402, VP403)
8. (Optional - all models) VGA HD-15M to
VGA HD-15M 6 ft. cable (39G798) – Used to
connect the output of the DVI to VGA adapter
(39G1061) to the VGA HD-15 input of a
display.
9. (Optional - all models) Connects a DVI output
to an HDMI input (DH1000 cable).
