Tint Control
Adjust the tint control by comparing the intensity of the cyan and magenta color bars through a
blue filter. Compare the light level of the large top cyan and magenta bars with the small bars
directly below each of them. Adjust the tint control to make these bars appear the same light
level, as viewed through a blue filter. To double-check the adjustment, remove the blue filter and
observe the yellow and cyan bars. If the tint is set too red, the cyan bar will look green and the
yellow bar will look orange. If the tint is set too green, the cyan bar will look blue and the yellow
bar will look green.
Remember that the user controls should be calibrated with the room lighting adjusted to the
preferred level for movie viewing. These controls should also be the final adjustments that are
made to the TV. If the TV white balance is calibrated, these five user controls will need to be re-
calibrated.

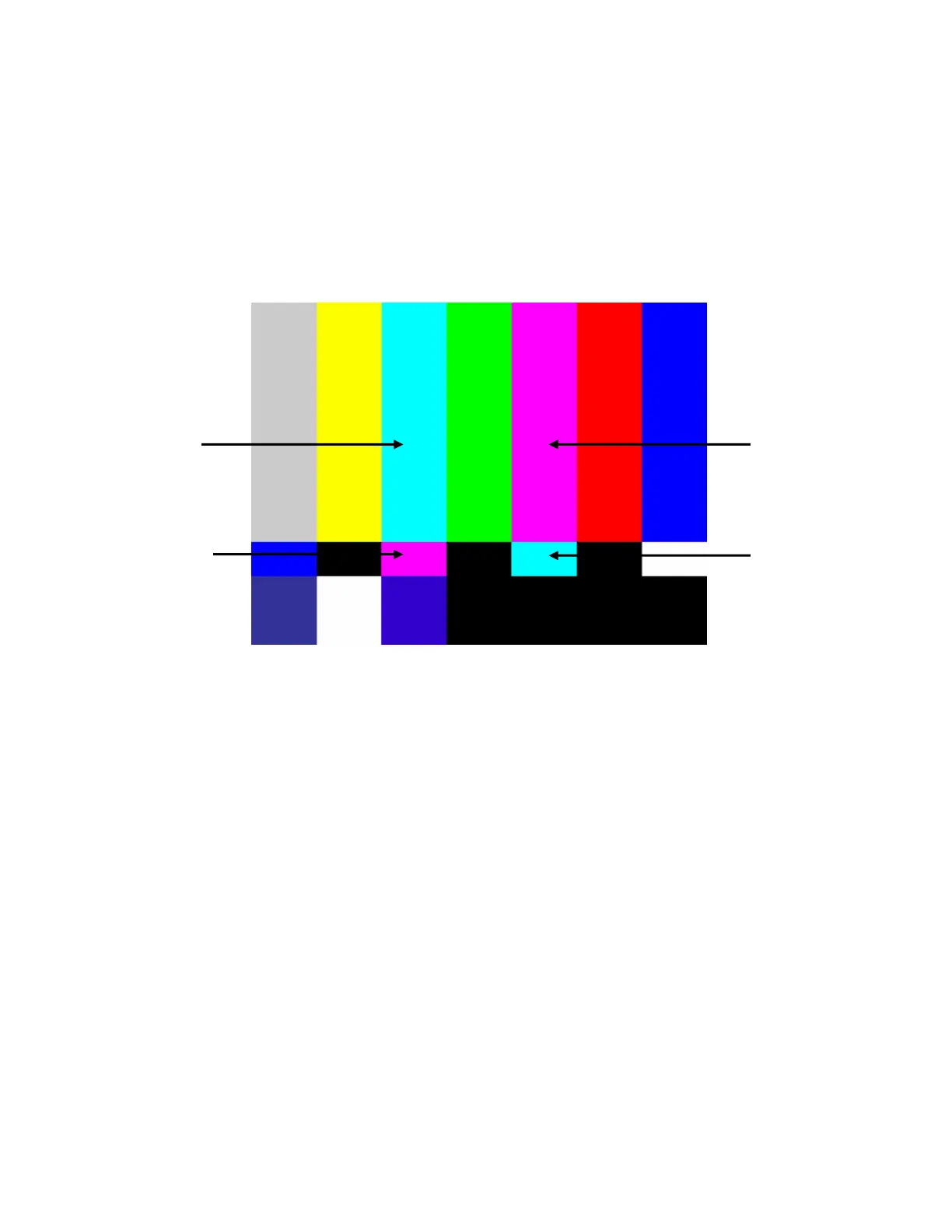

Cyan Bar Magenta Bar
