Open pump

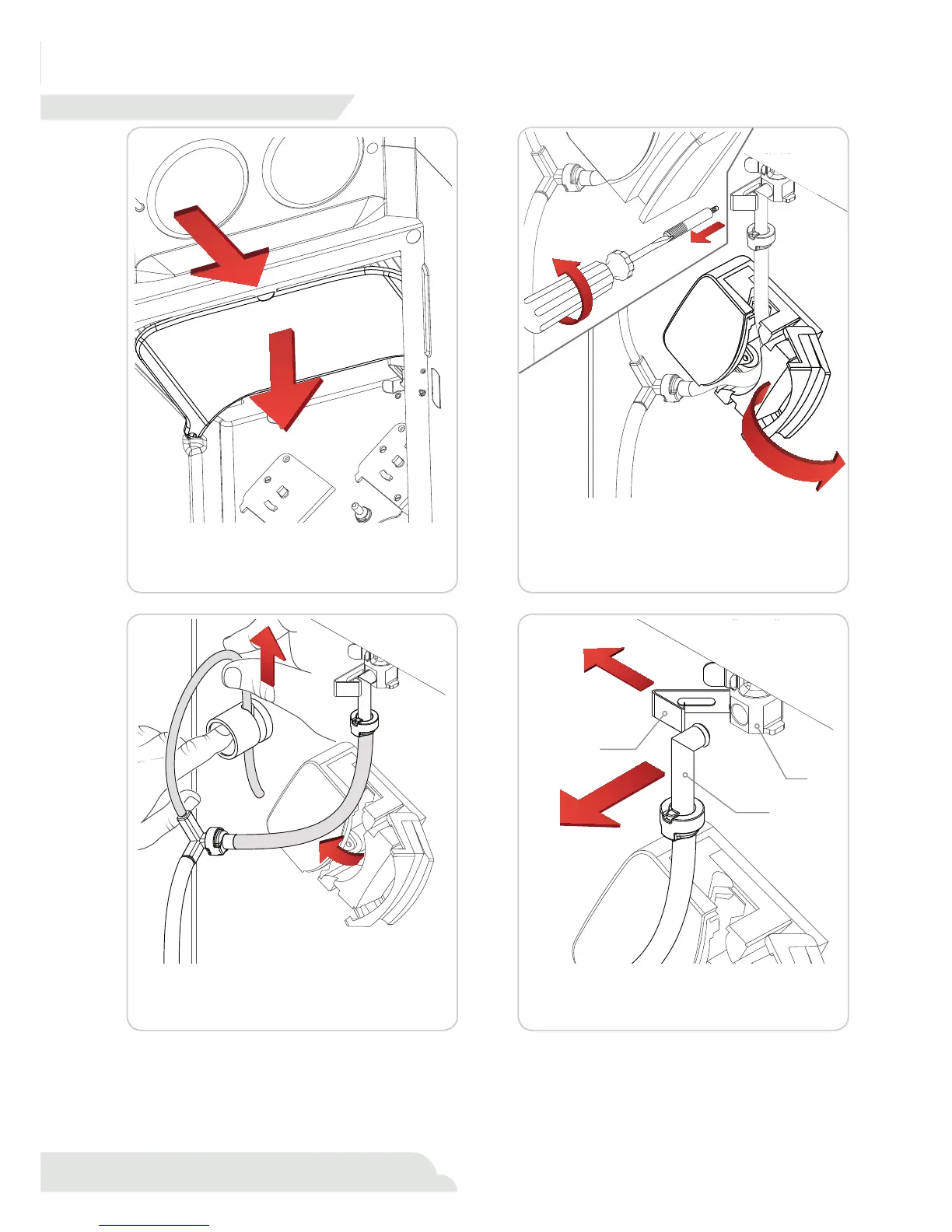

Remove upper tray
Remove the pump tube from the pump
Remove the pump tube from the inlet tube
Remove the bold and open the peristaltic pump by
raising the lid.
Remove the upper tray from the refrigerator by
pressing the catch and pulling downwards.
Remove the pump tube and the valve tube by tak-
ing it delicately from the interior.
Pull the catch (A) to the left and take out the con-
nection stub (B) and inlet tube (C).
3.1
3.3 3.4
3.2
