Sencotel 153 - Page 26

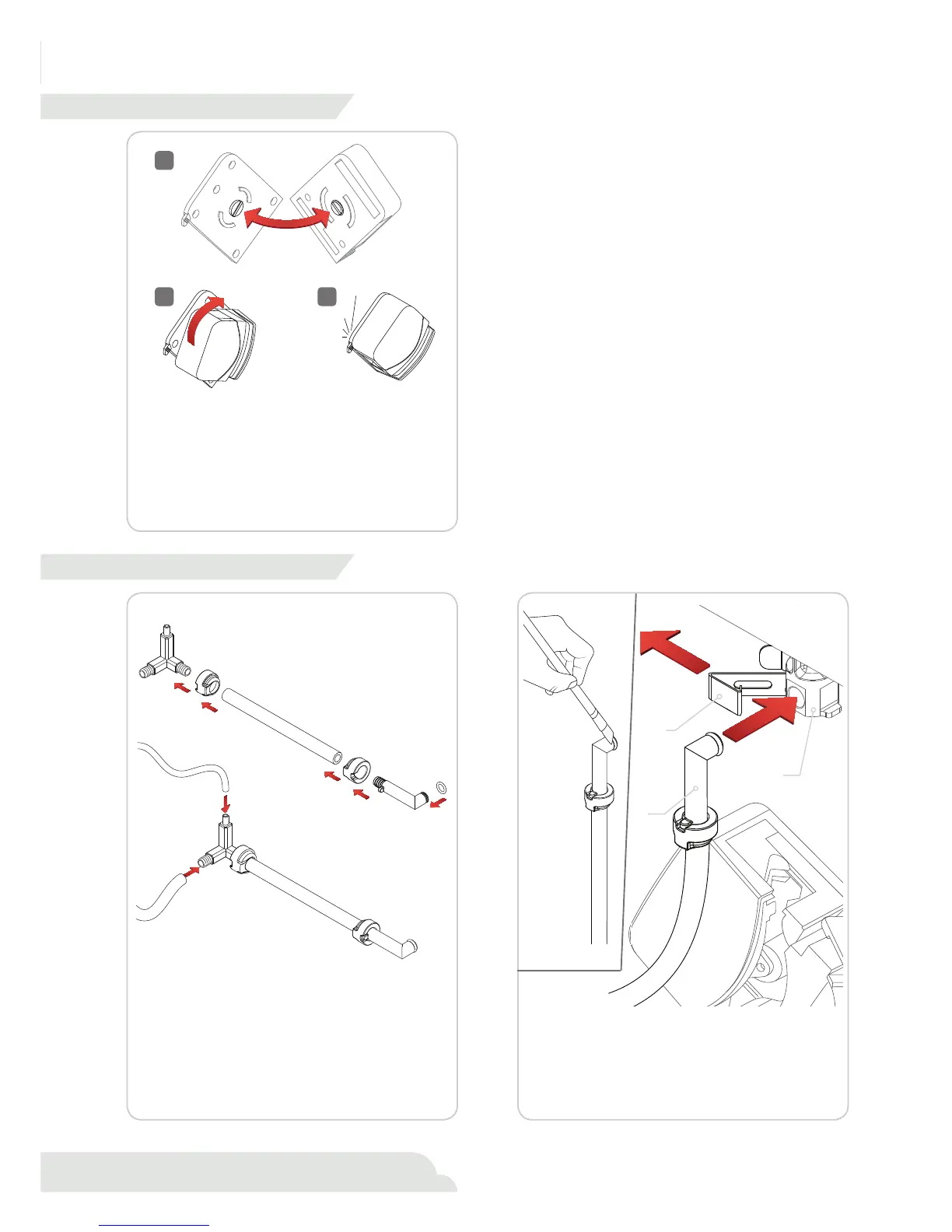

Install the pump
Assemble pump tube
Assemble the pump tube in the
entry tube
Re-install the body of the pump: Check the corre-
spondence with the bayonet couplings, place the
pump on its support plate and turn it clockwise to
ȴ[LWLQSRVLWLRQ.
Assemble the o-ring (G) on the stub (B) and assem-
ble in sequence the stub (B), the ferrule (X2) on the
WXEH<ȴQDOO\FRQQHFWWKHWXEH<RQWRWKHVWXE
(Z) through the ferrule (X1). Connect the suction
tube (A) and the valve tube (V) with the stub (Z).
/XEULFDWHWKHRULQJRIWKHFRQQHFWLRQVWXE%ZLWK
Vaseline. Pull the catch (A) to the left and introduce
the connection stub (B) into the entry tube (C). Re-
lease the catch (A) to hold the connection stub.
2.1
3.1 3.2
Click!
1
 3
A
C
B
Z
X
X
Y
B
G
Z
A
1
2
V
26
Assembly
2.Assemble Pump.
3.Assembly of pump Tube.
