Putting the receiver into operation
16
To mount the receiver into a 19” rack:
왘 Slide the receiver with the mounted blanking plate into the 19” rack.
왘 Secure the rack mount “ears” to the 19” rack.
If you are using the supplied rod antennas:
왘 Align the antennas in a V-shape to obtain the best possible reception.
Rack mounting
two receivers

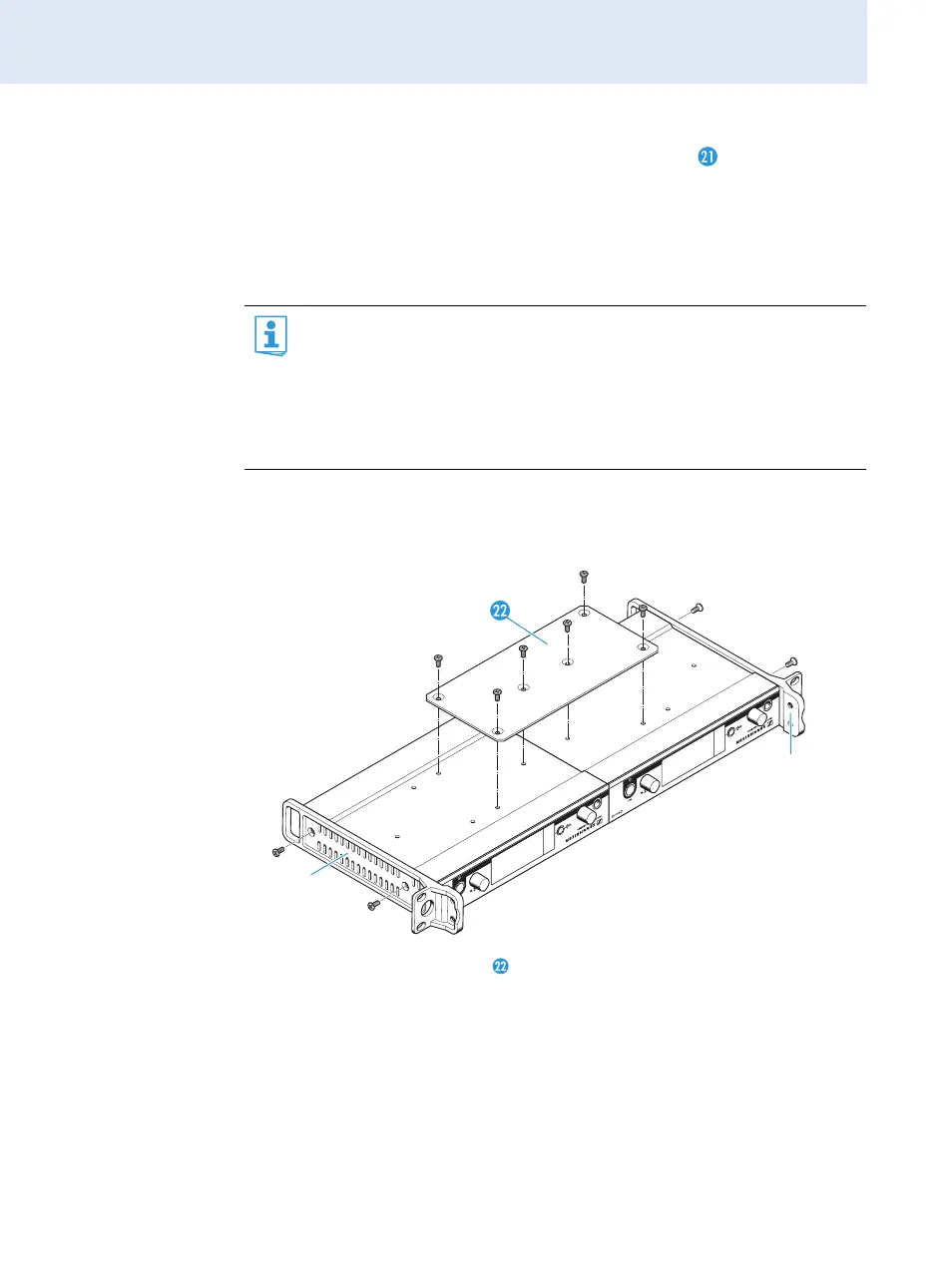

To mount the receivers into a rack using the GA 3 rack adapter:
왘 Place the two receivers side by side upside-down onto a flat surface.
왘 Secure the jointing plate to the receivers using six recessed head
screws (M 3x6).
왘 Secure the rack mount “ears” to the receivers as described on
page 12.
When rack mounting two receivers side by side, you can only front
mount the antennas when using the ASA 1 antenna splitter in
conjunction with the AM 2 antenna front mount kit and an
additional GA 3 rack adapter (see “Accessories and spare parts” on
page 53).
We recommend using remote antennas.
