1 Introduction
The TX105 pH/ORP transmitter is a 2-wire
transmitter designed for industrial process monitoring,
measurement, and control applications. This user’s
manual contains the information needed to install, set up,
operate, and maintain the transmitter.

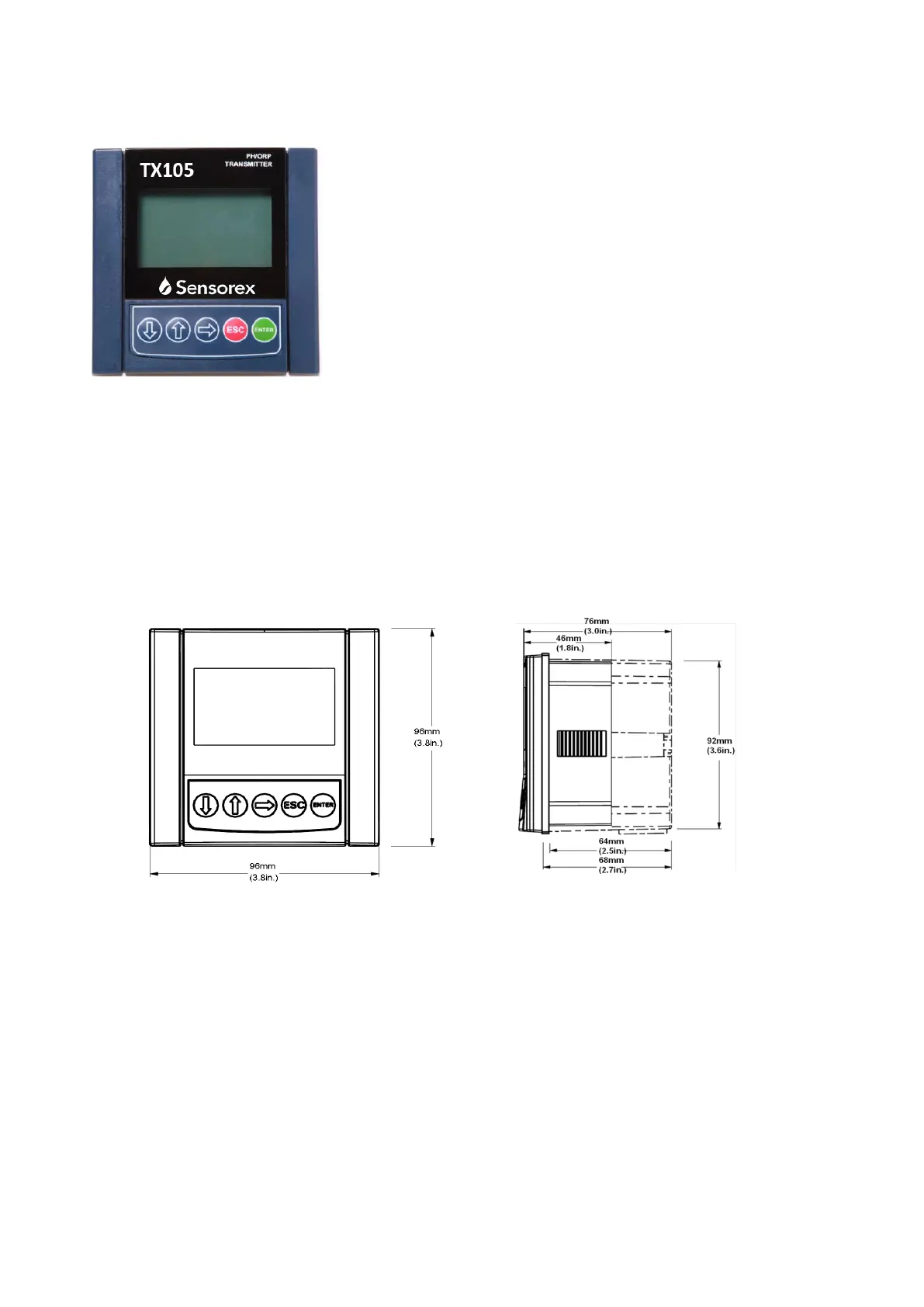

2 Dimension Drawings
2.1 Front and Side View
Front view Side view
Panel Mount& Field Mount
2.2 Installation
TX105 pH/ORP transmitters are available in two installation styles: panel mount and field
mount.
2.2.1 Panel Installation Instructions
1) The panel mount version is designed for installation using a 1/4 DIN Punch.
2) Recommended clearance on all sides between instruments is 1 inch.
