2.2.2 Field Mount Installation
The field mount version requires a wall mounting kit, which includes a plastic wall mounting rear
cover with gasket as well as fixing screws. This makes it possible to install the transmitter on a
variety of surfaces.
1) Place the gasket on the instrument.
2) Thread electrical cables through the connectors on the wall mounting rear cover.
3) Connect the power, sensor and OC output wires.
4) Secure the wall mounting rear cover to the front enclosure with screws.
5) Fix the wall mounting rear cover to the surface by using screws or cables.

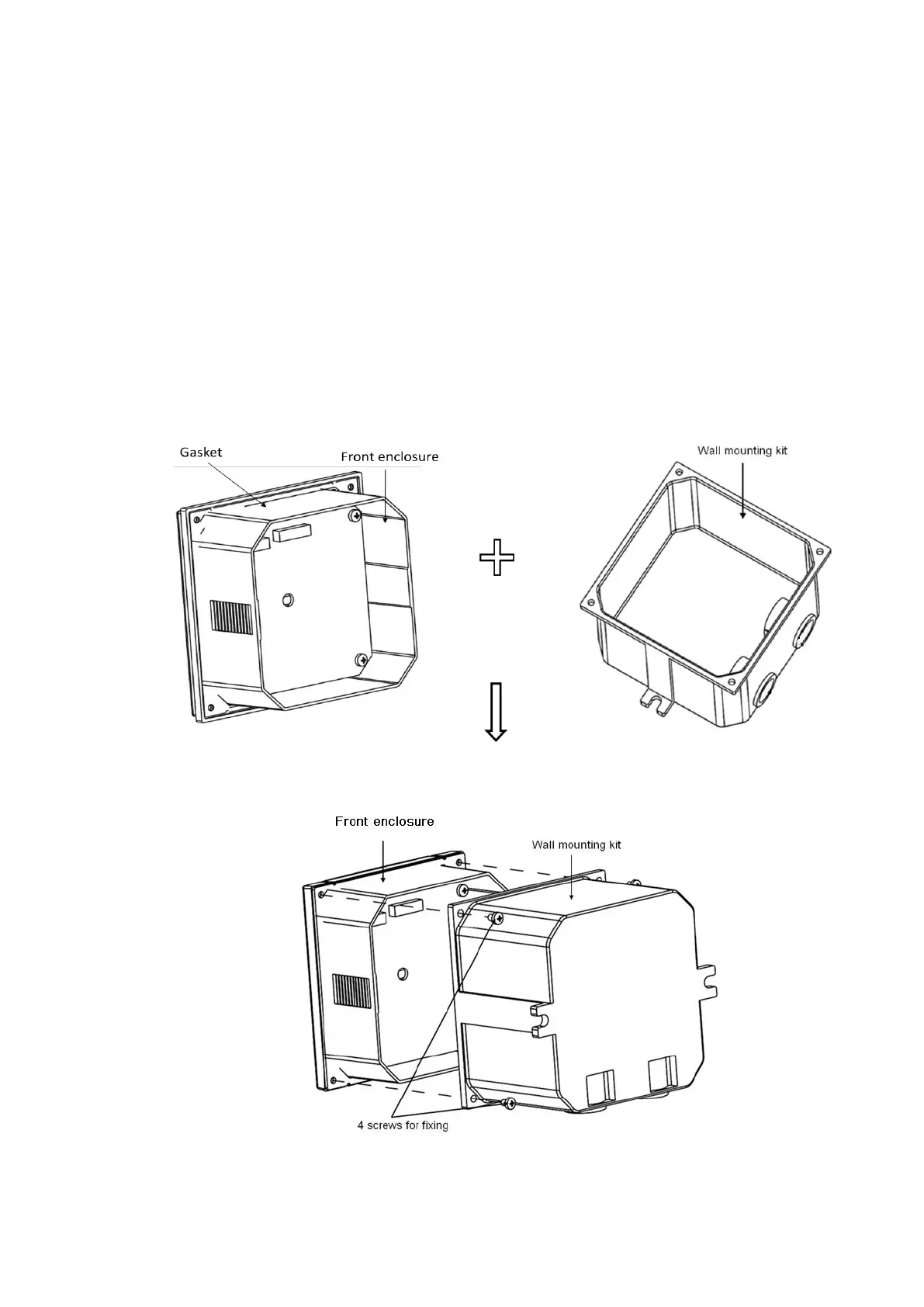

Diagrammatic sketch：
Field mount installation detail schematic
