Motor Head Unit InstallationMotor Head Unit Installation
LISH
E
N
G
20

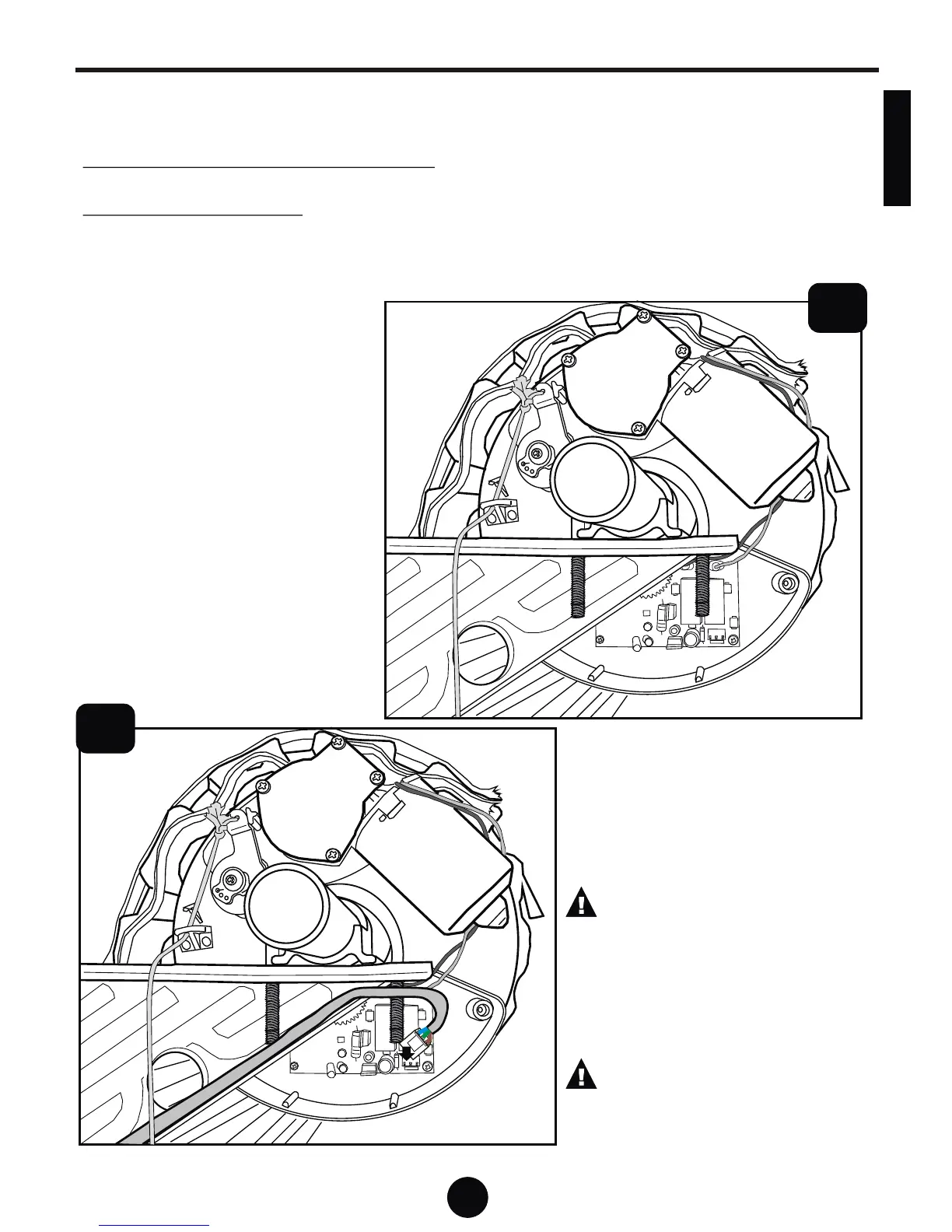

Tightening the motor and tube assembly
For platform type (WISPECO™) doors, replace the original u-bolt. Inspect the
washers and nuts and replace if needed
For other types of doors, you will need to use the supplied u-bolt, cut and drill a
baseplate, and install as shown in the following sections from page 22 onwards.
8
Reinstall and tighten the original
u-bolt as shown alongside. Be
sure to tighten the u-bolt nuts
sufficiently so that the stem of
the motor unit is clamped
securely, and cannot slip
sideways off the platform. It
may be necessary to fit washers
beneath the nuts to achieve
optimal tightness.
Note: In some instances it will
be necessary to fit the cover
before tightening the motor
as it will be difficult to get the
cover on afterwards.
9
Connect the free end of the
supplied interconnect cable to
the receptacle on the PCB as
shown. Route the cable along
the platform edge to keep it
away from the door curtain edge.
Caution: Ensure there is
enough cable slack in the
portion that enters the PC
board compartment so that
fitment of the cover is not
problematic!
Refer to Page 10 for
correct plug orientation!
