CONNECTING A DPG

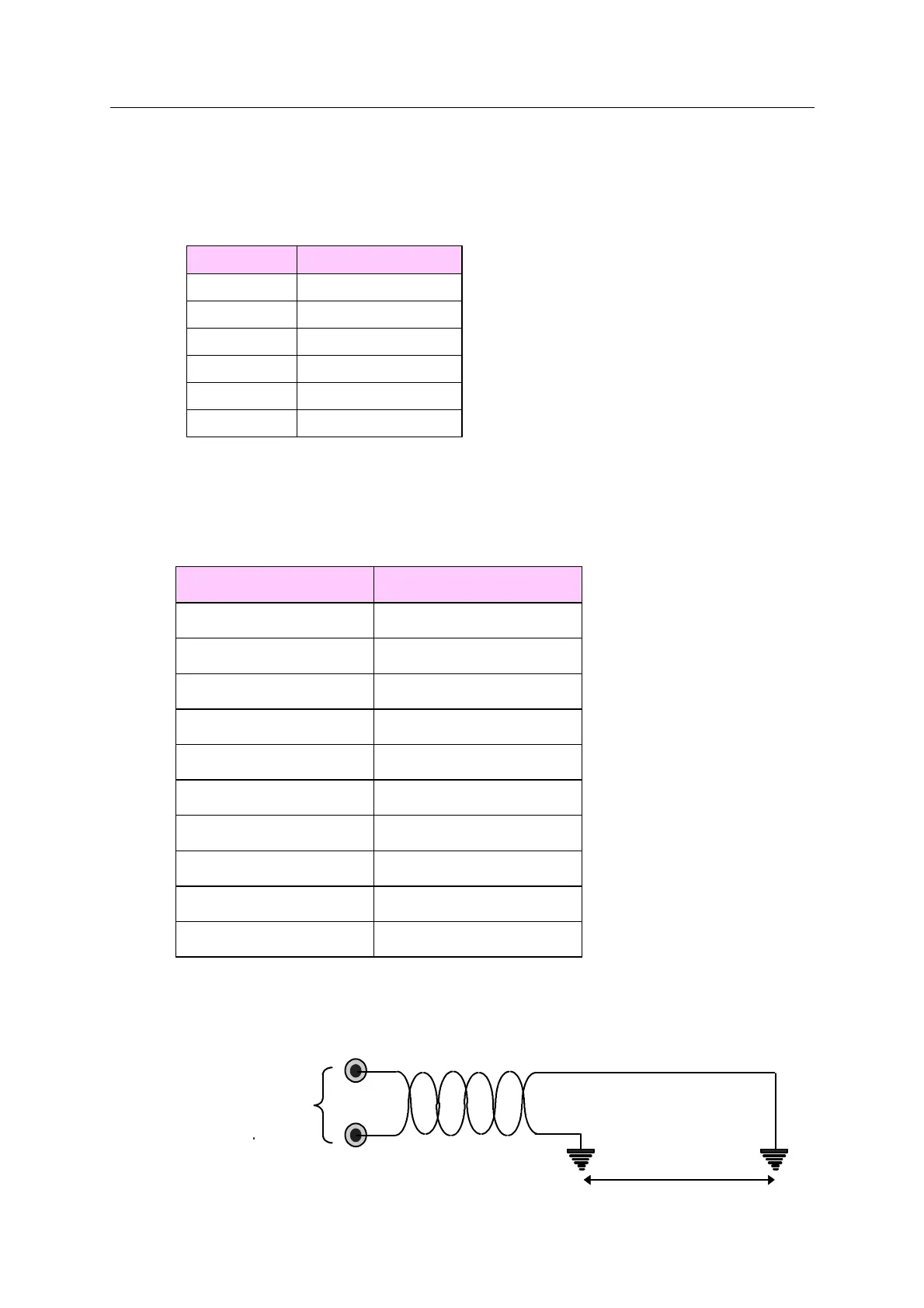

DPG CONNECTORS
0311385 Issue : April 1999
2-20
RADIO connector
Connector Type: 10-6P
RADIO plug Signal Name
A XMT Out
B RCV In
C PTT Out
D COM
E not connected
F not connected
COM 1 connector (palmtop computer⇔⇔DPG)
Connector type: 12-10P
HUSKY-DPG plug Signal Name
B not used
H RX
In
G TX
Out
D not used
A GND
J GND
F RTS
Out
E CTS
In
C Charger In
In
K -
HI-LINE connector
(twisted pair)
(Two earth stakes)
≈ 10 m
Input should be
greater than
16 mV peak to
peak
HI LINE
banana jacks
