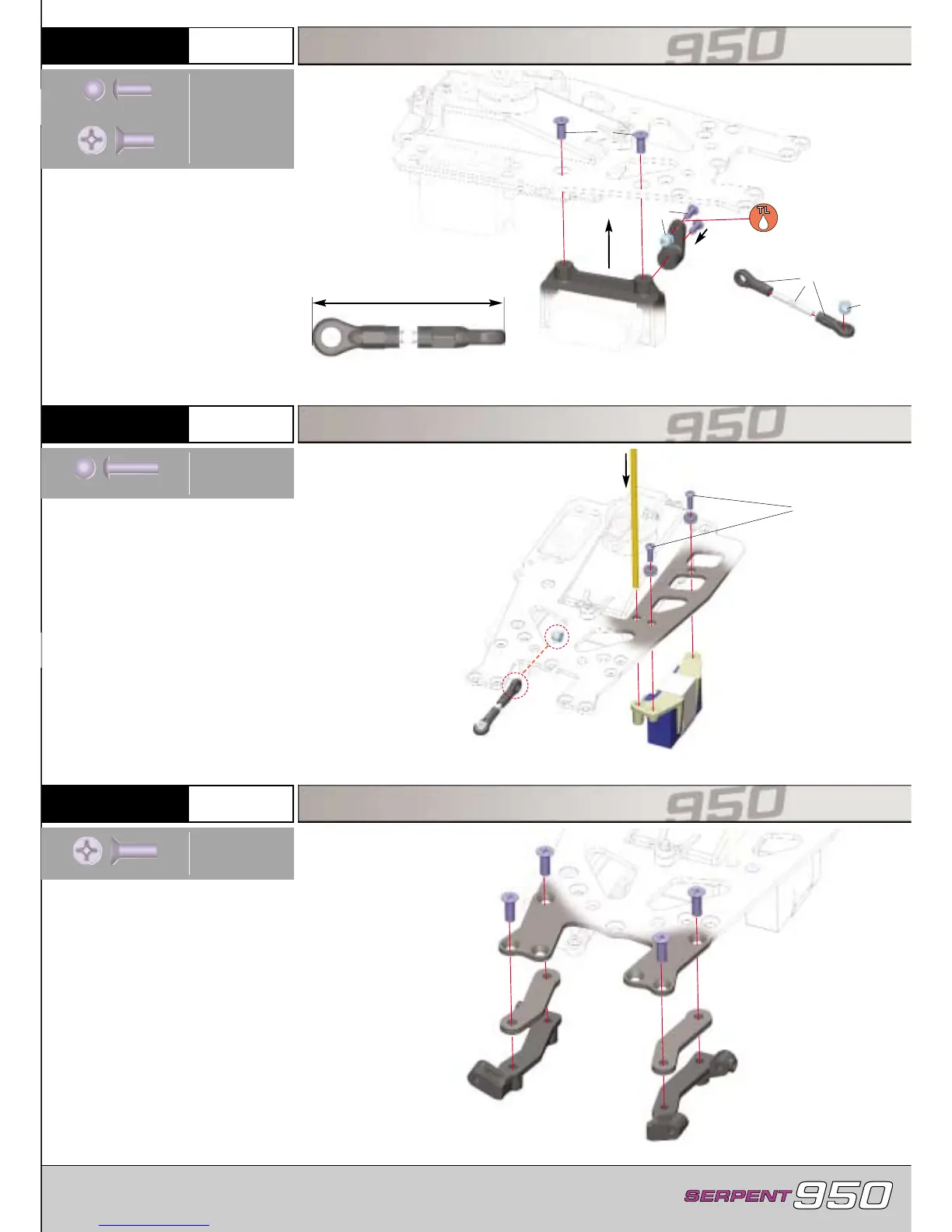

Step 4.3
Bag 21
Radio Plate Assembly
E11
3x8mm
G19
M4x10mm
Step 4.4
Radio Plate Assembly
E13
3x12mm
Step 4.5
Bag 22
Radio Plate Assembly
G20
M4x12mm
1
2
3
4
5
2
1
3
46.5mm
1:1
On the servo arm is a number that
corresponds to the amount of teeth.
23 - Sanwa / KO / JR
24 - Hitec
25 - Futaba
