Serpent 950 - Radio Plate Assembly

14

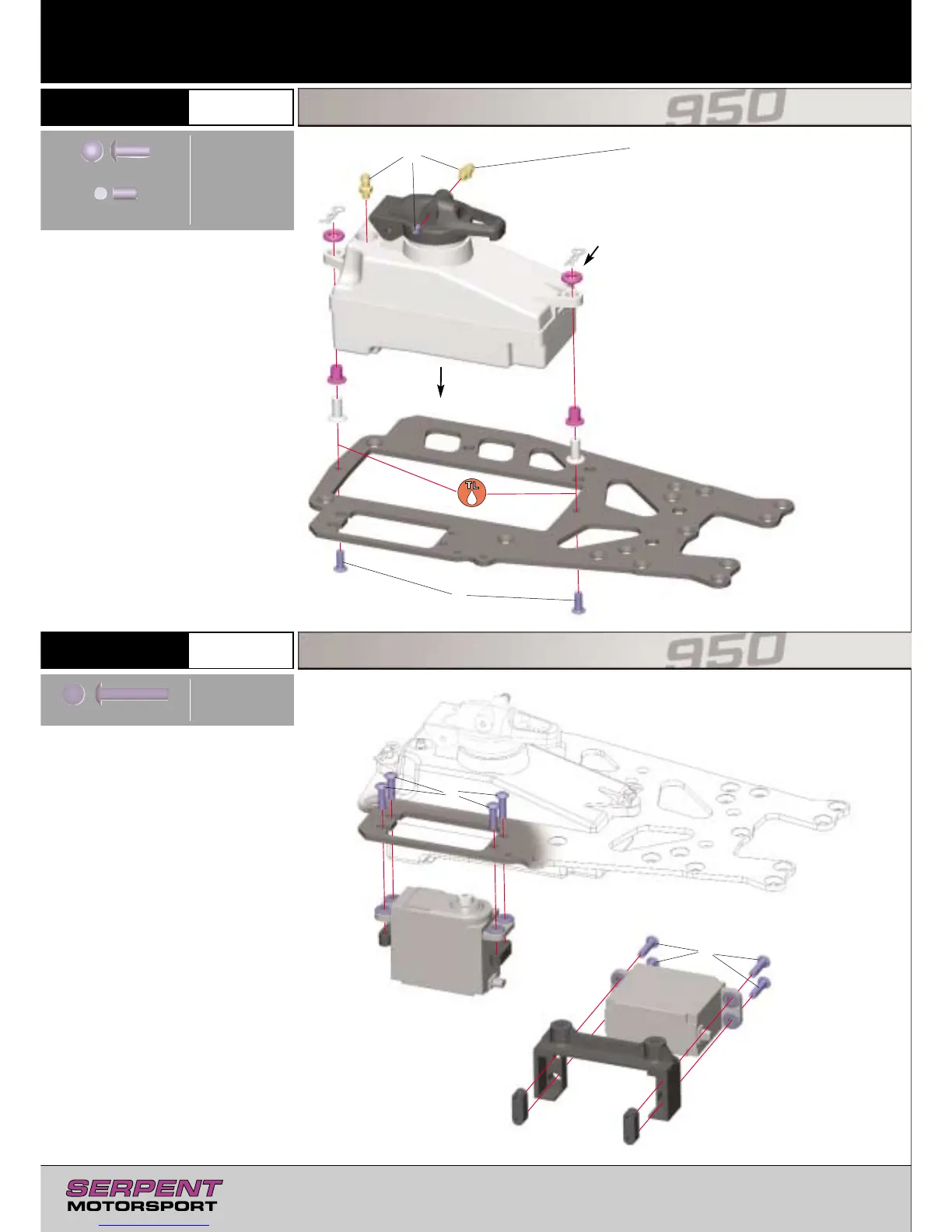

Step 4.1
Bag 19,20
Radio Plate Assembly
E11
3x8mm
H9
3x4mm
Step 4.2
Radio Plate Assembly
E135
3x14mm
4.0 Radio Plate Assembly
1
2
3
4
1
2
Note. For clockwise circuits with mostly
right hand corners the fuel tank lid nipple
should be placed on the right side of the
lid and the grubscrew on the opposite
side. The opposite is true for anti clokwise
tracks with mostly left hand corners.
