Serpent 950 - Shock Assembly

4

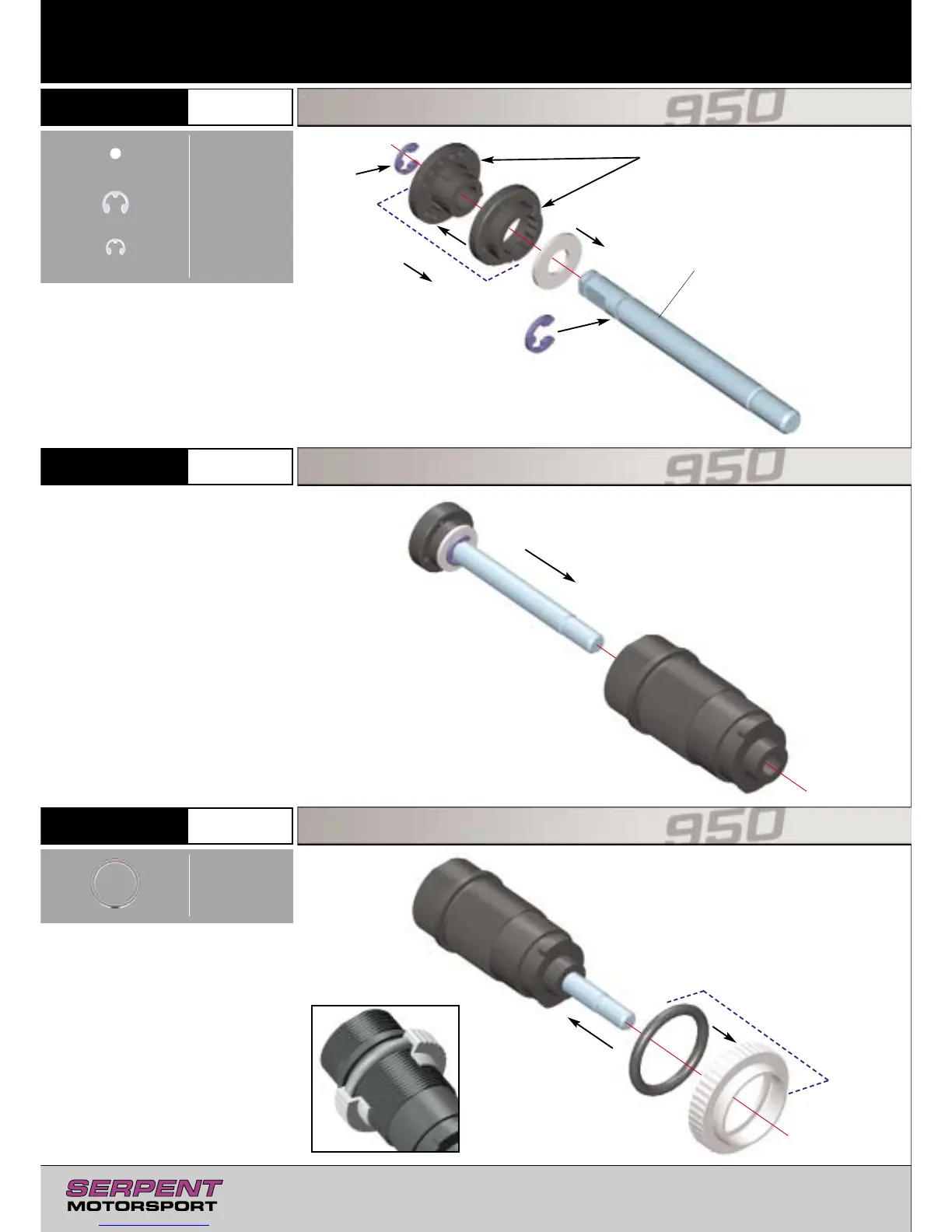

Step 1.1
Bag 01
Shock Assembly
N3
3x6x0.3mm
R2
2.3mm
R1
1.9mm
Step 1.2
Shock Assembly
Step 1.3
Shock Assembly
Y17
12.1x1.6mm
1.0 Shock Assembly
1
2
4
1
2
3
Long shock shaft goes into
long shock body (rear)
Remove plastic flashing for
smooth movement of pistons
