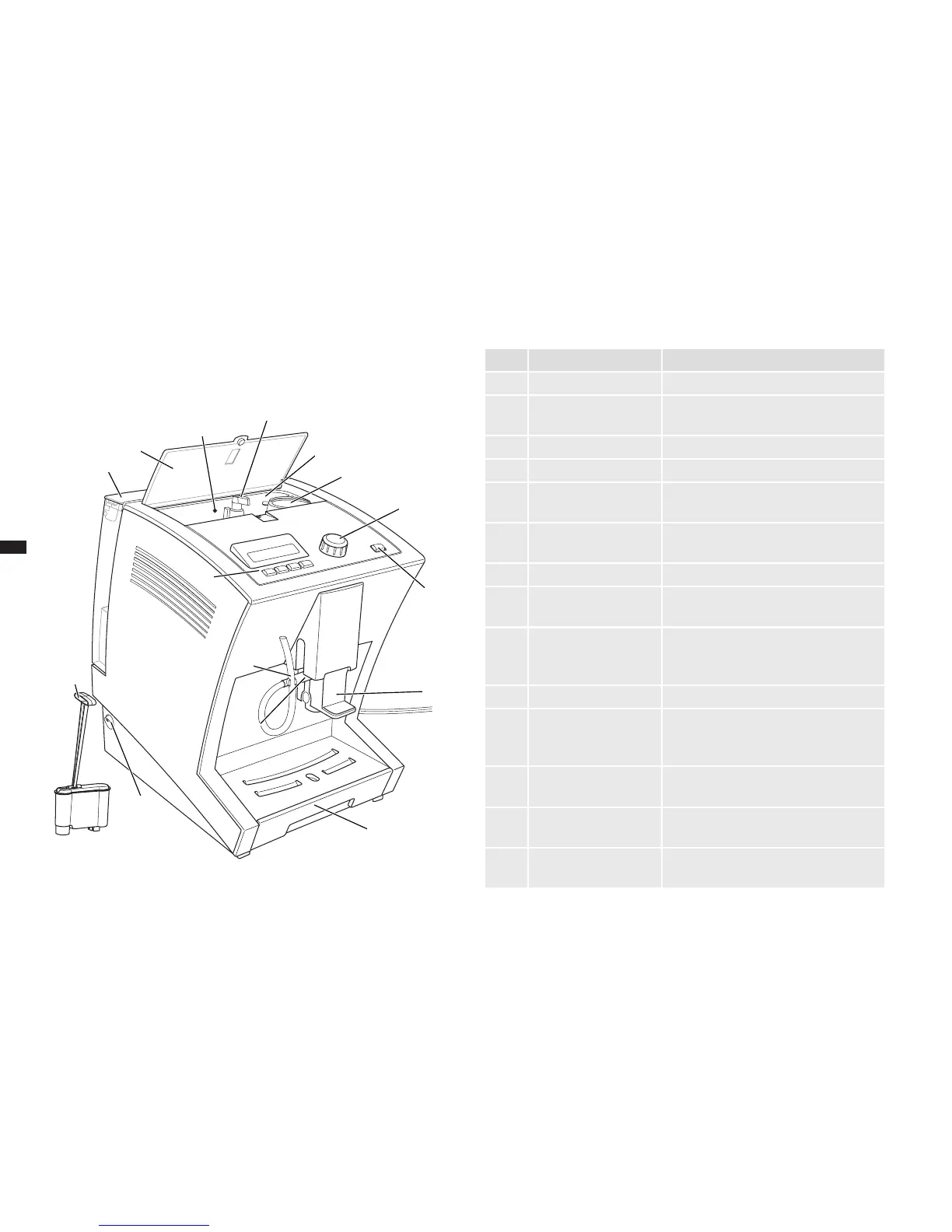

g. 1: Device overview
Item Designation Explanations
1 On/off switch
2 Water lter with inser-
tion aid
To improve the water quality.
3 Water tank For adding drinking water.
4 Bean container cover
5 Bean container signal
lamp
Lights up if the supply of beans is get-
ting too low.
6 Grind regulator For adjusting the grinding of the coffee
variety.
7 Bean container For adding unground beans.
8 Powder dosing
chamber
For adding a cup portion of coffee
powder (e.g.decaffeinated coffee).
9 Rotary selection switch
e-Select
For selecting a coffee speciality and for
selecting menu options and settings on
the menu.
10 Menu button To call up and exit the menu.
11 Coffee-milk dispenser
with height adjustment
The coffee-milk dispenser can be ad-
justed to the height of the container (cup/
glass) below using the handle.
12 Drip tray with cup tray
and grounds container
For catching water and coffee grounds.
13 Connection for milk
tube
For drawing milk for coffee specialities
with milk (e.g. cappuccino).
14 Milk tube with bracket The milk tube can be hung on the
bracket.
