23.1.7 82 MHz and Displayed Frequencies Relationship
Note: This test will show the band position of the 82 MHz filter used by the
first intermediate frequency. It is not intended as a routine testing
procedure but could help in troubleshooting

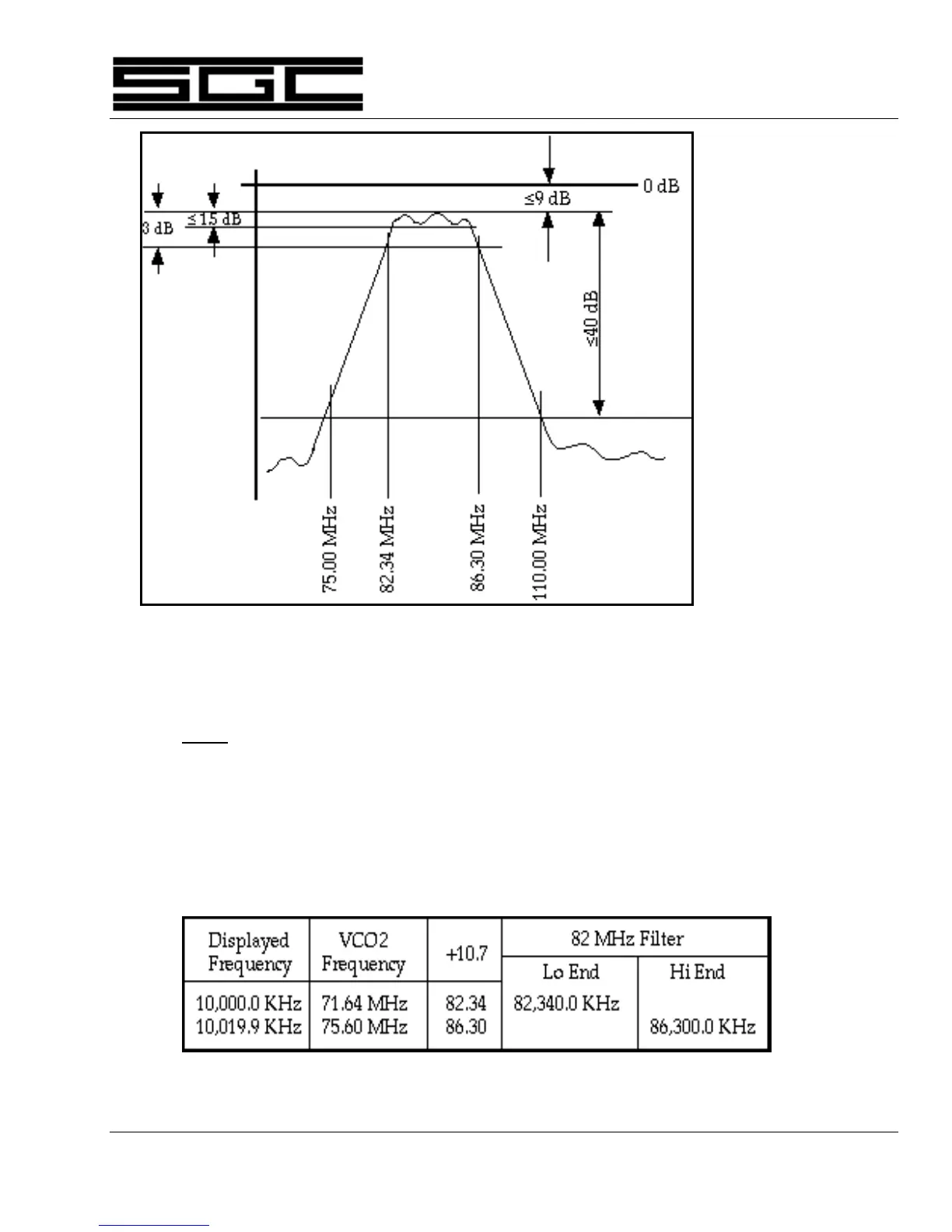

Connect the Spectrum Analyzer to the second mixer, pin 8 (VCO 2 input)
Check for the following values:
