9.0 Installation
Your SG-2000/PRC-2250-MIL will provide superior communications under all
conditions if you take the time to plan and install the radio equipment for maximum
performance. Please read this section very carefully and implement as many of the
suggestions as possible to assure a trouble free installation, a superior transmit signal,
and clear reception.
This section of the manual will cover:
• General installation information and pin outs
• Control head installation and remote kits
• General comments on power supplies and antennas
• Specific mobile installation notes
• Specific marine installation suggestions

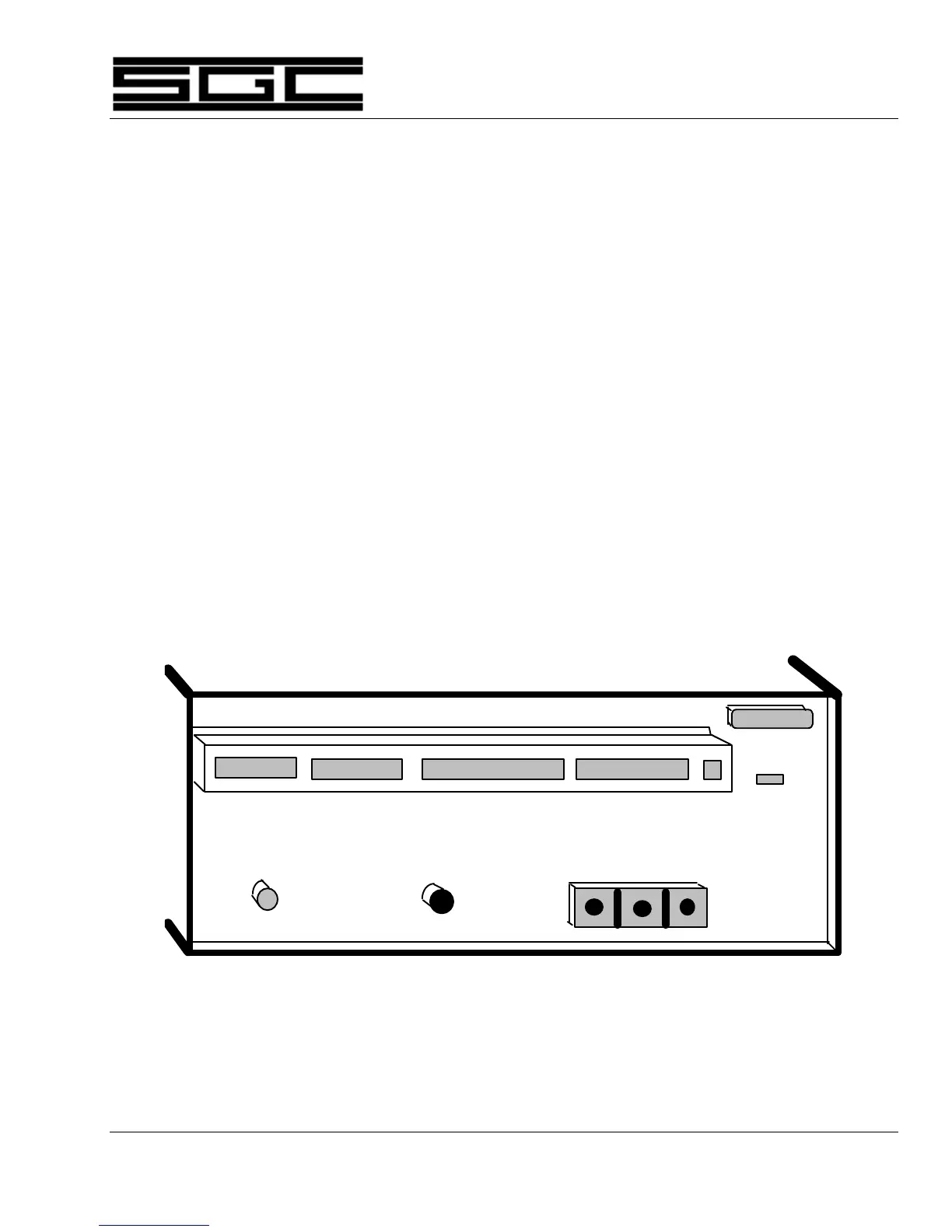

9.1 SG-2000 Rear Panel Connections
Protective cover secured by Philips head screws
RS-232
RF Output
J-502 J-301 J-503 J-504 Ext Spk Oven
RF Ground
+ -GND
Please note that your SG-2000 is shipped with all necessary connectors for the addition
of one of our Smartuner™ couplers and for installation of peripherals via the audio
input/output jack on the rear panel. You will see the connectors when you loosen the
Philips head screws which hold the protective sheet metal cover over the rear panel
connectors and remove the cover.
