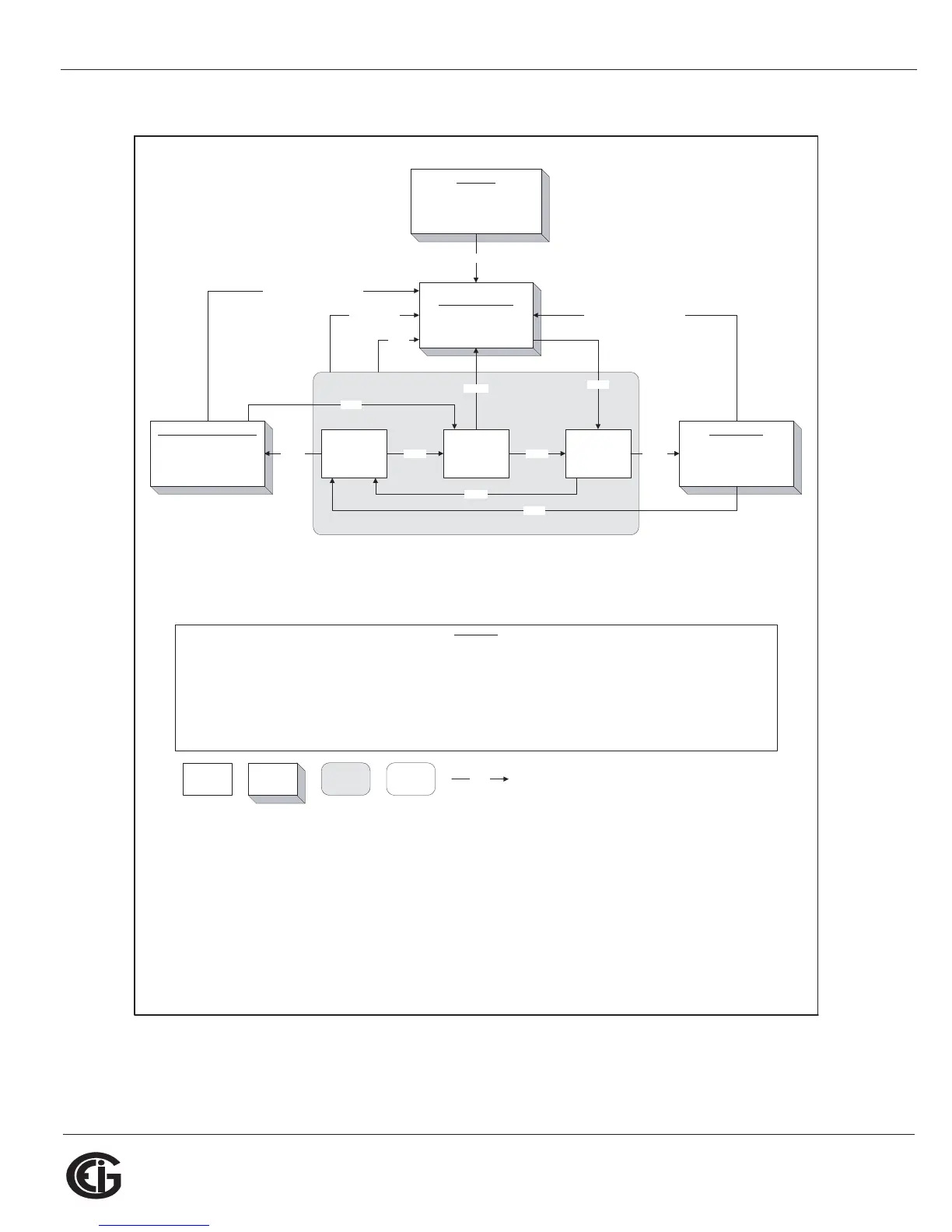

MAIN MENU Screen
MAIN MENU:
RST (blinking)
CFG
OPR
ENTERDOWN DOWN
MAIN MENU screen scrolls through 3 choices, showing
all 3 at once. The top choice is always the "active" one,
which is indicated by blinking the legend.
MAIN MENU:
CFG (blinking)
OPR
RST
MAIN MENU:
OPR (blinking)
RST
CFG
CONFIGURATION MODE*
grid of meter settings screens
with password-protected edit
capability.
See sheet 4
ENTER
OPERATING MODE
grid of meter data screens.
See sheet 2
ENTER
STARTUP
sequence run once at meter startup:
2 lamp test screens, hardware
information screen, firmware version
screen, error screen (conditional)
sequence completed
RESET MODE
sequence of screens to get
password, if required, and reset
meter data.
See sheet 3
single
screen
all screens
for a display
mode
button
group of
screens
MENU
ENTER
DOWN, RIGHT
Navigation:
Editing:
Returns to previous menu from any screen in any mode
Indicates acceptance of the current screen and advances to the next one
Navigation and edit buttons
No digits or legends are blinking. On a menu, down advances to the next menu selection, right does nothing. In a grid of
screens, down advances to the next row, right advances to the next column. Rows, columns, and menus all navigate circularly.
A digit or legend is blinking to indicate that it is eligible for change. When a digit is blinking, down increases the digit value, right
moves to the next digit. When a legend is blinking, either button advances to the next choice legend.
action taken
BUTTONS
MENU
DOWN
MENU
MENU
10 minutes with no user activity
10 minutes with no user activity
MENU
10 minutes with
no user activity
* Configuration Mode is
not available during a
Programmable Settings
update via a COM port.
To Next Page
