Preparation

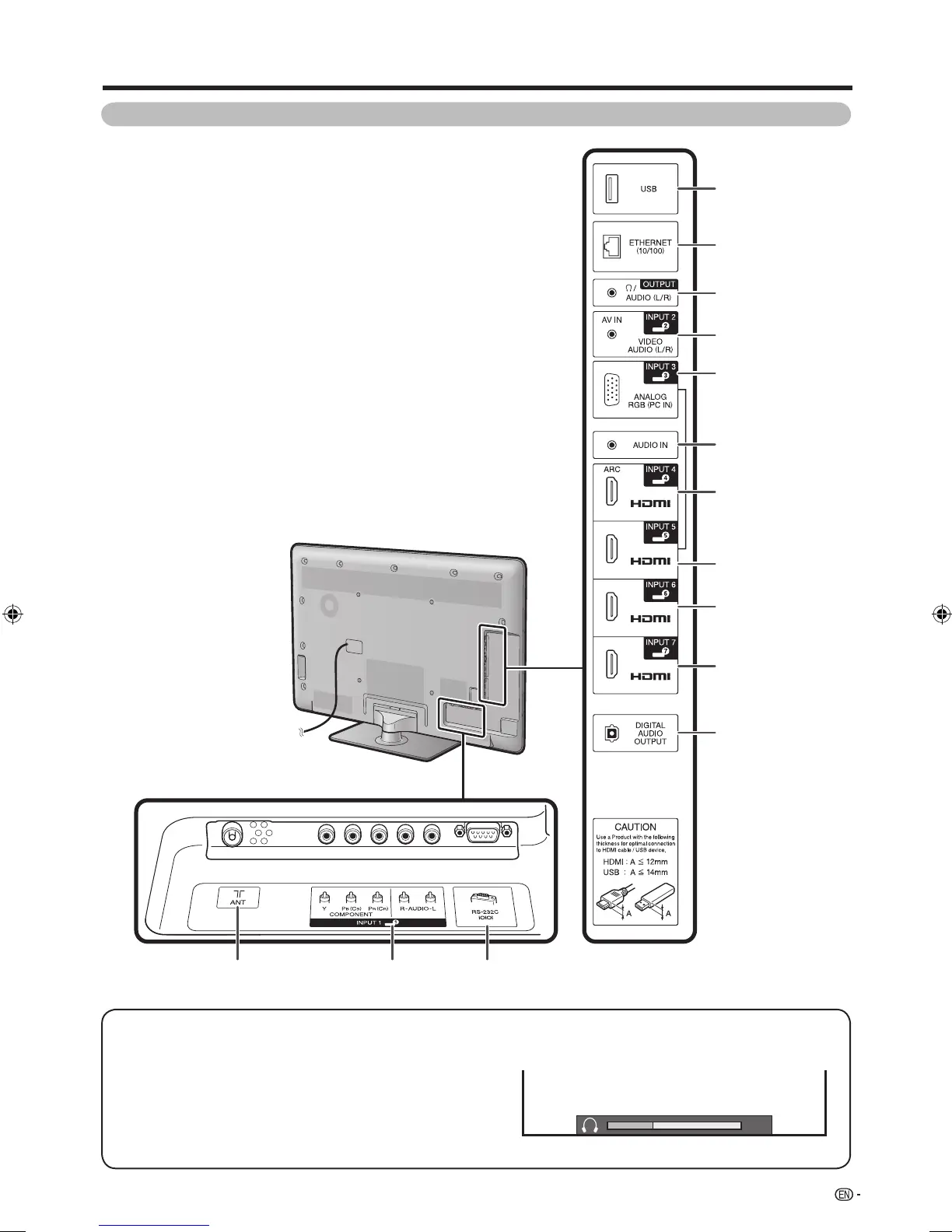

TV (Rear)
RS-232C terminal
INPUT5
(HDMI)
terminal
INPUT2 terminal
INPUT1 terminals
ANT (Antenna input) terminal
Regarding the headphone jack
• Use headphones with a stereo mini plug (Ø 3.5 mm).
• Be sure to unplug headphones from the jack when they are not
in use.
• The speakers do not output volume when headphones are
plugged in.
• The “Audio” menu cannot be operated when headphones are
plugged in.
• You can set the volume to different levels for each input source.
Volume display when headphones are plugged in
20
OUTPUT
(Headphones/AUDIO
(L/R)) terminal
INPUT6 (HDMI)
terminal
DIGITAL AUDIO
OUTPUT terminal
INPUT4 (HDMI/ARC)
terminal
INPUT7 (HDMI)
terminal
INPUT3 (PC input)
terminal
USB terminal
ETHERNET (10/100)
terminal
AUDIO IN terminal*
* The AUDIO IN terminal can use the
same audio input terminal (INPUT3/5
(HDMI)). However, the proper item must
be selected in the “Audio select” menu.
(See pages 40 and 44 for details.)
