AR-5520 EXTERNAL VIEWS AND INTERNAL STRUCTURES 5-1

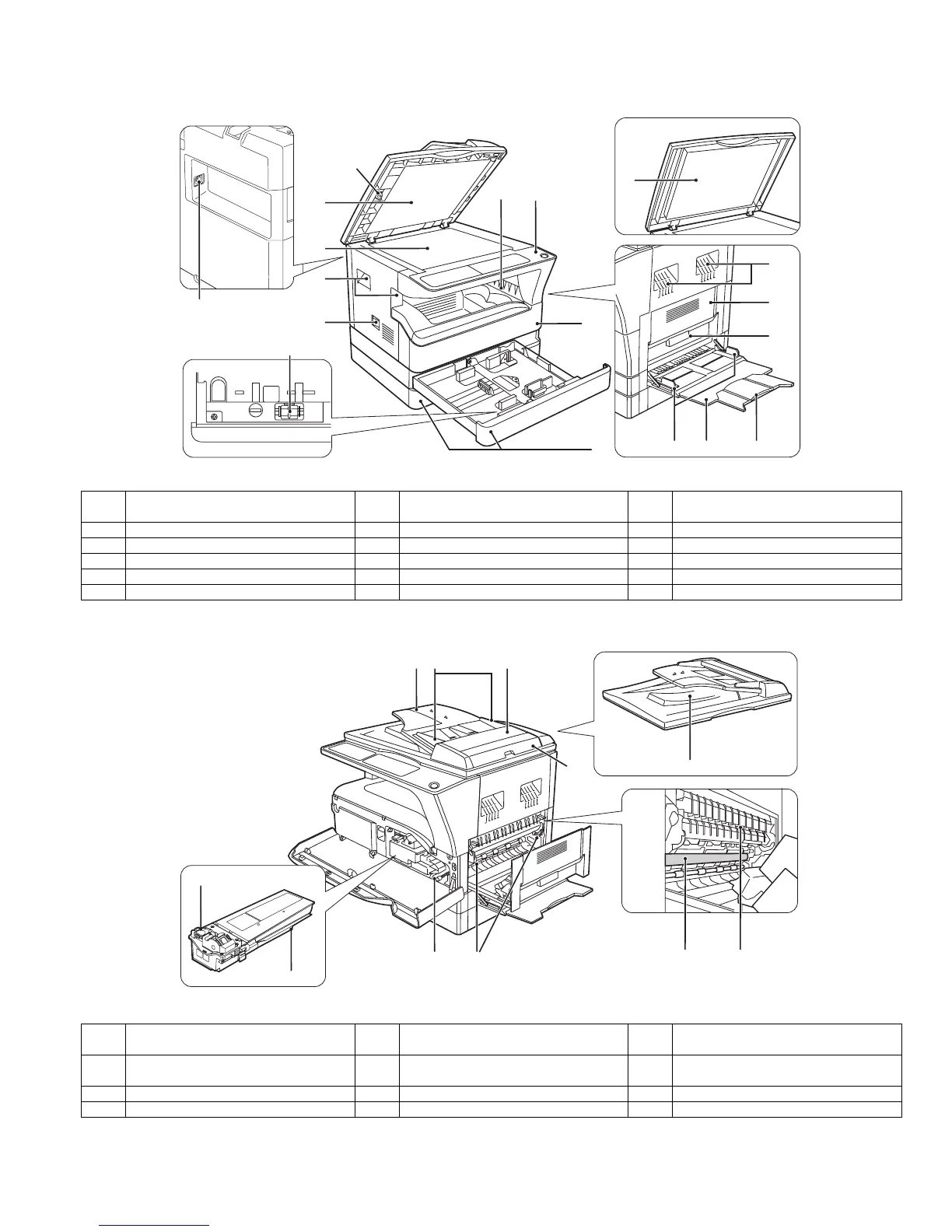

[5] EXTERNAL VIEWS AND INTERNAL STRUCTURES
1. Appearance
2. Internal
1 Glass cleaner
(when the SPF/RSPF is installed)
2 Document feeder cover (when the SPF/
RSPF is installed) /document cover
3 Document glass
4 Handles 5 Power switch 6 Operation panel
7 Paper output tray 8 Front cover 9 Paper trays
10 Side cover 11 Side cover handle 12 Bypass tray guides
13 Bypass tray 14 Bypass tray extension 15 Charger cleaner
16 USB 2.0 connector
17 Document feeder tray
(when the SPF/RSPF is installed)
18 Original guides
(when the SPF/RSPF is installed)
19 Feeding roller cover
(when the SPF/RSPF is installed)
20 Right side cover
(when the SPF/RSPF is installed)
21 Exit area
(when the SPF/RSPF is installed)
22 Toner cartridge lock release lever
23 Toner cartridge 24 Roller rotating knob 25 Fusing unit release levers
26 Photoconductive drum 27 Fusing unit paper guide
15
16
9
6
7
8
2
3
5
4
1
13 14
10
11
12
4
2
1917
22
23
21
20
24 25
18
2726
