Sharp AR-5520

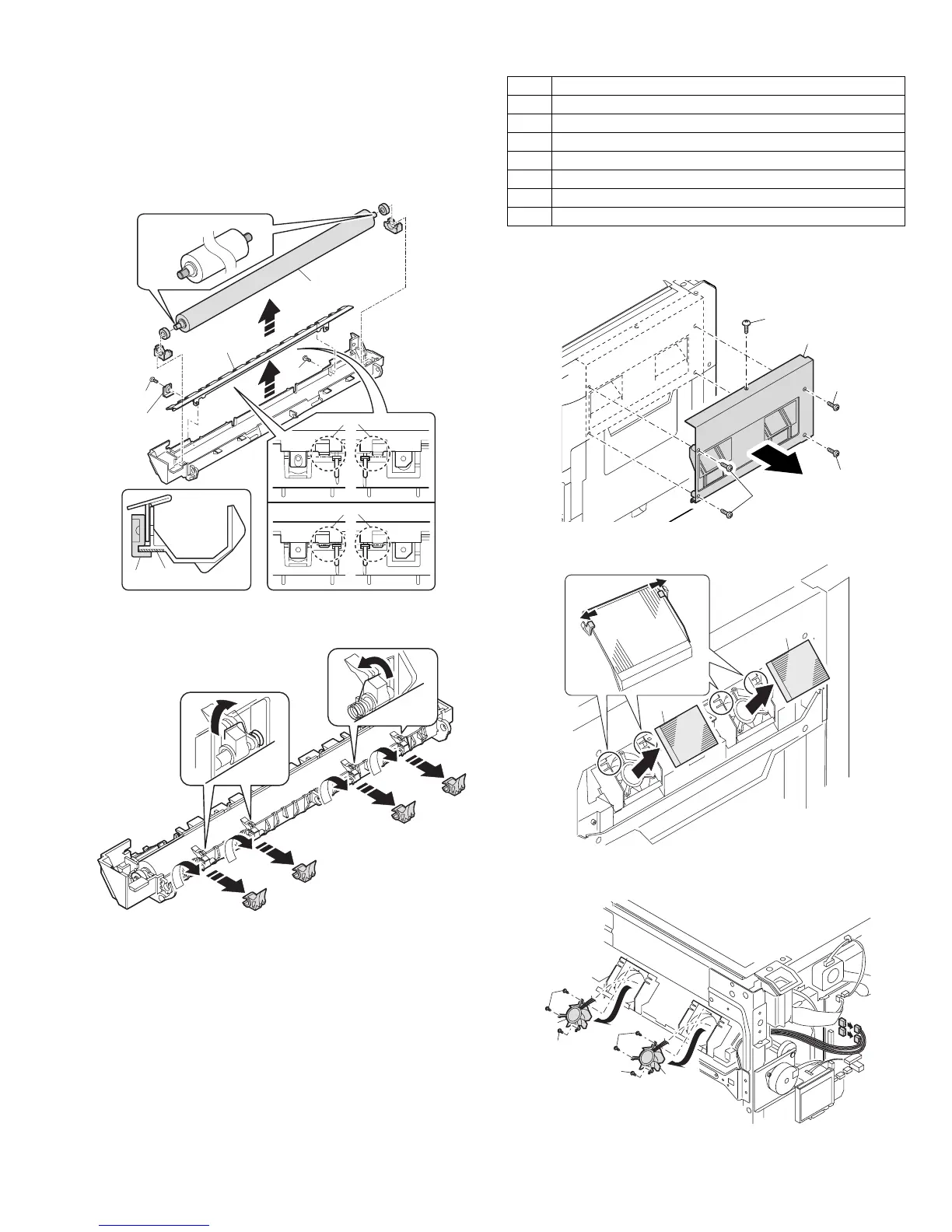

AR-5520 DISASSEMBLY AND ASSEMBLY 11-6
G.Lower heat roller
Assembly: When installing the paper guide (3) before fusing, fix the
paper guide fixing plate with screws temporarily so that the
paper guide fixing plate (2) is in contact with the frame
bottom under fusing (A). Set the paper guide (3) before
fusing to the bottom line of the positioning reference (B),
and tighten the screw firmly.
H.Separation pawl
4.Paper exit section
A.Ozone filter
B.Cooling fan
(1)
(1)
(3)
(2)
(2)
(A)
(4)
Grease
(JFE552)
(B)
(B)
100V
200V
No. Content
A Ozone filter
B Cooling fan
C Paper exit unit
D Paper exit sensor / duplex sensor
E Transport roller
F Paper exit roller
G Paper exit interface P.W.B.
(1)
(1)
(2)
(1)
(1)
(1)
(1)
(2)
(2)
(2)
(2)
(2)
(3)
(3)
(2)
