AR-5520 DISASSEMBLY AND ASSEMBLY 11-18

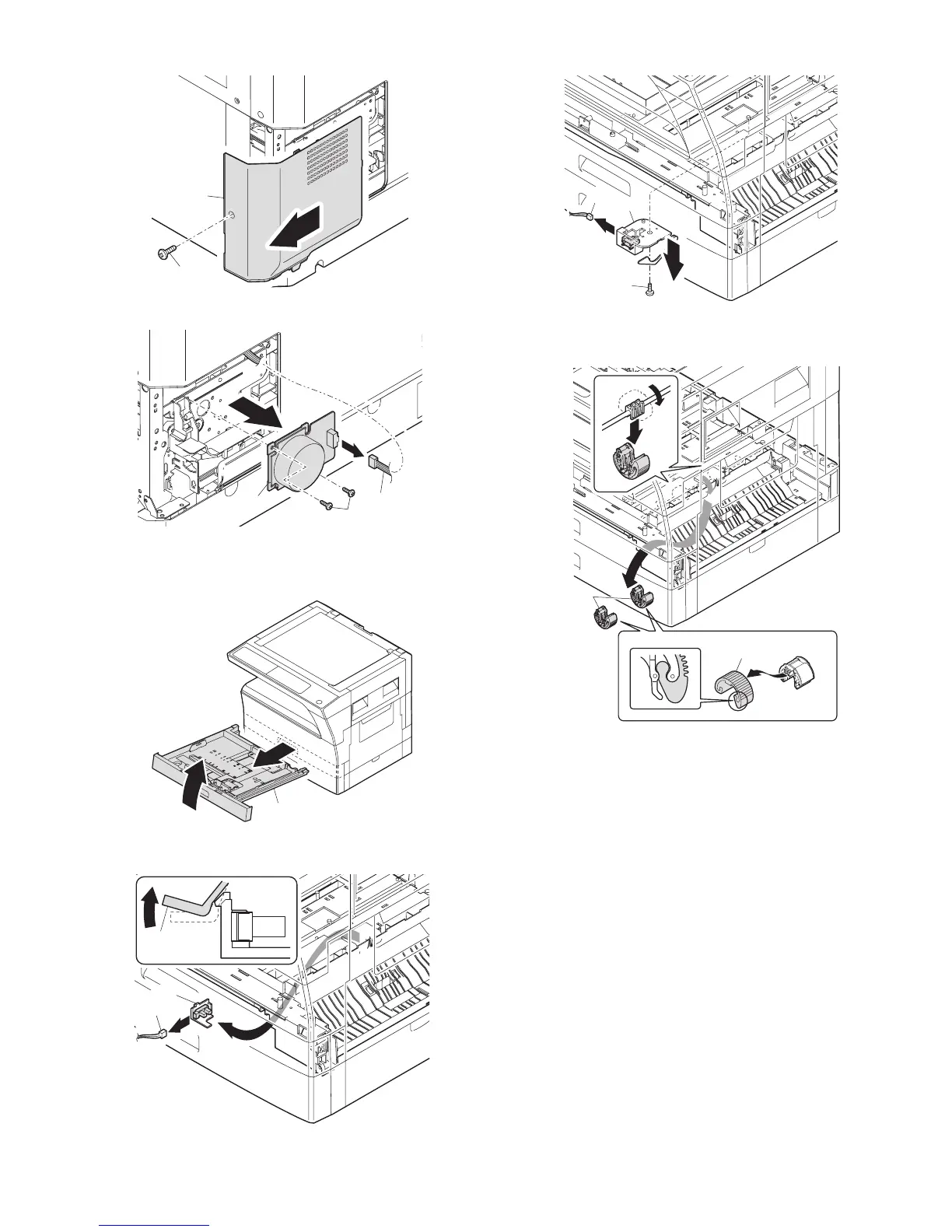

I. Main motor
J. Paper entry sensor
K. Paper empty sensor
L. Paper feed roller
* When removing the paper feed roller, operate the paper feed clutch
with SIM 6-1, and keep the paper feed roller down as shown in the
figure above for operation.
(1)
(2)
(1)
(2)
(3)
(1)
(1)
(2)
(3)
(1)
(2)
(3)
(1)
(2)
