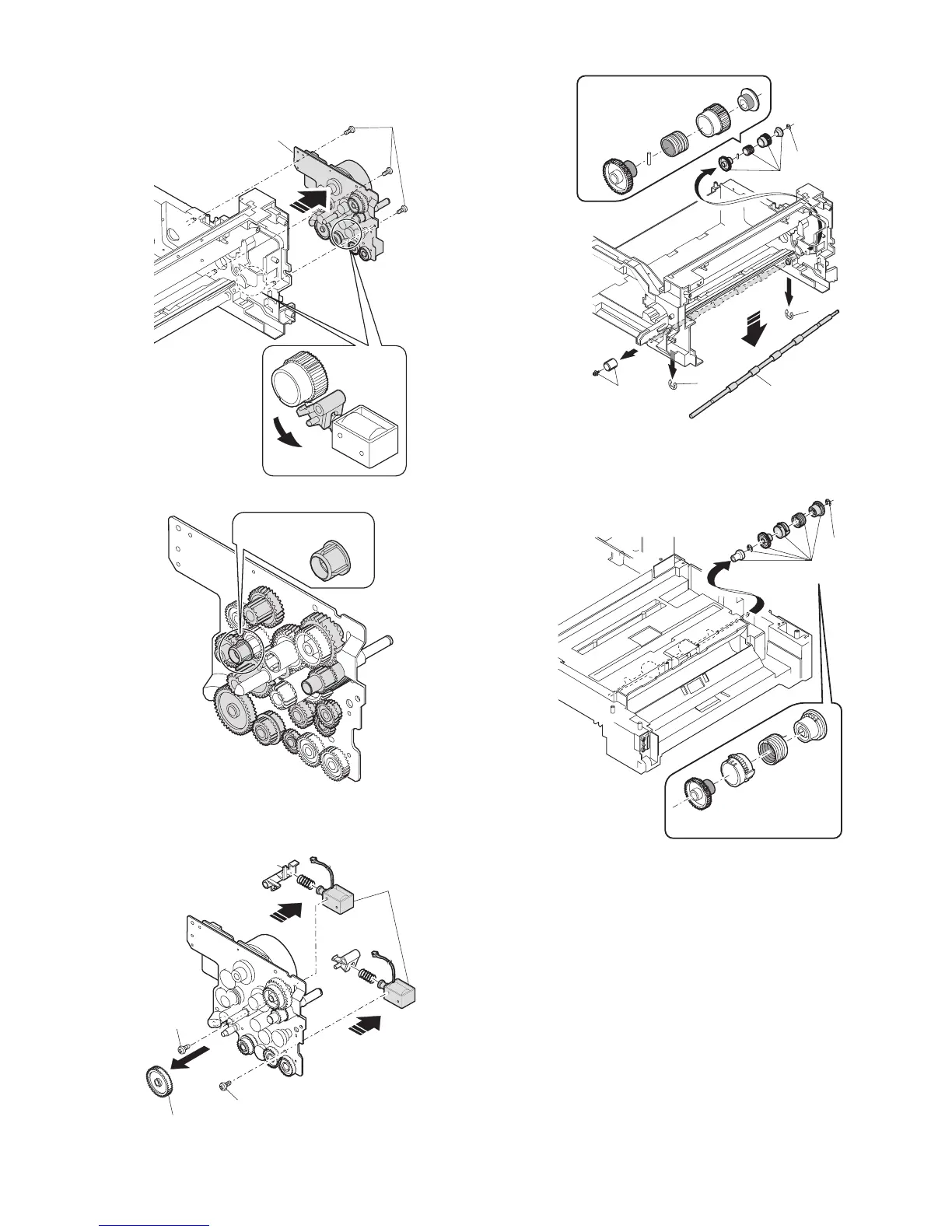

AR-5520 DISASSEMBLY AND ASSEMBLY 11-10
B.Drive unit
Assembly: Move down the clutch pawl as shown below, and avoid the
clutch and install.
C. Solenoid
(paper feed solenoid, resist roller solenoid)
D. Resist roller clutch/Resist roller
E. Paper feed clutch/Paper feed roller
(Semi-circular roller)
(1)
(2)
Grease G-484
Moricote X56020
(1)
(2)
(2)
(3)
(1)
(2)
(3)
(3)
(3)
(4)
Apply grease (FG-40H)
to the gray area
(UKOG-0004QSZZ).
(1)
(2)
Apply grease (FG-40H)
to the gray area
(UKOG-0004QSZZ).
