Sharp AR-5520D - Developing Section

AR-5520 DISASSEMBLY AND ASSEMBLY 11-14

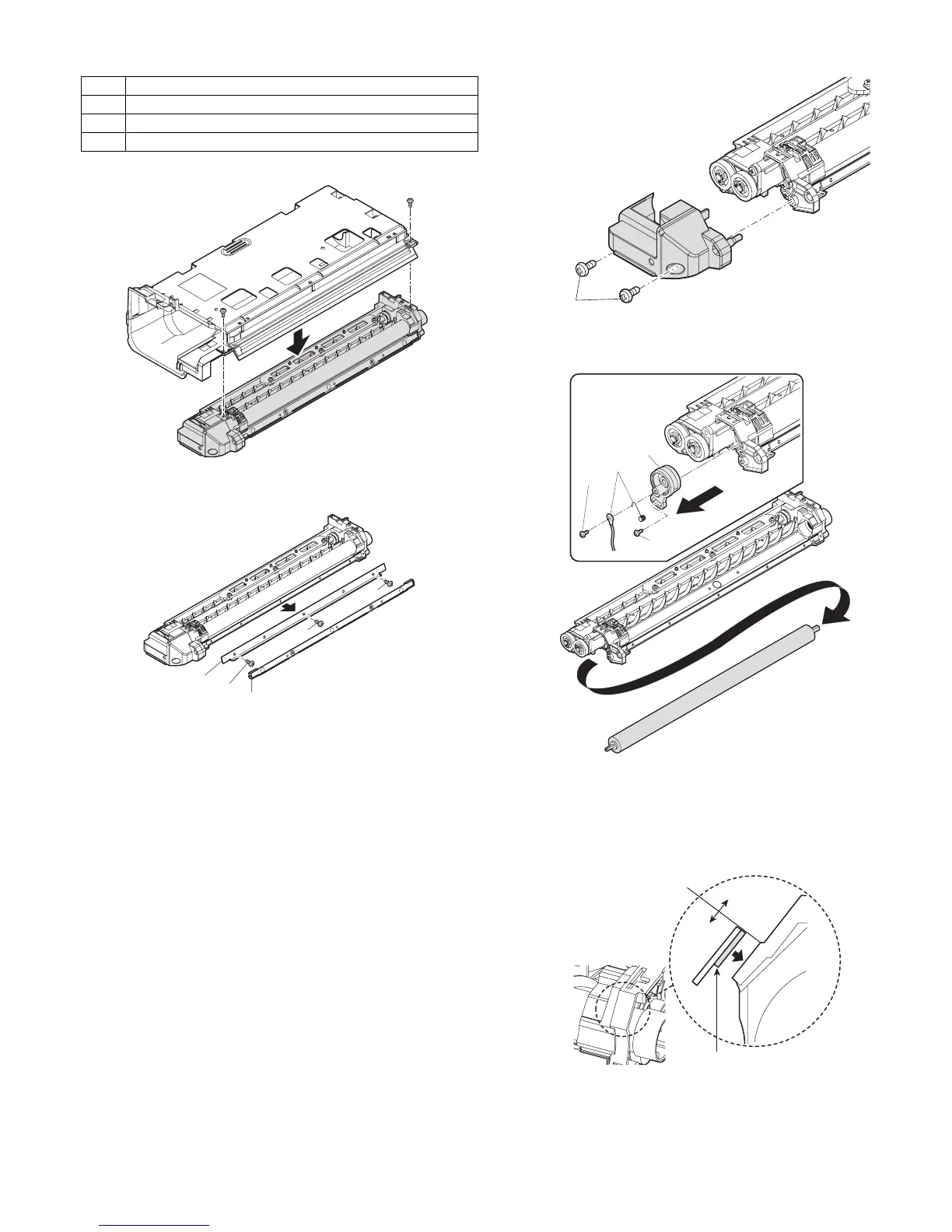

11.Developing section
A.Developing box
B.Developing doctor
Adjustment: Developing doctor gap adjustment
C.MG roller
Adjustment: MG roller main pole position adjustment
Note:Attach it to fit with the attachment reference when replacing the DV
blade.
No. Contents
A Developing box
B Developing doctor
C MG roller
(1)
(2)
(2)
(2)
(3)
(1)
(5)
(4)
(3)
(3)
0
Attaching
reference
DV blade
0.5
