AR-5520 DISASSEMBLY AND ASSEMBLY 11-17

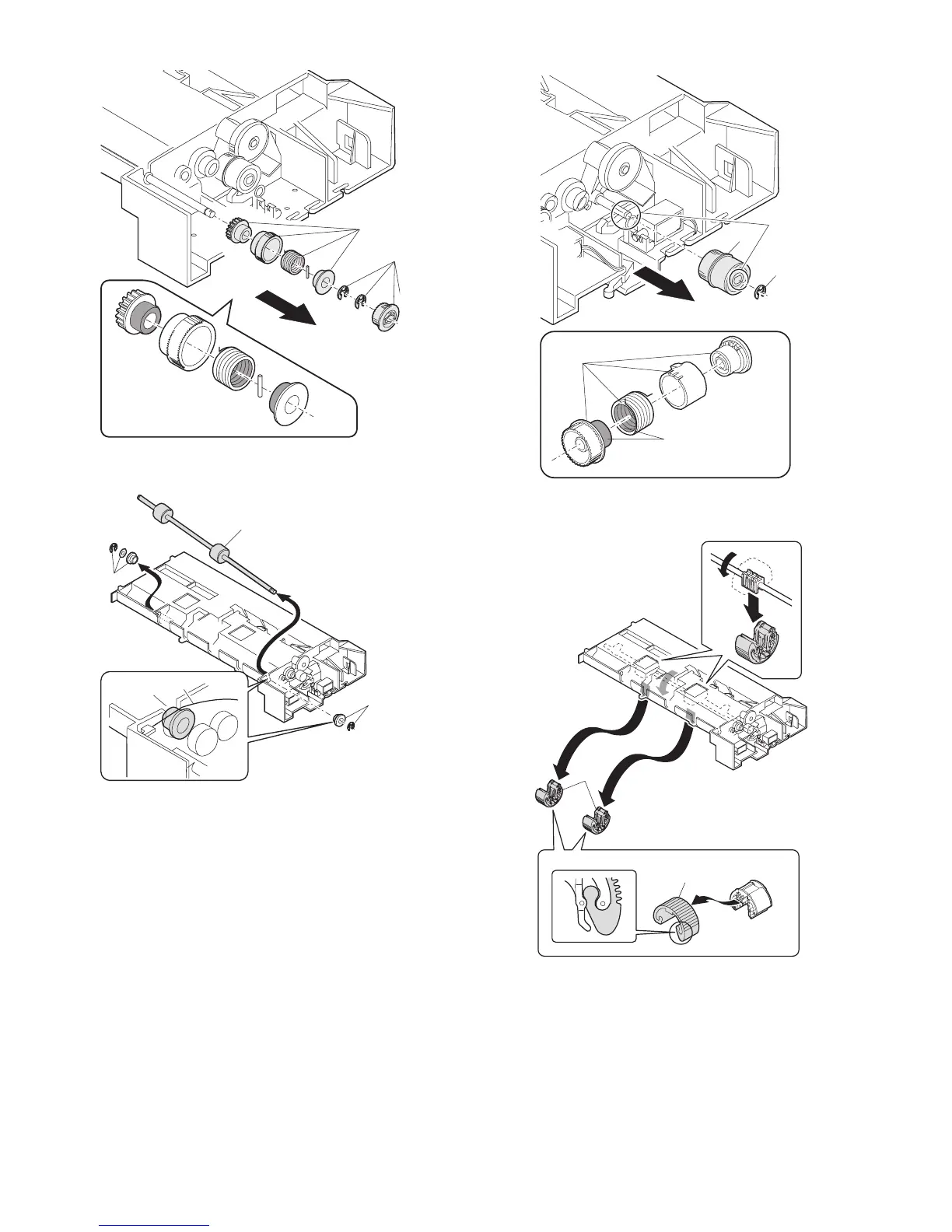

E.2nd tray transport clutch
F. 2nd tray transport roller
G. 2nd tray paper feed clutch
H. 2nd tray paper feed roller
(2)
(1
Apply grease (FG-40H)
to the gray area
(UKOG-0004QSZZ).
(1)
(1)
(2)
A
B
(3)
A
(1)
(2)
Apply grease (FG-40H)
to the gray area
(UKOG-0004QSZZ).
(1)
(2)
