HDMI Connection (ARC Supported)

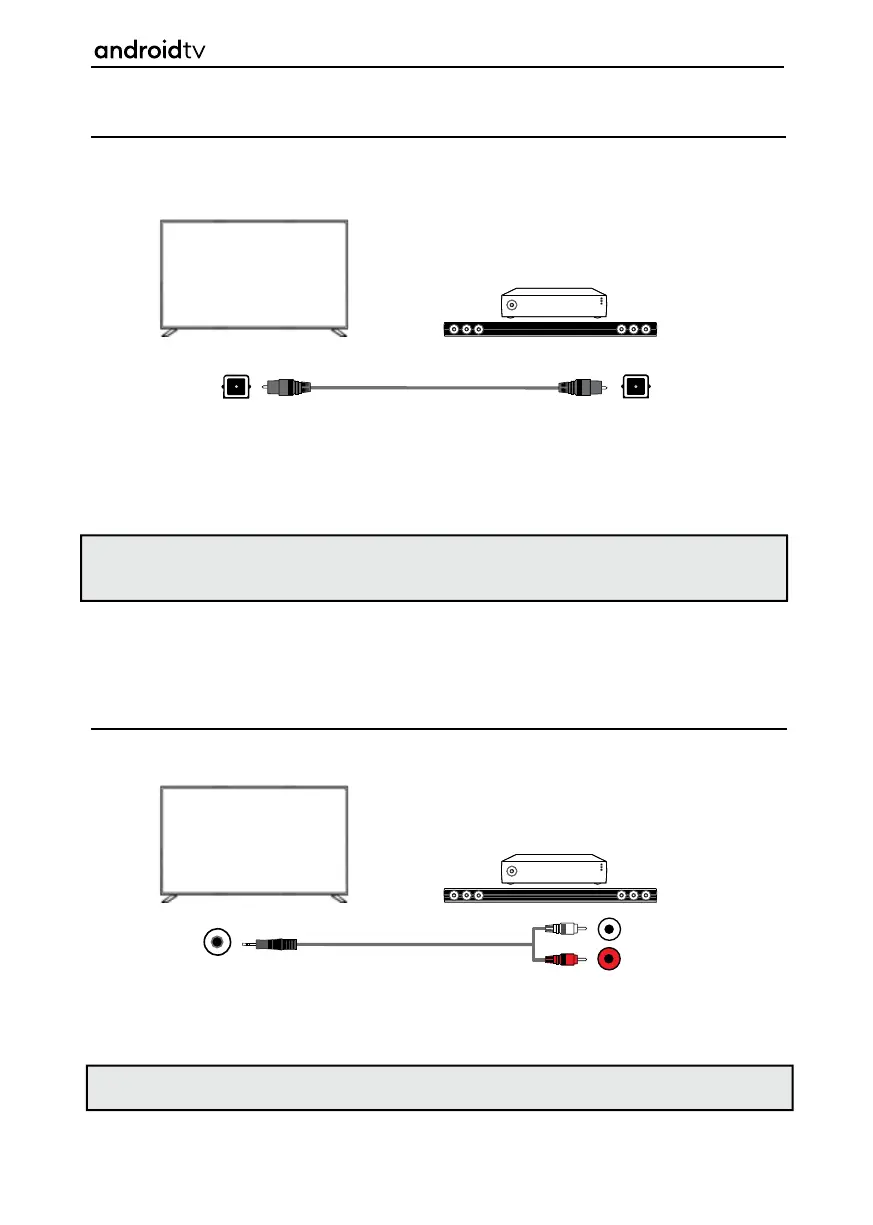

Connecting your television and audio system with a digital optical cable.
Connect to the audio system digital optical input terminal.
(A)
(B)
Digital Audio Out
Optical
Digital Audio In
Optical
(A)
(B)
AV Receiver or Soundbar
Audio Optical cable (not supplied)
If there is no output on the digital optical output, ensure that the digital output is set to PCM.
set Settings > Device Preferences > Sound > Digital Output to PCM.
The digital optical output is always present whatever source is selected.
RCA Analogue Audio Cable
Connect to the audio system’s audio input terminal.
(A)
L
R
Audio L/R
Earphone
(B)
(A)
(B)
AV Receiver or Soundbar
Audio cable (not supplied)*
Getting Started
Note: When connected via the digital optical output, it is necessary to turn off the sets internal
speakers to prevent any echo effects. To do this go to Speakers >- External Audio System and
turn this on. This will disable the sets internal speakers.
Note: The output audio level is dependent upon the headphone level. The volume level on the connected
audio system must be turned up.
