– 15 –
CD-BA3100
TEST MODE
During POWER OFF mode, push below each 2 keys and [POWER] key. Then go to each Test Mode.
KEY TEST MODE CONTENTS
[CD] [X-BASS] + [POWER] TEST 1 CD Test mode
[TAPE] [X-BASS] + [POWER] TEST 2 Tape test mode
[TUNER] [X-BASS] + [POWER] TEST 3 Tuner preset memory clear
[VIDEO/AUX] [X-BASS] + [POWER] TEST 4 Tuner preset for production
[MEMORY/SET] [X-BASS] + [POWER] TEST 5 All clear (reset)
[EQUALIZER] [X-BASS] + [POWER] TEST 6 Audio test
[ ] [DIMMER] + [POWER] TEST 7 Key and display test
[TUN UP] [DIMMER] + [POWER] TEST 8 RDS Test1
[TUN DOWN] [DIMMER] + [POWER] TEST 9 RDS Test2
[ ] [CD] + [POWER] TEST 10 CD Changer test
[ ] [CD] + [POWER] TEST 11 Production initialize for changer
[EQUALIZER] [TUN UP] + [POWER] TEST 12 Graphic equalizer test

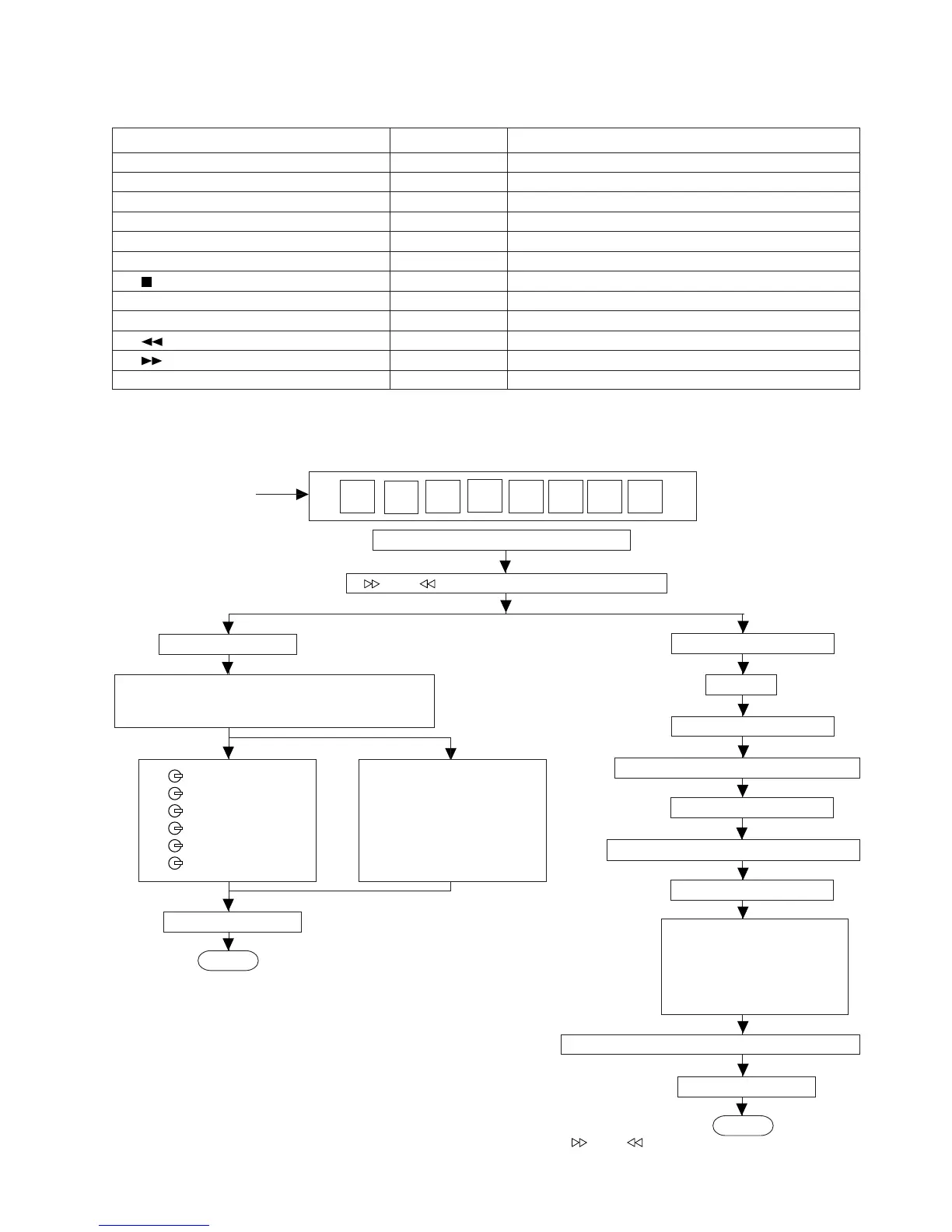

CD TEST MODE
· Setting the test mode
Any one of test mode can be set by pressing several keys as follows.
<X-BASS> + <CD> + <POWER> TEST: CD operation test
Enter test 1 mode key.
C D T E S T
OPEN/CLOSE operation is using manual.
Do TOC IL. Do normal play.
When these following key is input into PLAY key,
track number can be appoint directly.
<<PLAY>> key input.
<<MEMORY>> key input.
Laser ON.
<<MEMORY>> key input.
Tracking OFF play at that specific point.
<<MEMORY>> key input.
<< 1>> key: Track 1
<< 2>> key: Track 3
<< 3>> key: Track 7
<<
4>> key: Track 11
<< 5>> key: Track 13
<< 6>> key: Track 15
Tracking ON play from that specific point.
<<MEMORY>> key input
a) Display "FOFF_XX"
b) Display "TOFF_XX"
c) Display "TBAL_XX"
d) Display "TGAN_XX"
e) Display "FGAN_XX"
f) Display "RFLS_XX"
<<
>>, << >> buttons make pick's slide possible.
<<STOP>> key input.
STOP
<<MEMORY>> key input.
a) Display "FOFF_XX"
b) Display "TOFF_XX"
c) Display "TBAL_XX"
d) Display "TGAN_XX"
e) Display "FGAN_XX"
f) Display "RFLS_XX"
Display every auto setting result for every 2 sec.
<<STOP>> key input.
STOP
VOL –– Last memory
BAL –– CENTER
P.GEQ –– FLAT
X-BASS –– OFF
Sliding the PICKUP with
<<
>>, << >> button
must only be in STOP mode.
Display each step for 2 sec. XX: HEX VALUE
a) "FOFF_XX" Focus off set
b) "TOFF_XX" Tracking off set
c) "TBAL_XX" Tracking balance
d) "TGAN_XX" Tracking gain
e) "FGAN_XX" Focus gain
f ) "RFLS_XX" RF level shift
To cancel : Power OFF
