CD-BA3100
– 4 –

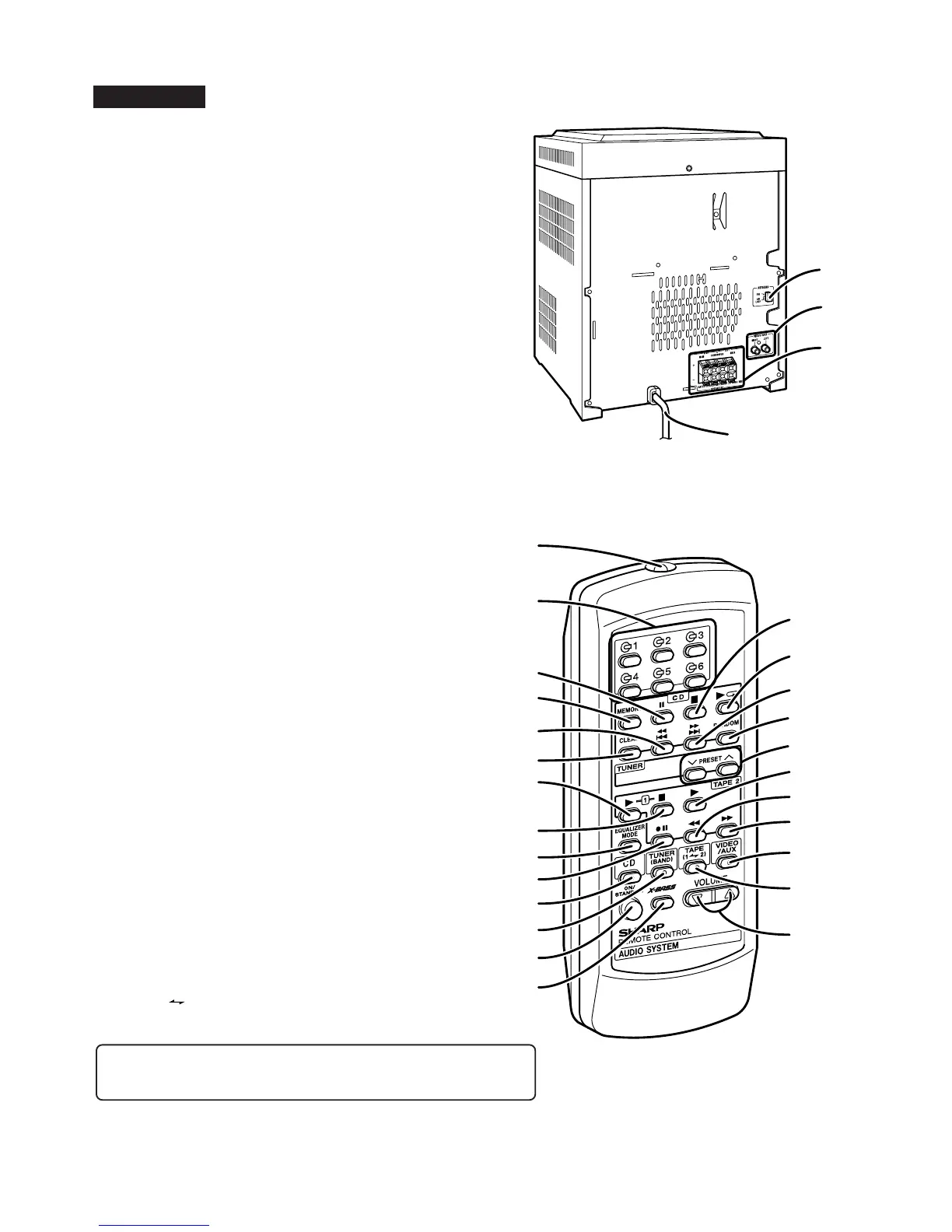

■ Remote control
01.
Remote Control Transmitter
02.
CD Direct Play Buttons
03.
CD Pause Button
04.
CD Memory Button
05.
CD Track Down or Fast Reverse Button
06.
CD Clear Button
07.
Tape 1 Play Button
08.
Tape 1/Tape 2 Stop Button
09.
Equalizer Mode Select Button
10.
Tape 2 Record Pause Button
11.
CD Button
12.
Tuner (Band) Button
13.
Power On/Stand-by Button
14.
Extra Bass Button
15.
CD Stop Button
16.
CD Play or Repeat Button
17.
CD Track Up or Fast Forward Button
18.
CD Random Button
19.
Tuner Preset Up/Down Buttons
20.
Tape 2 Play Button
21.
Tape 2 Rewind Button
22.
Tape 2 Fast Forward Button
23.
Video/Auxiliary Button
24.
Tape (1 2) Button
25.
Volume Up or Down Buttons
1
2
15
16
17
18
19
20
21
24
3
6
4
7
8
9
10
14
13
12
11
5
25
22
23
✱
✱
✱
Buttons with “✱” mark in the illustration can be operated on the remote control
only.
Other buttons can be operated both on the main unit and the remote control.
■ Rear panel
1.
FM/AM Loop Antenna Jack
2.
Video/Auxiliary (Audio Signal) Input Jacks
3.
Speaker Terminals
4.
AC Power Cord
