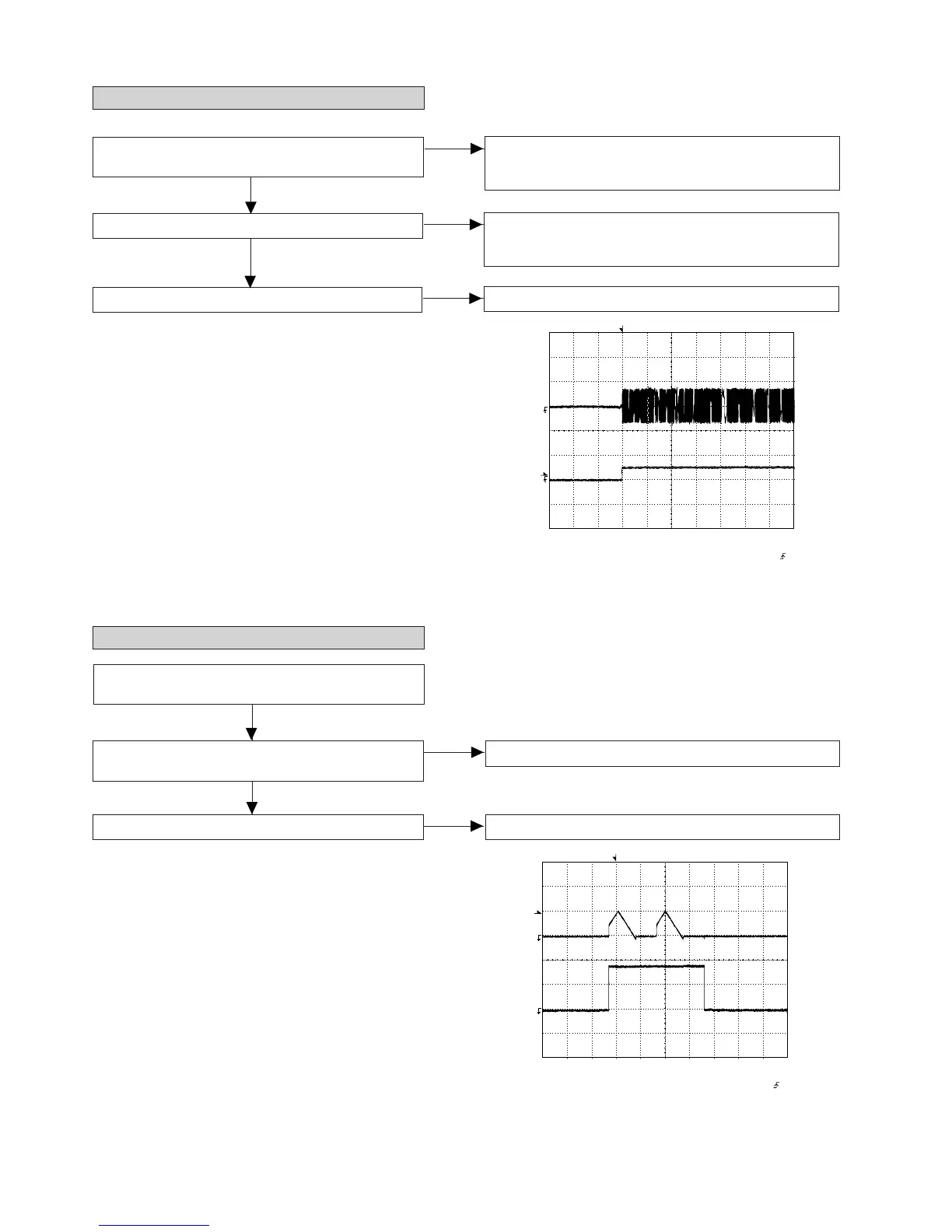

The tracking servo is not activated.
Check the peripheral circuits at pins 14, 15 and 20 on IC1, and
CNS1A/B.
If the waveform shown in Figure 50-1 appears and soon after
NO DISC appears. ?
(2) Tracking system check
Check the TE waveform at pin 15 on IC1.
A normal jump operation cannot be completed or the beginning of
the track cannot be found.
Check the around pin 20 on IC1.
"Initialization" is possible, but play is not possible. ?
Data cannot be read. Check the VCO-PLL system.
"Initialization" is not possible.
Figure 50-1
Figure 50-2
Press the Disc 1~6 switch without inserting a disc, and then
try starting the play operation.
(3) Spin system check
The spin driver circuit is OK.
1. The turntable rotates a little. ? (Waveform drawing
Figure 50-2)
Check around pin 22 on IC1, pins 26 and 27 on IC2, and CNS3A/B.
2. The turntable doesn't rotate.
No
Yes
No
Yes
Yes
No
