4

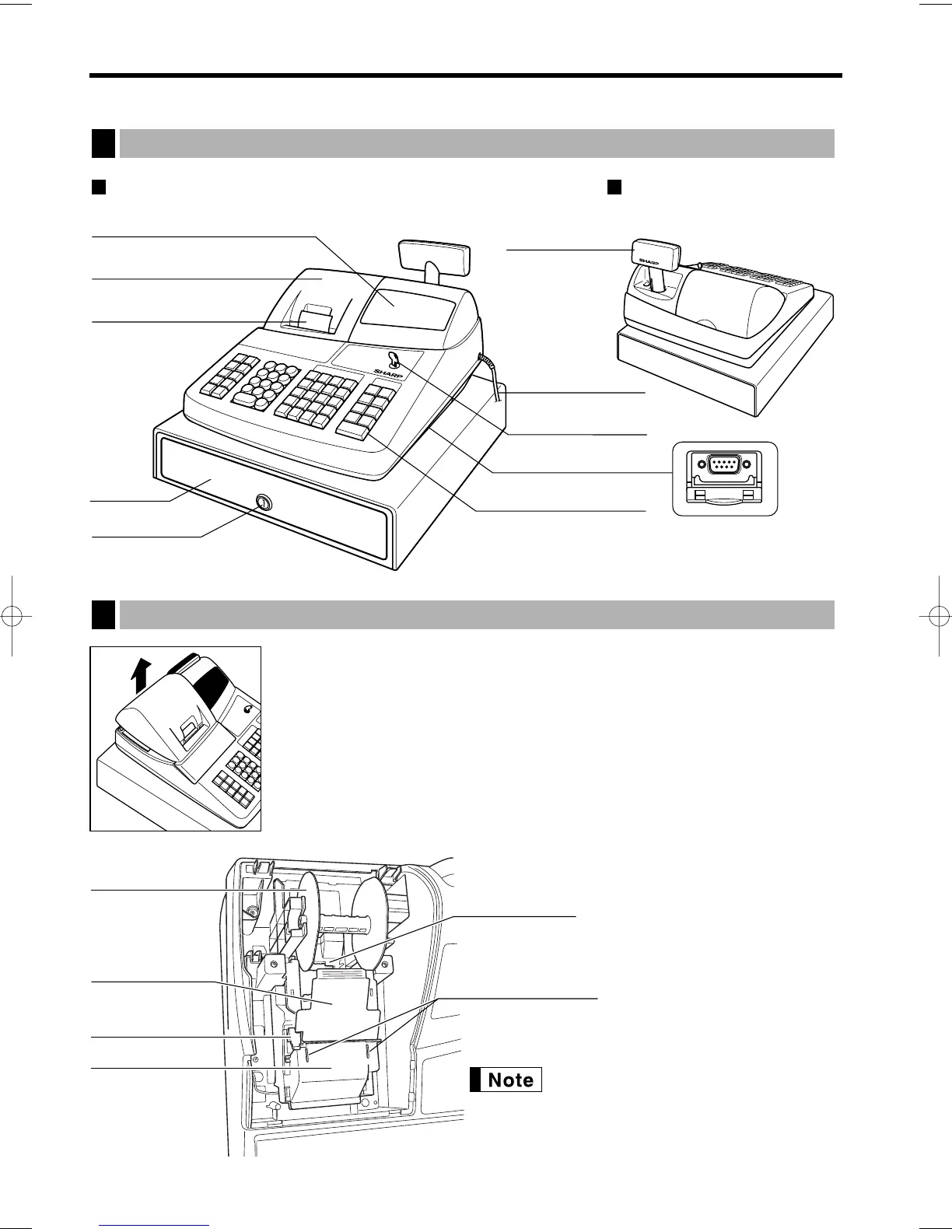

PARTS AND THEIR FUNCTIONS
Front view Rear view
External View
1
The printer is one station type thermal printer, therefore it does not require any type
of ink ribbon or cartridge.
Lift the rear of the printer cover to remove. To re-install, hook the pawls on the
cabinet and close.
Caution: The paper cutter is mounted on the printer cover. Be careful not to
cut yourself.
Printer
2
RS-232C connector
Operator display
Receipt paper
Drawer lock
Drawer
Printer cover
Customer display
(Pop-up type)
Mode switch
Power cord
Keyboard
Take-up spool
Print roller
release rever
Print roller arm
Inner cover
Paper roll cradle
Paper positioning guides
Do not attempt to remove the paper roll
with the print roller arm is locked. This may
result in damage to the printer and print
head.
A242_1 06.1.10 5:13 PM Page 4
