Sharp HT-SB602 User Manual

E-3

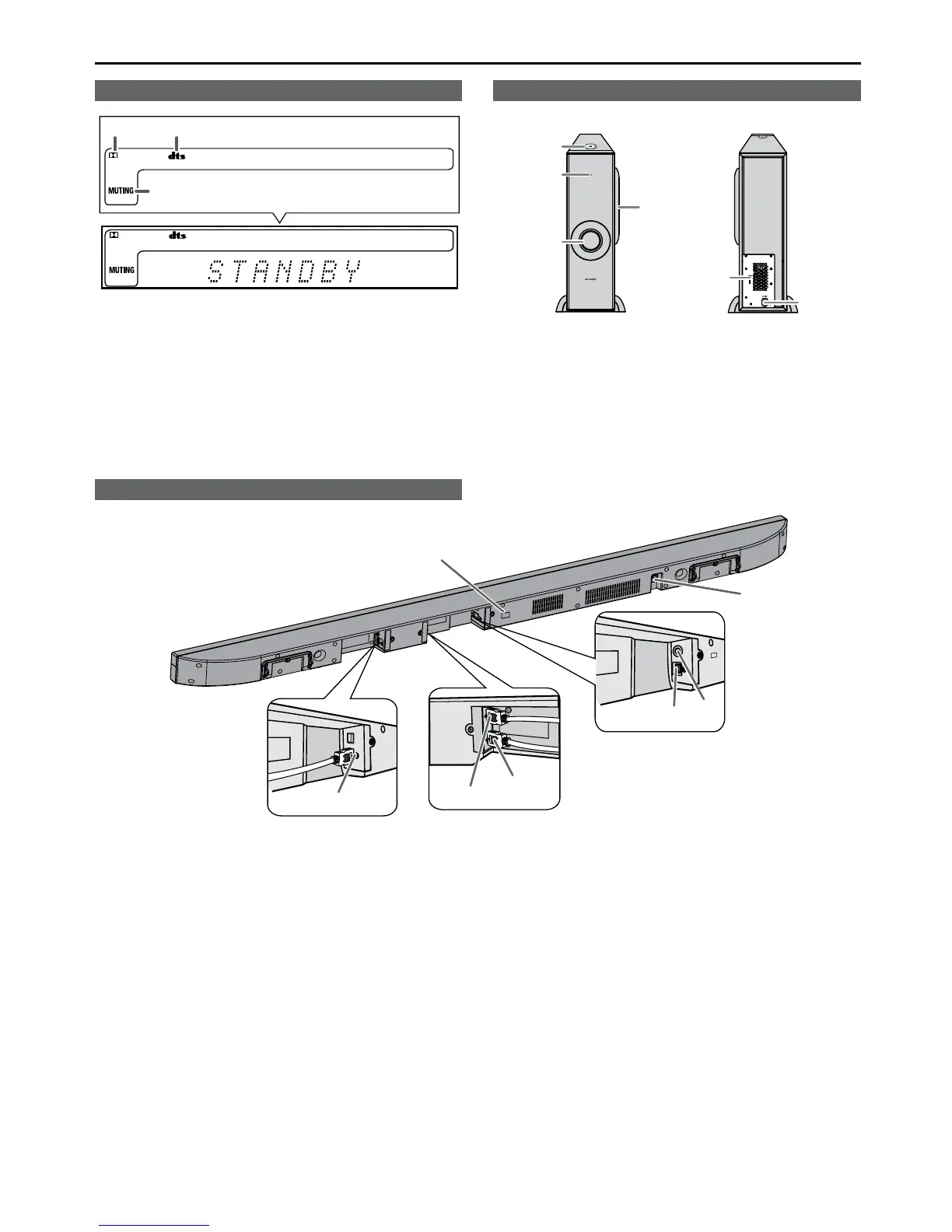

Controls and indicators (continued)
 Display
DIGITAL
DIGITAL
12
3
Page
1. Dolby Digital Indicator ........................................13
2. DTS Indicator ........................................................ 13
3. Muting Indicator ................................................... 12
 Subwoofer
5
3
4
2
6
1
FRONT VIEW REAR VIEW
Page
1. NFC detection area ..............................................14
2. Power/Pairing Indicator ......................................11
3. Bass Reect Duct
4. Woofer
5. SW LINK (Subwoofer Link) button ..................... 11
6. AC Power Lead .......................................................7
 Sound Bar Rear Panel
7
6
5
4
3
2
1
Page
1. IR OUT Terminal .....................................................8
2. HDMI OUT (TV ARC) Socket ............................ 8, 9
3. HDMI IN 1 Socket ............................................... 8, 9
4. HDMI IN 2 Socket ............................................... 8, 9
5. Optical IN Socket .................................................10
6. Audio IN Terminal ................................................10
7. AC Power Lead .......................................................7

Sharp HT-SB602 Specifications

General

Audio decoders	DTS
RMS rated power	310 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Number of tweeter drivers	2
Soundbar speaker RMS power	160 W
Number of mid-range drivers	4
Subwoofer location	Separate
Subwoofer connectivity	Wireless
Receiver included	No
Product color	Black
Recommended usage	TV
Apple docking compatibility	Not supported
Size (imperial)	60 \
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Subwoofer depth	306 mm
Subwoofer width	144 mm
Subwoofer height	430 mm
Main unit dimensions (WxDxH)	1384 x 68 x 73 mm
