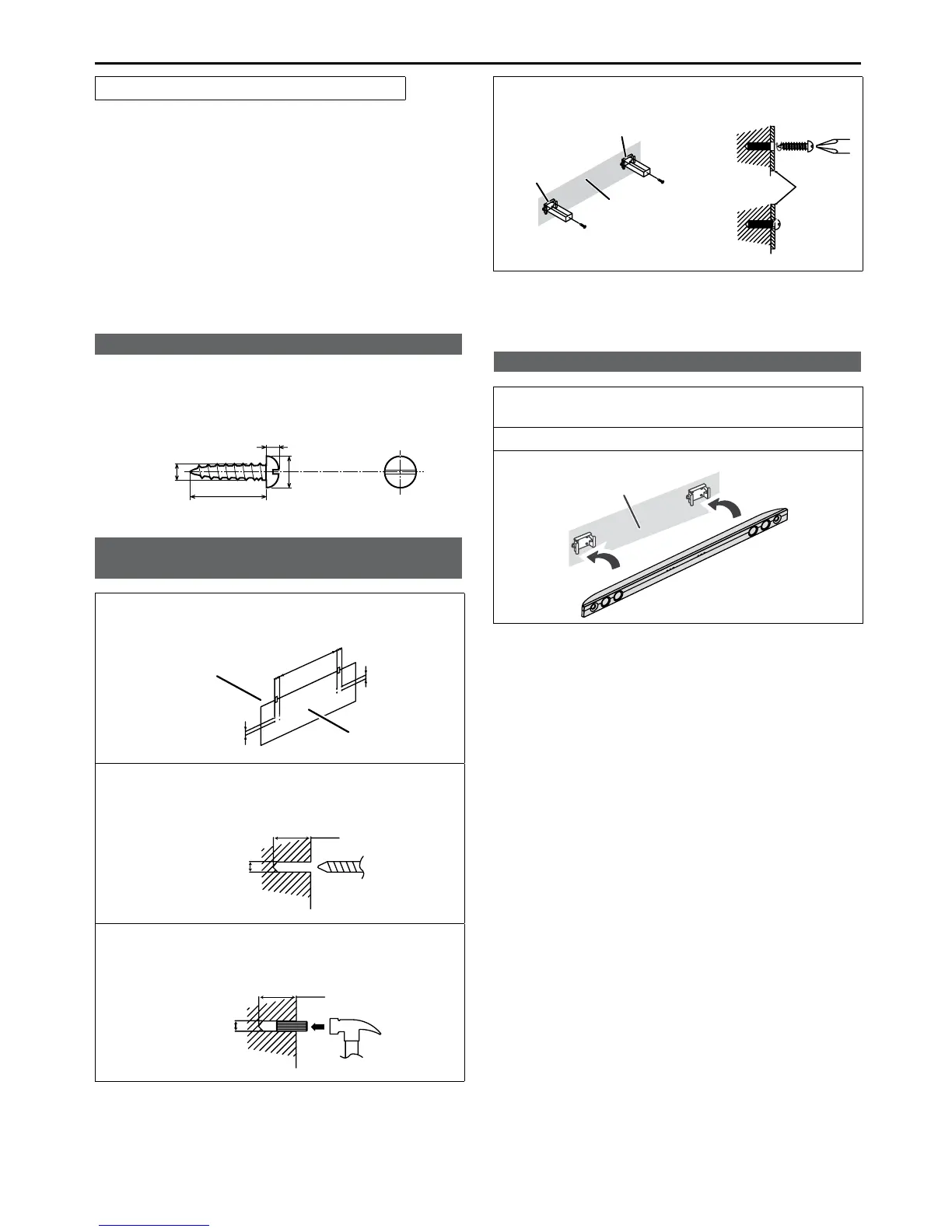

E-5
Sound bar preparation
To mount the sound bar on the wall
Caution:
z
Be very careful to prevent the sound bar 3.7 kg from falling
when mounting on the wall.
z
Before mounting, check the wall strength. (Do not put on
the veneer plaster or whitewashed wall. The sound bar
may fall.) If unsure, consult a qualied service technician.
z
Mounting screws are not supplied. Use appropriate ones.
z
Check all wall mount angle screws for looseness.
z
Select a good location. If not, accidents may occur or the
sound bar may get damaged.
z
SHARP is not responsible for accidents resulting
from improper installation.
Driving screws
SHARP designed the sound bar so you may hang them
on the wall. Use proper screws (not supplied). See below
for size and type.
3.2 mm
5 mm
Min. 22 mm
9 mm
Fixing wall mount angle
(Horizontal position)
1 Fix the pattern paper to the wall in horizontal
position as below.
Wall surface
Pattern paper
44 mm
44 mm
29 mm
29 mm
926 mm
2 Make a hole on the wall following the screw
point marks on the pattern paper by using a
drill.
Wall surface
32 mm
8-9 mm
3 Fix a wall mount plug (not supplied) into the
hole using a hammer, until it is ush with the
wall surface.
Wall surface
32 mm
8-9 mm
4 Screw the wall mount angle to the wall as shown
in the illustration. (Total screw is 8 pieces)
Wall mount angle
Wall mount
angle
Wall
mount
angle
(screws x 4)
(screws x 4)
Wall surface
Wall surface
Wall
surface
Note:
Make sure all screws are fully tightened. (screws are not
supplied)
Installing the sound bar
1 Align the wall mount slot at the sound bar to the
wall mount angle.
2 Slot the sound bar into the wall mount angle.
3 Fix them securely.
Wall surface

Other manuals for Sharp HT-SB602

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Sharp HT-SB602 and is the answer not in the manual?

Sharp HT-SB602 Specifications

General IconGeneral
Audio decodersDTS
RMS rated power310 W
Audio output channels2.1 channels
Audio Return Channel (ARC)Yes
Number of tweeter drivers2
Soundbar speaker RMS power160 W
Number of mid-range drivers4
Subwoofer locationSeparate
Subwoofer connectivityWireless
Receiver includedNo
Product colorBlack
Recommended usageTV
Apple docking compatibilityNot supported
Size (imperial)60 \
Audio (L/R) in1
Connectivity technologyWired & Wireless
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Weight and Dimensions IconWeight and Dimensions
Subwoofer depth306 mm
Subwoofer width144 mm
Subwoofer height430 mm
Main unit dimensions (WxDxH)1384 x 68 x 73 mm
