Sharp HT-SB602 User Manual

E-7

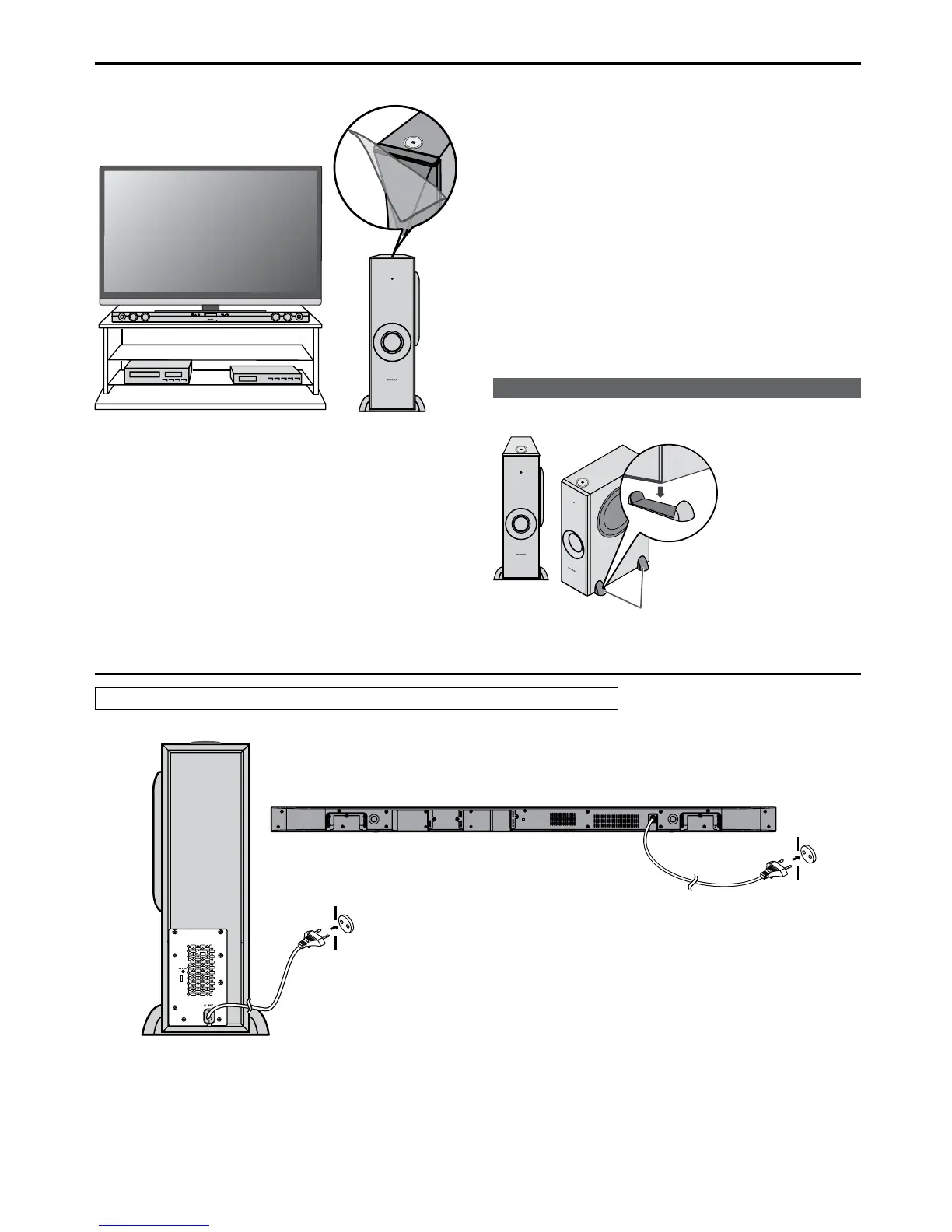

Placing the system
Installation image:
TV
VCR DVD player Subwoofer
Sound Bar
Place the system as shown.
Remove the protective lm covering the sound bar and
subwoofer before turn on the system.
Notes:
z The front panel of the sound bar is not removable.
z The transmission distance of the wireless signal be-
tween the subwoofer and sound bar is about
10 m
(32 feet) , but may vary depending on your operating
environment. If a steel-concrete or metallic wall is be-
tween the subwoofer and the sound bar, the system
may not operate at all, because the wireless signal
cannot penetrate metal.
Caution:
z Do not change the installation direction when the
sound bar is turned on.
z Do not stand or sit on the sound bar and subwoofer as
you may be injured.
z Do not allow any objects to fall into or to be placed in
the bass reex duct.
 Placing the stand
Place the stand as shown.
Stand
System connections
Make sure to unplug the AC power lead before making any connections.
Subwoofer
Sound Bar
Wall socket
AC 220 - 240 V ~ 50/60 Hz
Wall socket
AC 220 - 240 V ~ 50/60 Hz

Sharp HT-SB602 Specifications

General

Audio decoders	DTS
RMS rated power	310 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Number of tweeter drivers	2
Soundbar speaker RMS power	160 W
Number of mid-range drivers	4
Subwoofer location	Separate
Subwoofer connectivity	Wireless
Receiver included	No
Product color	Black
Recommended usage	TV
Apple docking compatibility	Not supported
Size (imperial)	60 \
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Subwoofer depth	306 mm
Subwoofer width	144 mm
Subwoofer height	430 mm
Main unit dimensions (WxDxH)	1384 x 68 x 73 mm
