CONNECTING EXTERNAL DEVICES (Continued)
Outputting video and audio (video output)

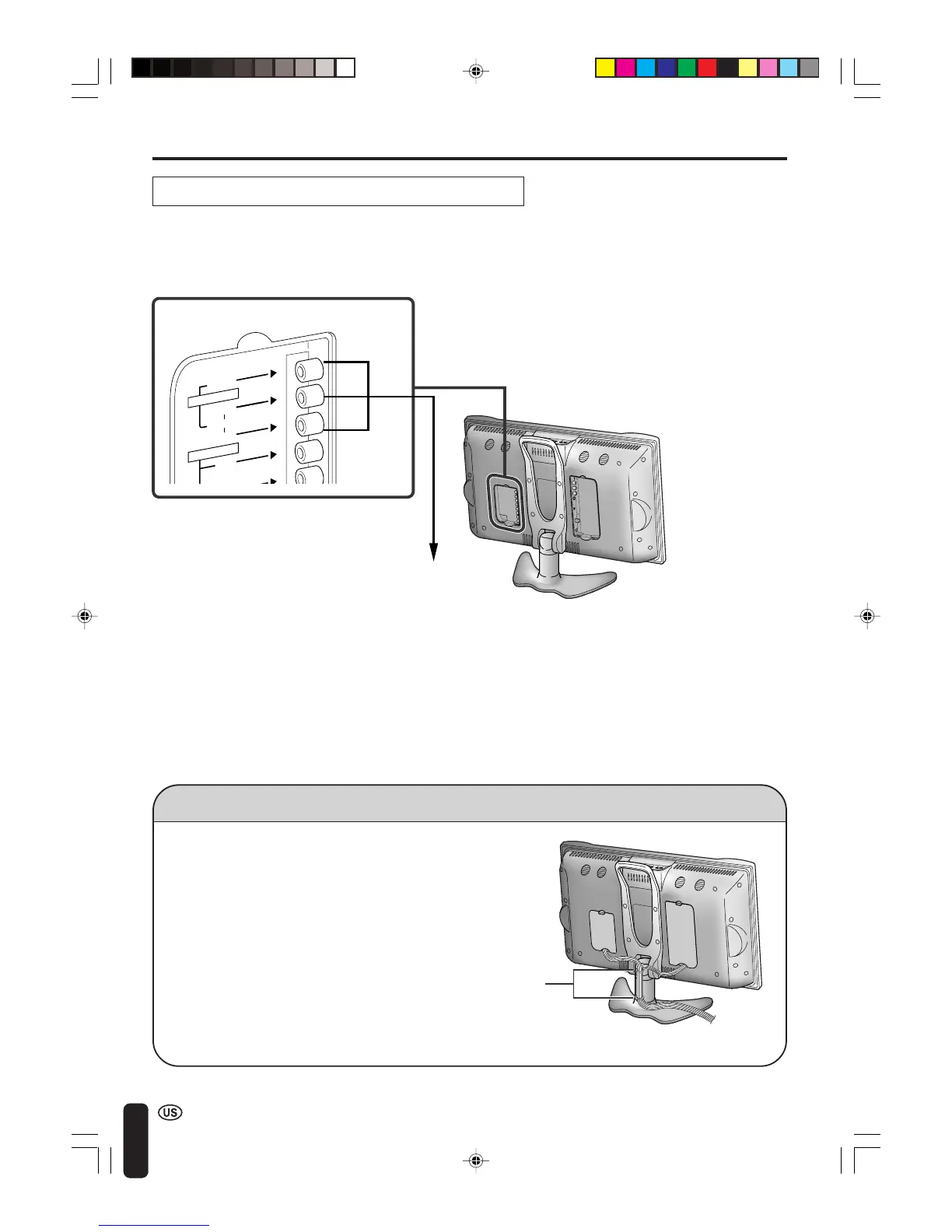

You can output video and audio signals from the TV set through the AV output terminals (AV-OUT).
• When using AV2 as an output terminal, select PRESET in the MENU and set AV-IN2/OUT to OUT.
(See page 29.)
• The factory setting for AV-IN2/OUT is IN.
A
• AV-IN2/OUT has 2 OUT modes (see page 29).
• When using the S-video input for AV-IN1, no video output will be made to the AV output terminal, but audio output
will be made for connection to external audio systems.
Connect to a VCR,
audio amplifier, etc.
Bundling Cables with Clamps
• Secure cables and cords with the supplied
cable clamps so that they do not get caught
when mounting the covers.
V
O
L
C
H
M
E
N
U
T
V
/
V
I
D
E
O
M
A
I
N
P
O
W
E
R
Cable clamps (x2)
