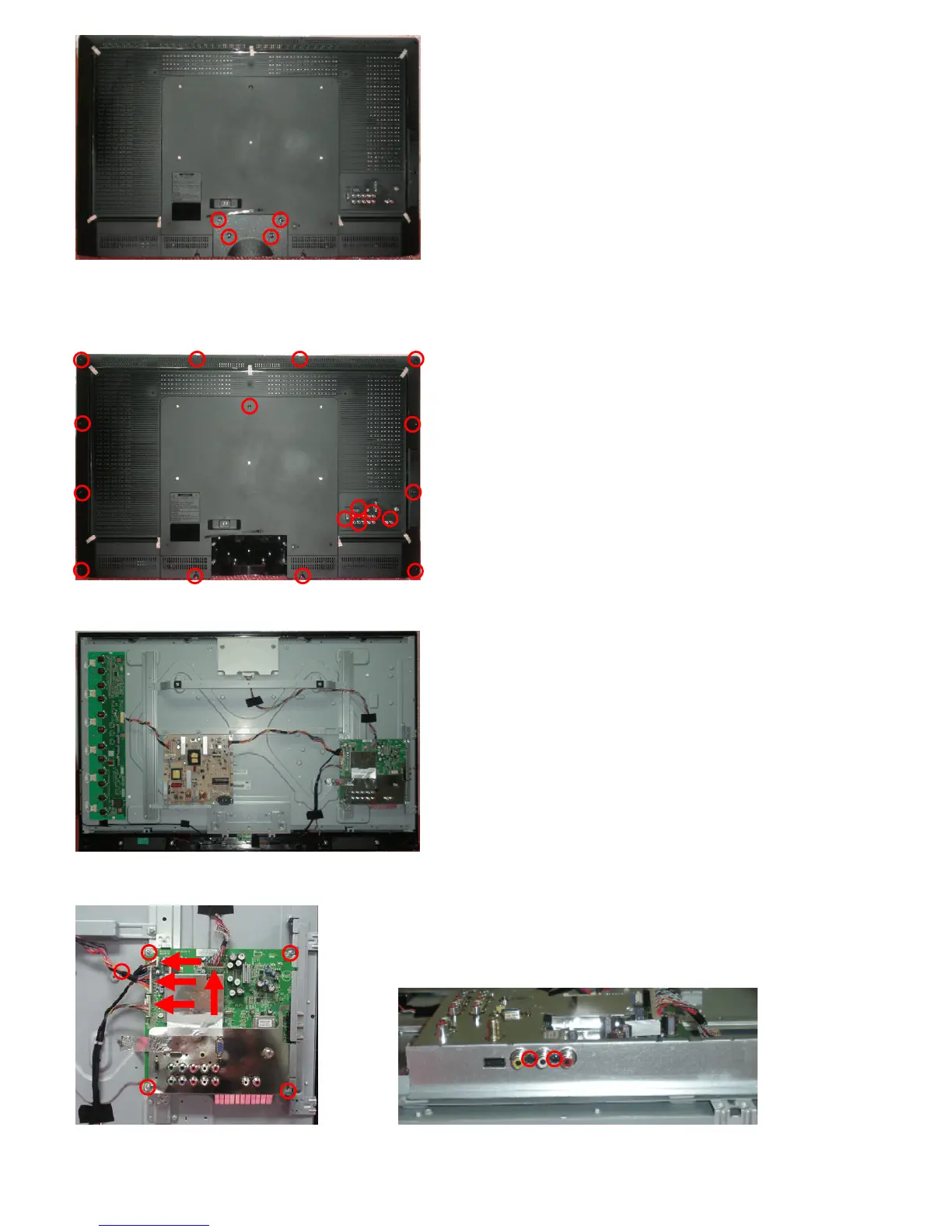

Fig.4
2. Remove the 4 screws. Detach the Neck as Fig.4.
Step 2. Remove the REAR COVER Assy.
1. Remove the 18 screws. Detach the REAR COVER as Fig.5.
Fig.5
Step 3. Remove the Main, Power board and the Speakers.
Fig.6
1. Remove the 6 screws and disconnect 4 cables. Detach the Main board as Fig.7 and Fig.8.
Fig.7 Fig.8
2. Remove the 5 screws and disconnect 1 cable. Detach the Power board as Fig.9.
