Sharp LC-32A28L - Detailed Ics Information; Block Diagram

LC-32A28L, LC-42A48L
48
2. Detailed ICs Information
2.1. U401 (MT5305AJMU LQFP-256)

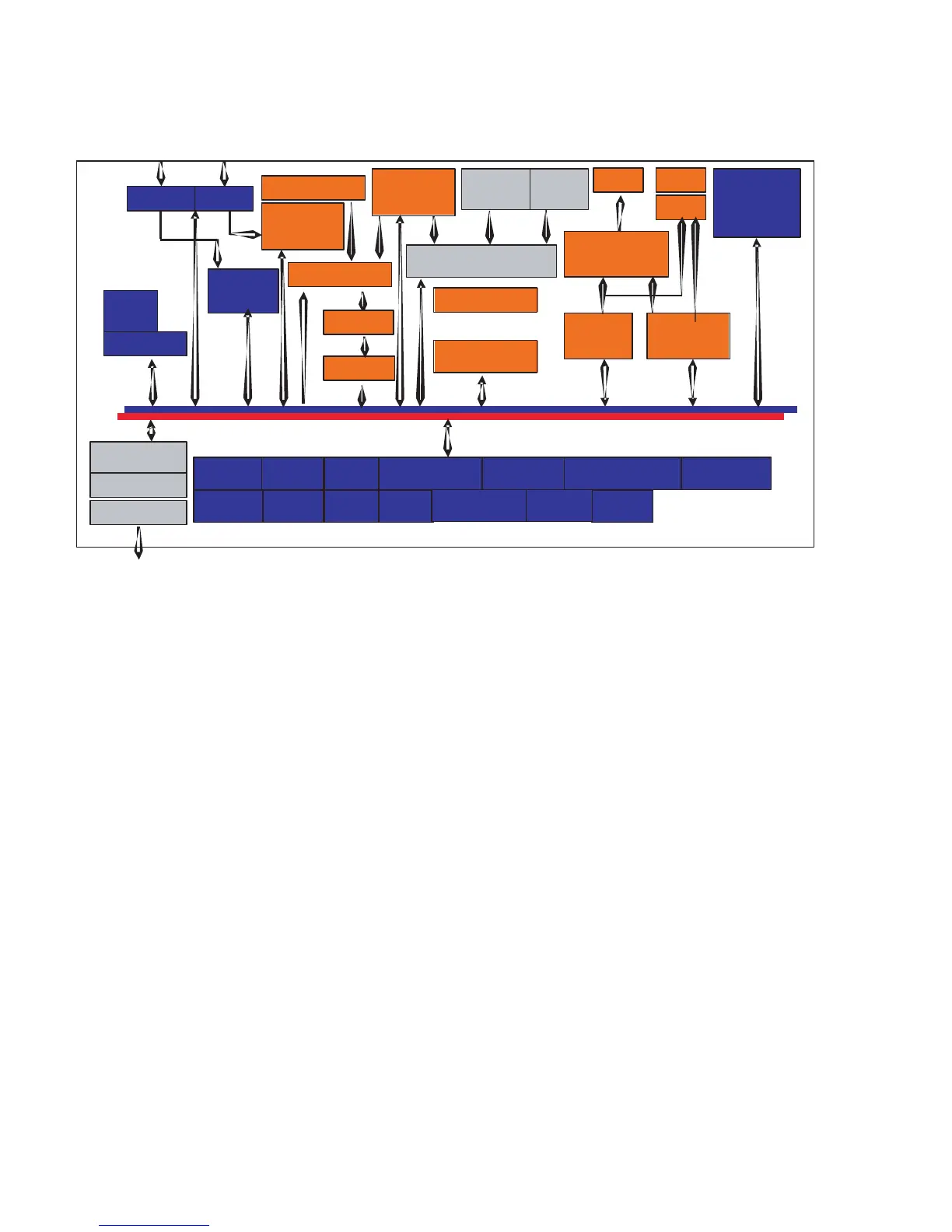

2.1.1 Block Diagram
ATSC ATD
CVBS/
YC Input
VADCx4
TV
HDMI
Rx
HDMI In
I/F
Audio
Demod
Audio
Input
Audio
ADC
Panel
LVDS
CVBS
VDAC
TVE
DDR2
DRAM
Controller
ARM
BIM
TS
Demux
Decoder
VDO-In
PreProc
MDDi
Audio In
JPEG, MPEG
2-D Graphic
Mix and Post
Processing
OSD Vplane
scaler scaler/PIP
Audio DSP
Audio I/F
JTAG IrDA SIF 1ch USB2.0
DRAM Bus
IO Bus
Watchdog Serial Flash Servo ADC
Audio DAC
SPDIF, I
2
S
BScan PVR RTC
UART Standby uP CKGEN
PWM
