Panel:
Fig.13

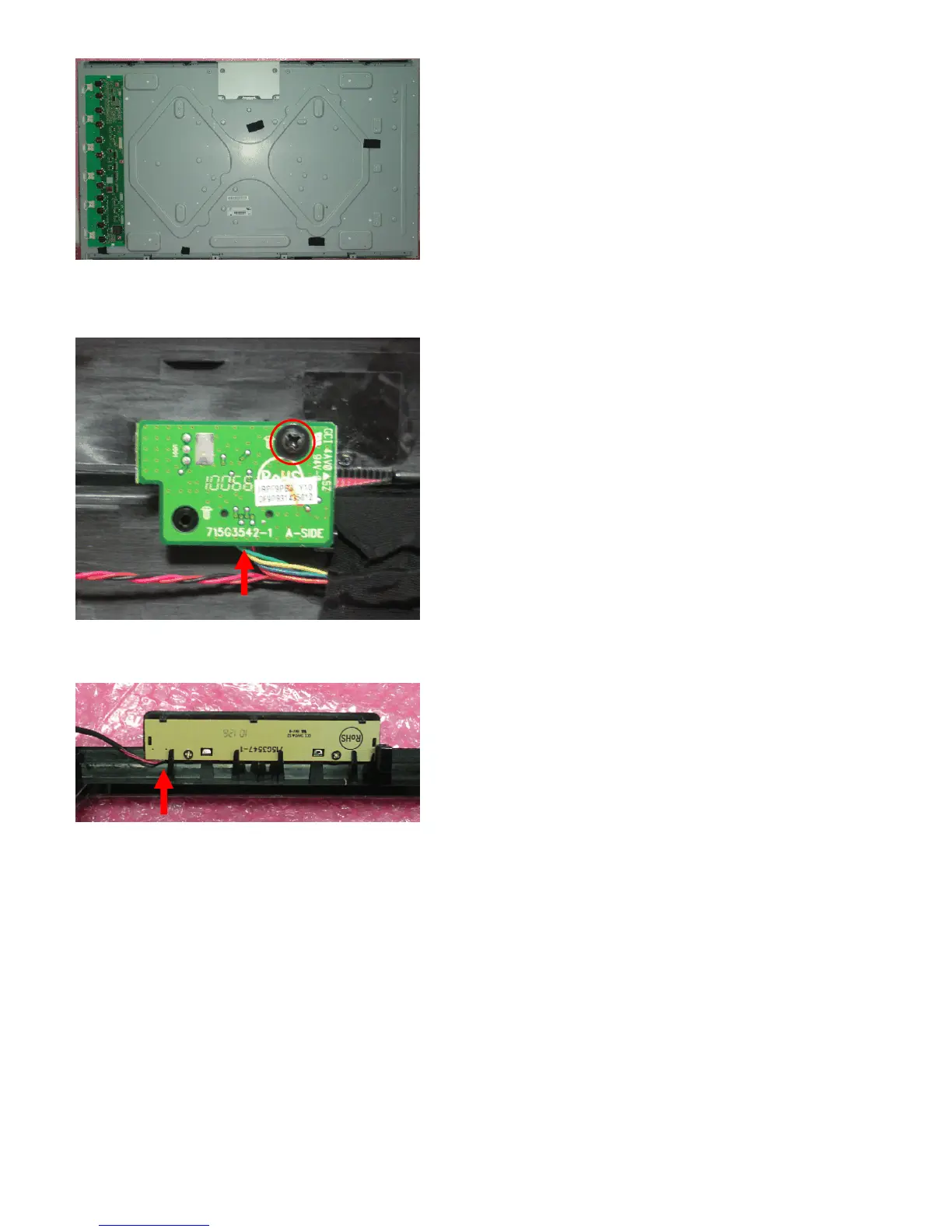

Step 5. Remove the IR and Key board.
1. Remove the 1 screws and disconnect 1 cable. Detach the IR board as Fig.14.
Fig.14
2. Disconnect 1 cable. Detach the Key board as Fig.15.
Fig.15
2. Set Re-assembly
To re-assemble the whole set, execute all processes in reverse order.
Notes:
a. While re-assembling, make sure that all cables are placed and connected in their original position.
b. Pay special attention not to damage the EMC foams at the SSB shielding. Check that EMC foams are put
correctly on their places.
