DISASSEMBLY INSTRUCTIONS
B1-3
Fig. 1-9
1-9:
1.
2.
3.
4.
5.
6.
Remove the 3 screws 1.
Remove the Angle PCB-2 and Holder Wire in the
direction of arrow (A).
Remove the 2 screws 2.
Remove the Angle LCD Top in the direction of arrow
(B).
Remove the 2 screws 3.
Remove the Angle LCD Bottom in the direction of arrow
(C).
(B)
(A)
1
2
Angle LCD Bottom
1
1
2
Angle LCD Top
3
3
Angle PCB-2
(C)

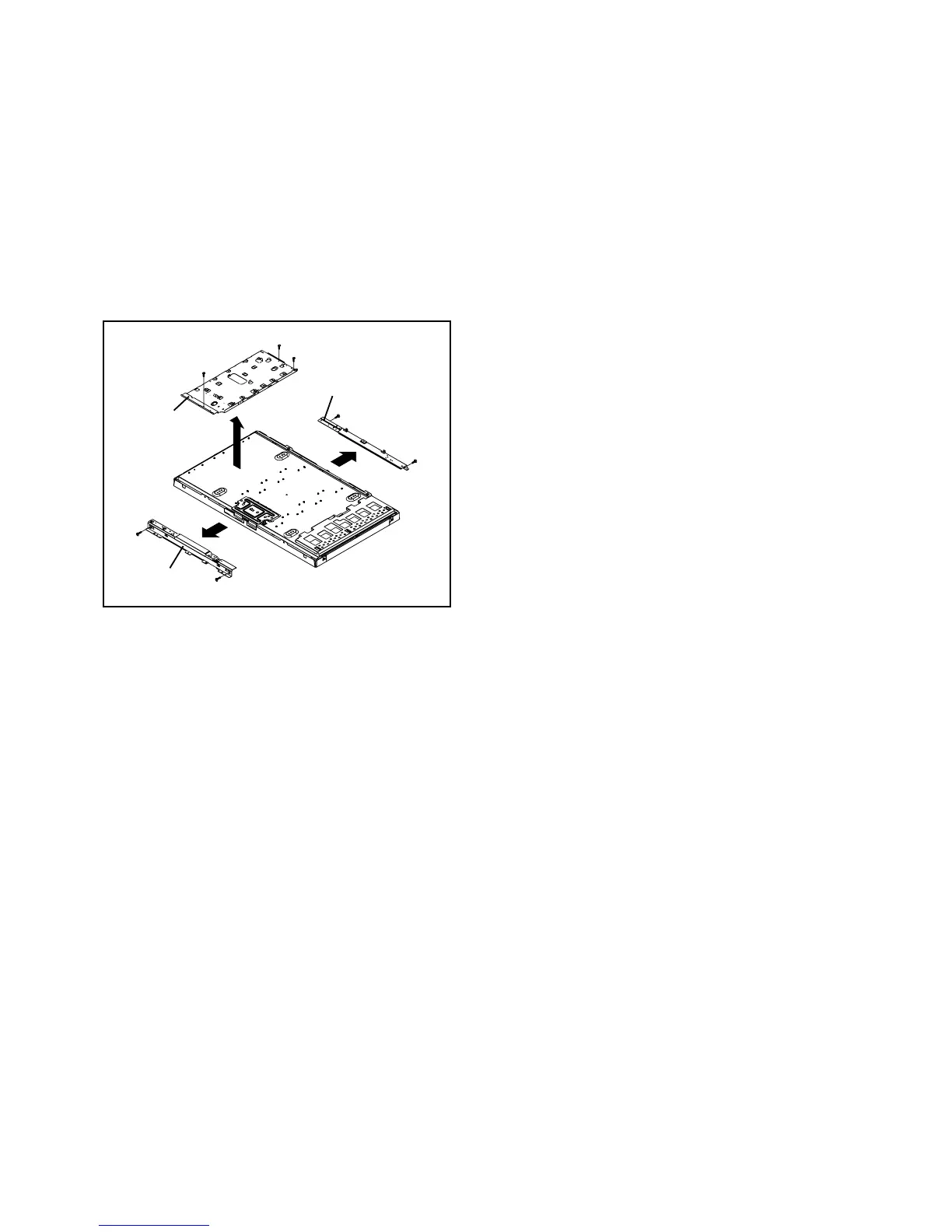

ANGLE LCD TOP AND ANGLE LCD BOTTOM
(Refer to Fig. 1-9)
