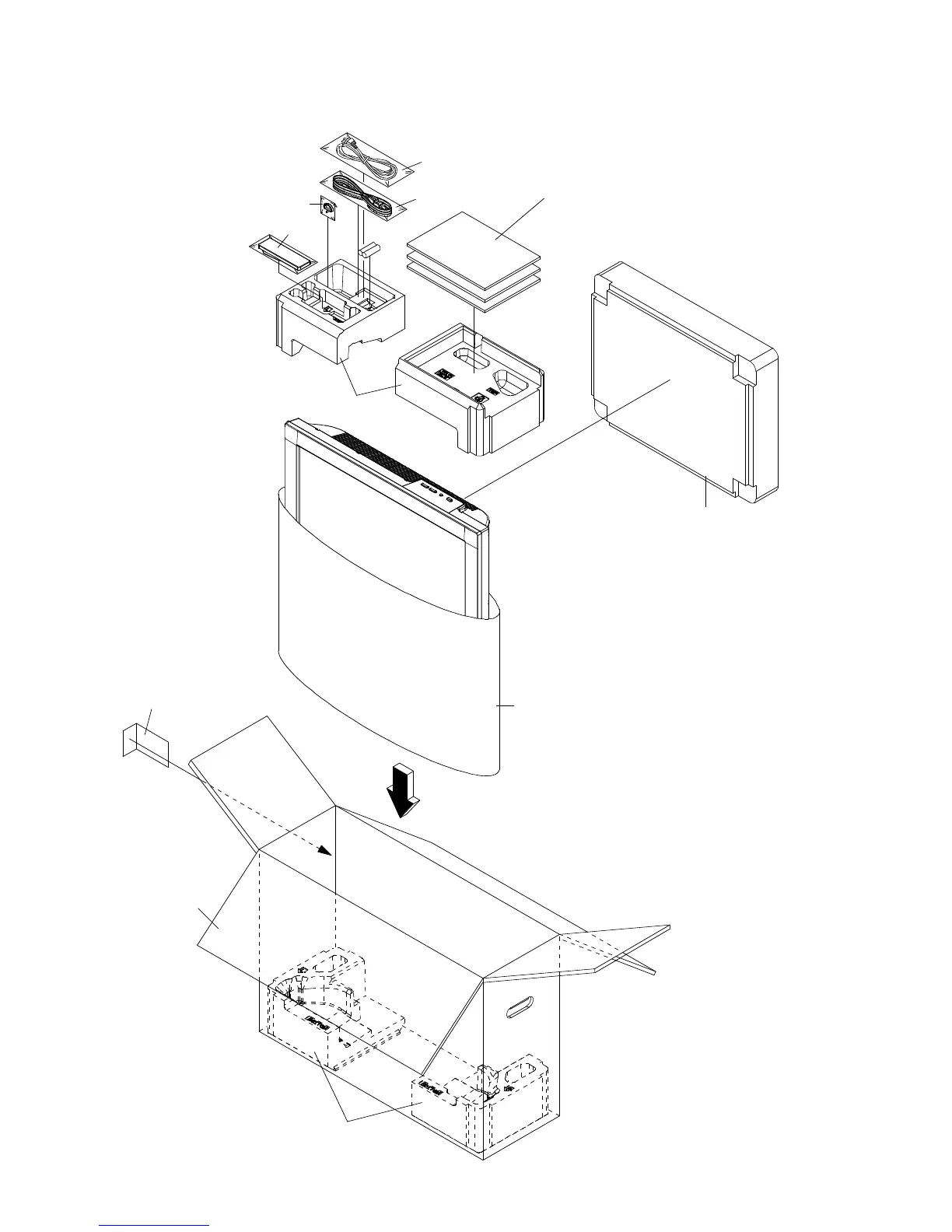

MECHANICAL EXPLODED VIEW

(PACKING DIAGRAM)

J-3

TM101

POLYBAG INSTRUCTION

INSTRUCTION BOOK(E/G/F/I/H/S)

GUARANTEE CARD

AQUOS CARE PLAN

CLEANING CLOTH PACK

POLYBAG INSTRUCTION

INSTRUCTION BOOK(GR/PR/SW/FI/D/N)

POLYBAG INSTRUCTION

INSTRUCTION BOOK(PL/HU/CZ/SVK/UKR/ES/LA/LI)

INFORMATION SHEET (FOR G.CARD AND AQUOS)

PACKAGE TOP

PACKAGE STAND-TOP

PACKAGE STAND-BOTTOM

PACKING SACK

SCREW

LAMIFILM BAG

PACKAGE BOTTOM

GIFT BOX

HOLDER CORD ASS'Y

CD3811

CD3810

PACKING CASE LABEL

Table of Contents1
Lcd Color Television1
Servicing Notices on Checking2
How to Order Parts2
Important2
- To Set the Hotel Mode3
- To Release the Hotel Mode3
Hotel Mode Function3
Distinction of Pbf PCB4
ABOUT LEAD FREE SOLDER (Pbf)4
Parental Control - Rating Level4
General Specifications5
- Removal of Mechanical Parts and P.C. Boards11
- Back Cabinet11
- Operation Pcb11
Disassembly Instructions11
- Angle Main12
- Power Pcb12
- Main Pcb12
- Digital Pcb12
- Angle Lcd Top and Angle Lcd Bottom13
- Removal and Installation of Flat Package IC14
- Installation15
Service Mode List16
Confirmation of Initial Data17
When Replacing Eeprom (Memory) IC17
Servicing Fixtures and Tools18
Install for Writing Tools18
Re-Write for Digital Soft Firmware19
- Update for VCTP Software23
- Update for EEPROM Data27
- Adjustment Procedure29
- Basic Adjustments29
- White Balance29
Electrical Adjustments29
- Contrast30
- Confirmation of Fixed Value31
- Electrical Adjustment Parts Location Guide33
- Power Does Not Tuner on34
Troubleshooting Guide34
- The Picture Does Not Appear35
- The Color Does Not Appear38
- On Screen Display Does Not Appear39
- The Screen Has a Vertical Line or a Horizontal Line40
- Tuner/Scart1/Scart2/Rca Audio out Block Diagram41
- Power/Regulator Block Diagram42
- Scaler/Sub Micon Block Diagram43
- HDMI/D-Sub Block Diagram44
- Sound Amp/Headphone Jack/Component Jack Block Diagram45
- Digital_Block Diagram46
- Power(Power Pcb) Block Diagram47
- Main (Top Side)48
Printed Circuit Boards48
- Main (Bottom Side)49
- Solder Side50
- 21Pin Schematic Diagram53
- Power3 Schematic Diagram54
- Regulator Schematic Diagram55
- AV Jack/Switch Schematic Diagram56
- Sound Amp/Headphone Amp Schematic Diagram57
- Tuner Schematic Diagram58
- Scaler Schematic Diagram59
- Sub Micon/Rs-232C Schematic Diagram60
- Jack Schematic Diagram61
- Panel Interface Diagram62
- Interface_Hdmi IC Schematic Diagram63
- ASIC Schematic Diagram64
- Flash/Sdram Schematic Diagram65
- Common Interface Schematic Diagram66
- Power I/O Schematic Diagram67
- Ofdm/Tuner Schematic Diagram68
- Operation/Remocon Schematic Diagram71
- Interconnection Diagram72
Waveforms73
- Mechanical Exploded View75
- Mechanical Exploded View (Packing Diagram)76
- Mechanical Replacement Parts List78
- Electric Replacement Parts List80
