To Next Page

To Previous Page

IC4205 D.TUNER/YUV_SW

J4203 COMPONENT_JACK

Y_IN 16 3 SW_Y/D_Y

PR_IN 5 SW_PB/D_PB

PB_IN 1 6 SW_PR/D_PD

9 DTV_LPM_CTL_H

14 D_TUNER_AUDIO_L

D_TUNER_AUDIO_R

DTV_TX/RX

DTV_RESET

LPM_INT

SP_AUDIO_OUT_L

SP_AUDIO_OUT_R

DTV_H

AUDIO_MUTE

HP_MUTE

CP6001 (FROM/TO DIGITAL_PCB) HP_IN

A_OUT_L 1

A_OUT_R 2

LPM_INIT 3 IC301 SOUND_AMP

POWER_CTL 9

CVBS 5 2

TVTX 6 SP_L+/- CP301 SPEAKER

TVRX 8

SP_R+/-

RESET 10

Y11 14

D.TUNER YUV

U13

V15

DTV-H 7

SPDIF 23

SCL/SDA 21/25

DIF1 27

DIF2 29 IC300 HEAD_PHONE_AMP J4205 HEAD_PHONE_JACK

IF_AGC 30

318

IF_AGC

DIF2 4

DIF1

D_TUNER_SCL

D_TUNER_SDA

D_TUNER_CVBS

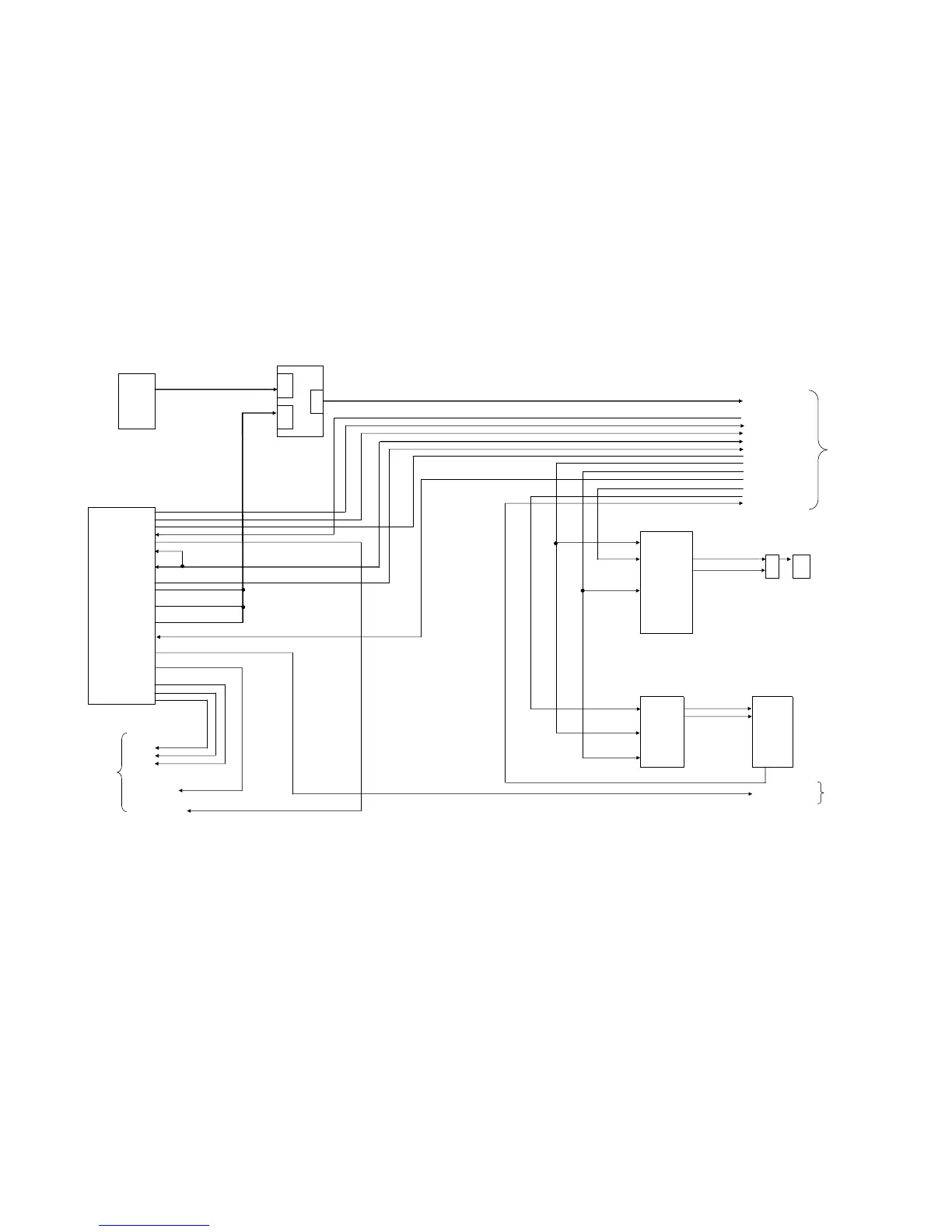

SOUND AMP/HEADPHONE JACK/COMPONENT JACK BLOCK DIAGRA

SCALER/ SUB

MICON

HDMI/D-SUB

TUNER/SCART

1/SCART2/

RCA AUDIO

OUT

D_TUNER_SPDIF

F-9 F-10

Table of Contents1
Lcd Color Television1
Servicing Notices on Checking2
How to Order Parts2
Important2
- To Set the Hotel Mode3
- To Release the Hotel Mode3
Hotel Mode Function3
Distinction of Pbf PCB4
ABOUT LEAD FREE SOLDER (Pbf)4
Parental Control - Rating Level4
General Specifications5
- Removal of Mechanical Parts and P.C. Boards11
- Back Cabinet11
- Operation Pcb11
Disassembly Instructions11
- Angle Main12
- Power Pcb12
- Main Pcb12
- Digital Pcb12
- Angle Lcd Top and Angle Lcd Bottom13
- Removal and Installation of Flat Package IC14
- Installation15
Service Mode List16
Confirmation of Initial Data17
When Replacing Eeprom (Memory) IC17
Servicing Fixtures and Tools18
Install for Writing Tools18
Re-Write for Digital Soft Firmware19
- Update for VCTP Software23
- Update for EEPROM Data27
- Adjustment Procedure29
- Basic Adjustments29
- White Balance29
Electrical Adjustments29
- Contrast30
- Confirmation of Fixed Value31
- Electrical Adjustment Parts Location Guide33
- Power Does Not Tuner on34
Troubleshooting Guide34
- The Picture Does Not Appear35
- The Color Does Not Appear38
- On Screen Display Does Not Appear39
- The Screen Has a Vertical Line or a Horizontal Line40
- Tuner/Scart1/Scart2/Rca Audio out Block Diagram41
- Power/Regulator Block Diagram42
- Scaler/Sub Micon Block Diagram43
- HDMI/D-Sub Block Diagram44
- Sound Amp/Headphone Jack/Component Jack Block Diagram45
- Digital_Block Diagram46
- Power(Power Pcb) Block Diagram47
- Main (Top Side)48
Printed Circuit Boards48
- Main (Bottom Side)49
- Solder Side50
- 21Pin Schematic Diagram53
- Power3 Schematic Diagram54
- Regulator Schematic Diagram55
- AV Jack/Switch Schematic Diagram56
- Sound Amp/Headphone Amp Schematic Diagram57
- Tuner Schematic Diagram58
- Scaler Schematic Diagram59
- Sub Micon/Rs-232C Schematic Diagram60
- Jack Schematic Diagram61
- Panel Interface Diagram62
- Interface_Hdmi IC Schematic Diagram63
- ASIC Schematic Diagram64
- Flash/Sdram Schematic Diagram65
- Common Interface Schematic Diagram66
- Power I/O Schematic Diagram67
- Ofdm/Tuner Schematic Diagram68
- Operation/Remocon Schematic Diagram71
- Interconnection Diagram72
Waveforms73
- Mechanical Exploded View75
- Mechanical Exploded View (Packing Diagram)76
- Mechanical Replacement Parts List78
- Electric Replacement Parts List80
