Connecting external devices
HDMI connection

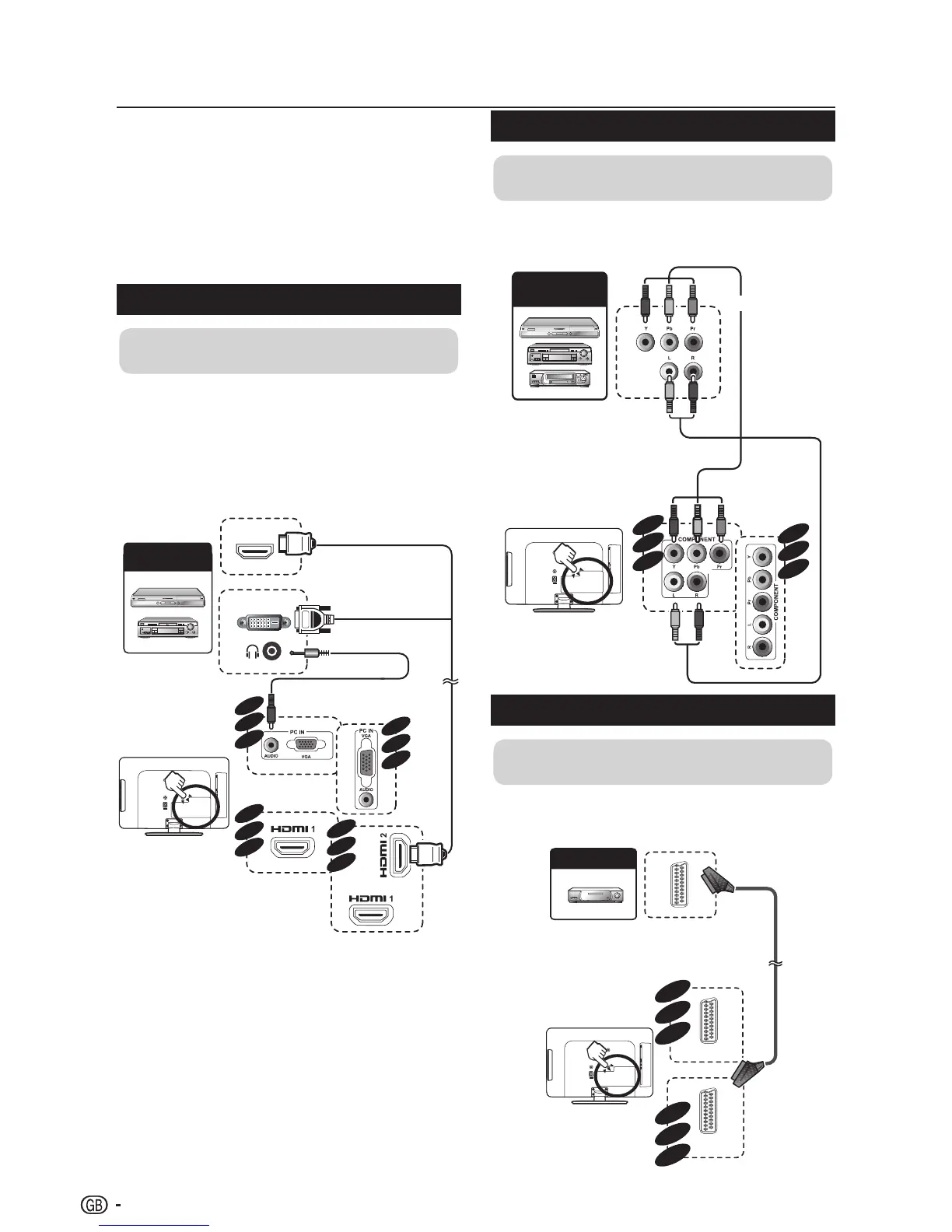

Example of connectable devices
E DVD E Blu-ray player/recorder
The HDMI connections (High Definition Multimedia
Interface) permit digital video and audio transmission
via a connection cable from a player/recorder. The
digital picture and sound data are transmitted without
data compression and therefore lose none of their
quality. Analogue/digital conversion is no longer
necessary in the connected devices, which also would
result in quality losses.
HDMI
DVI
19”
22”
26”
32”
37”
42”
32”
37”
42”
19”
22”
26”
DVI/HDMI conversion
Using an DVI/HDMI adapter cable, the digital video •
signals of a DVD can also be played via the compatible
HDMI connection. The sound must be fed in additionally.
Both HDMI and DVI use the same HDCP copy •
protection method.
Supported video signal:
576p, 480p, 1080i, 720p, 1080p
See page 26 for PC signal compatibility.
YPbPr (Component connection)
Example of connectable devices
E VCR E DVD E Blue-ray player/recorder
You will enjoy accurate colour reproduction and high
quality images through the (YPbPr) when connecting a
DVD recorder or other recording equipment.
19”
22”
32”
37”
42”
26”
SCART connection
Example of connectable devices
E Decoder
E
When using the SCART 1
Full SCART, which transmits RGB, S-Video and CVBS
in, and CVBS tuner out.
SCART
SCART 1
32”
37”
42”
19”
22”
26”
E
Before connecting ...
Be sure to turn off the TV and any devices before •
making any connections.
Firmly connect a cable to a terminal or terminals.•
Carefully read the operation manual of each external •
device for possible connection types. This also
helps you get the best possible audiovisual quality to
maximise the potential of the TV and the connected
device.
HDMI device
HDMI cable
DVI-HDMI cable
Audio cable
(YPbPr) Component
Connection
Component cable
Audio cable
SCART cable
Decoder
