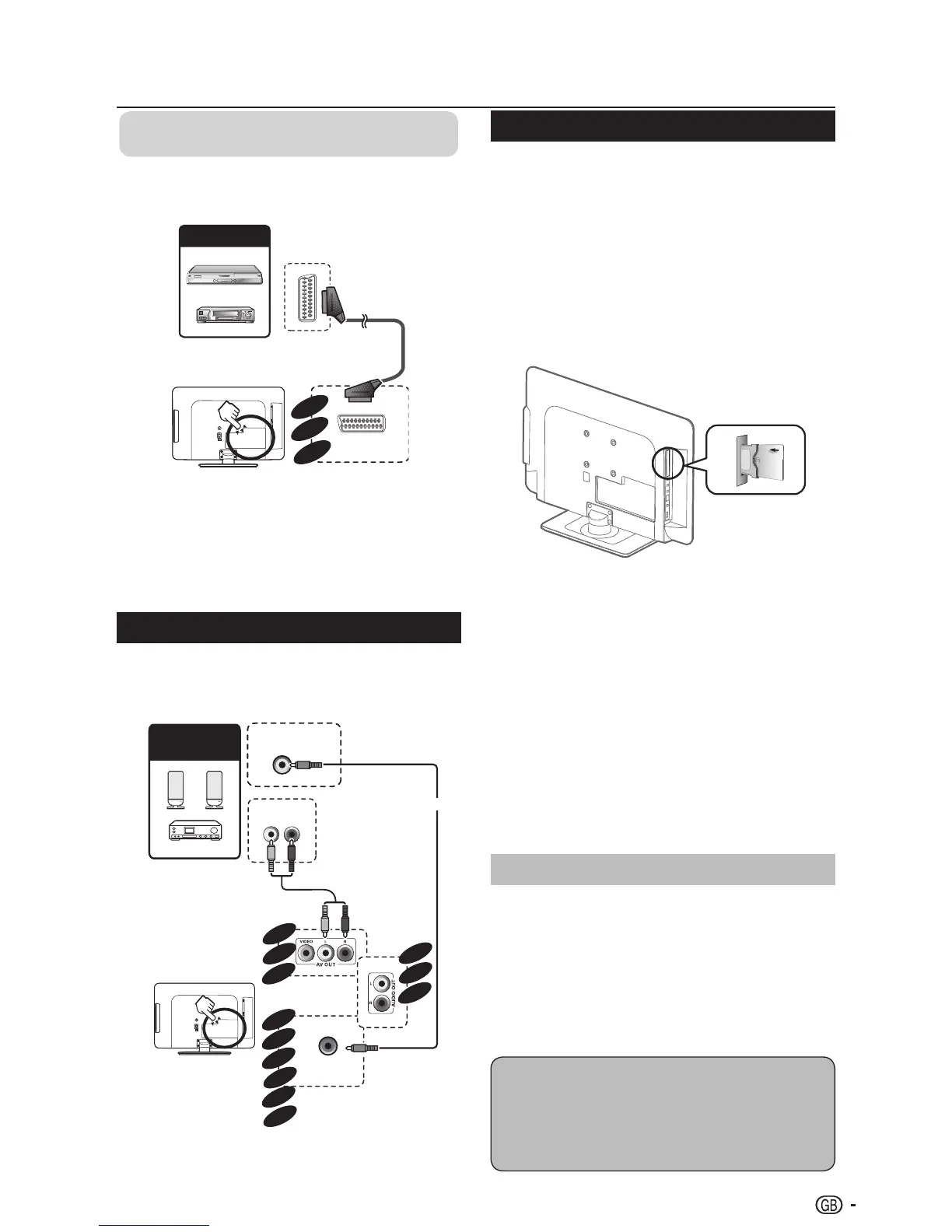

Example of connectable devices
E VCR E DVD recorder
E
When using the SCART 2
Half SCART, which transmits S-Video or CVBS in, and
CVBS monitor out.
SCART 2
32”
37”
42”
NOTE
In cases when the decoder needs to receive a signal •
from the TV, make sure to select the appropriate input
source.
Do not connect the decoder to the SCART 2.•
You cannot connect the VCR with Decoder using a fully •
wired SCART cable under the SCART 2 source.
Speaker / Amplifier connection
E
Connecting an amplifier with digital audio
input / analogue audio input
SPDIF OUT
RL
AUDIO IN
19”
22”
26”
19”
22”
26”
32”
37”
42”
32”
37”
42”
Connecting external devices
Inserting the Smartcard into the CA module
In order to receive coded digital stations, a conditional
access module (CA module) and a Smartcard must be
inserted in the CI (Common Interface) slot of the TV.
The CA Module and the Smartcard are not supplied
accessories. They are usually available from your
dealer.
Inserting the Smartcard into the CA Module
Carefully insert the CA module in the CI slot 1.
with the contact side forward.
The logo on the CA module must be facing 2.
outward from the rear of the TV.
NOTE
It takes about 30 seconds to certify the license key •
when you insert a Smartcard into the CI+ compatible
CA module for the first time. This process may fail when
there is no antenna input or you have never run “Auto
installation”.
The CI+ compatible CA module sometimes upgrades •
its firmware. You may not receive any TV images before
upgrading. You can only use the power button during
upgrading.
The CI+ compatible CA module does not allow you to •
output any copy protected programmes using monitor
out.
If the TV displays an update confirmation message •
for the Smartcard while receiving CI+ compatible
broadcasts, follow the screen prompts.
Make sure that the CA module is properly inserted.•
Checking CA module information
After inserting and activating the CA Module, make
sure the input source is TV.
Press 1. MENU on the remote control.
Go to 2. Features > Common Interface.
NOTE
This menu is only available for digital stations.•
The content of this menu depends on the provider of the •
CA module.
Module
General information on CA module displays.
Menu
Adjustment parameters of each Smartcard displays.
Enquiry
You can input numerical values such as passwords here.
SCART cable
VCD / DVD
recorder
Speaker / Amplifier
connection
Digital audio in
(COAXIAL)
Digital audio cable
Audio cable
25
