4) ADC adjustment (Component 33K)
5) PC signal adjustment (Analog D-SUB15pin)
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
COMP 33K 50Hz 100% Full field
colour bar
[Terminal]
EXT3 CONPONENT input
• Feed the COMPONENT 33K 100% Full field colour bar (colour saturation
level 100%) signal to the CONPONENT video input of EXT3.
2 Auto adjustment
performance
Adjustment process [COM ADJ]
menu page 6/8
Bring the cursor on [COM ADJ] and press OK key [*** OK ***] appears when fin-
ished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
XGA 60 Hz 100% Full field
colour bar
[Terminal]
EXT4 PC input
• Feed the XGA 60Hz 100% Full field colour bar (colour saturation level 100%)
signal to the EXT4 PC input.
2 Auto adjustment
performance
Adjustment process [RGB ADJ]
menu page 7/8
Bring the cursor on [RGB ADJ] and press OK key [*** OK ***] appears when fin-
ished.

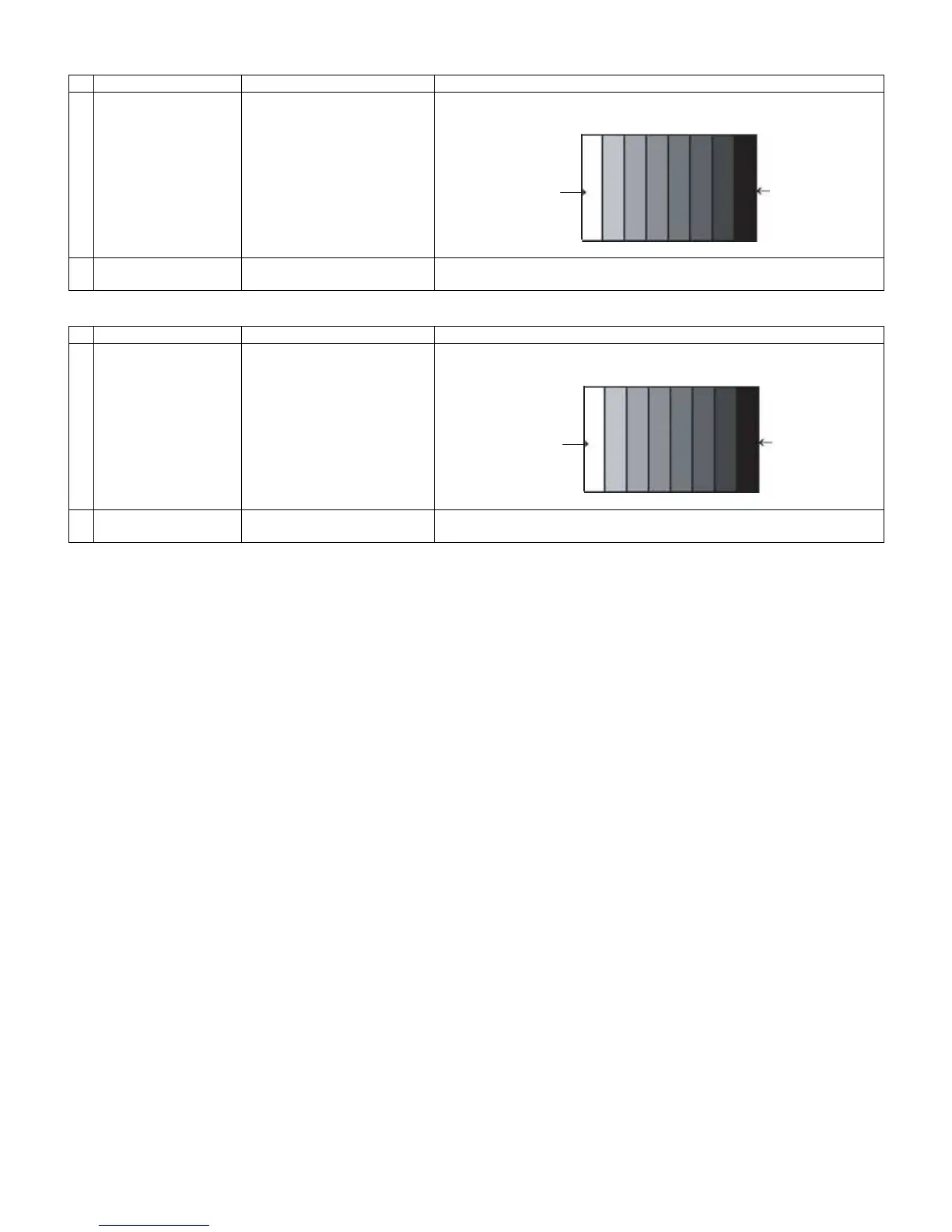

100% white Black
100% white Black
