2.18. IC9605/IC9608 (VHiLV5893M+-1Y)

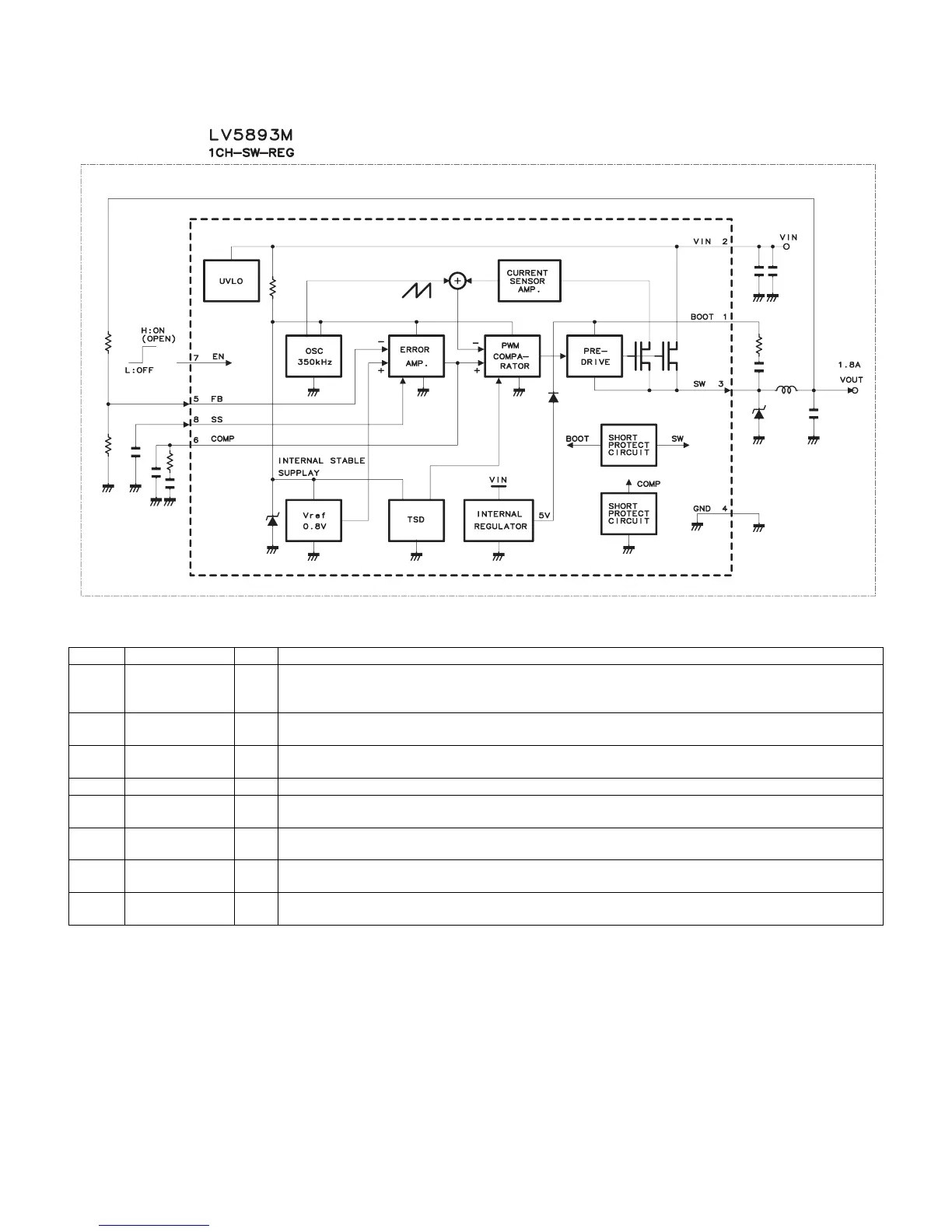

2.18.1 Block Diagram
2.18.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 BOOT I Upper part MOS transistor boot strap capacity connection terminal.
Connect the boot capacity of about 0.022µF between SW terminals.
The boot capacity series resistance (about100Ω) is effective for stable operation.
2 VIN I Input power source terminal.
Connect very big capacity (10µF 2 or more) between GND.
3 SW I Power switch terminal.
Connect the output LC filter. Connect the above-mentioned capacity between BOOT terminals.
4 GND — Ground
5 FB I Feedback terminal.
The output voltage is set by the division resistance of output voltage (Vout-FB-GND).
6 COMP I Phase compensation terminal.
Connect external capacity and resistance for the phase compensation of the DC/DC converter close loop.
7 EN I Enable terminal
It operates the converter by a high voltage or the opening. It stops with GND the converter operation.
8 SS — Soft start terminal.
The soft start time is set by built-in 10µA source voltage and external soft start capacity.
