Sharp LC-32LE600E Service Manual

LC-32/40/46LE600E/RU/S (1st Edition)
6 – 27
2.24. IC2602, IC9601, IC9613 (VHiHC2G66DP-1Y)

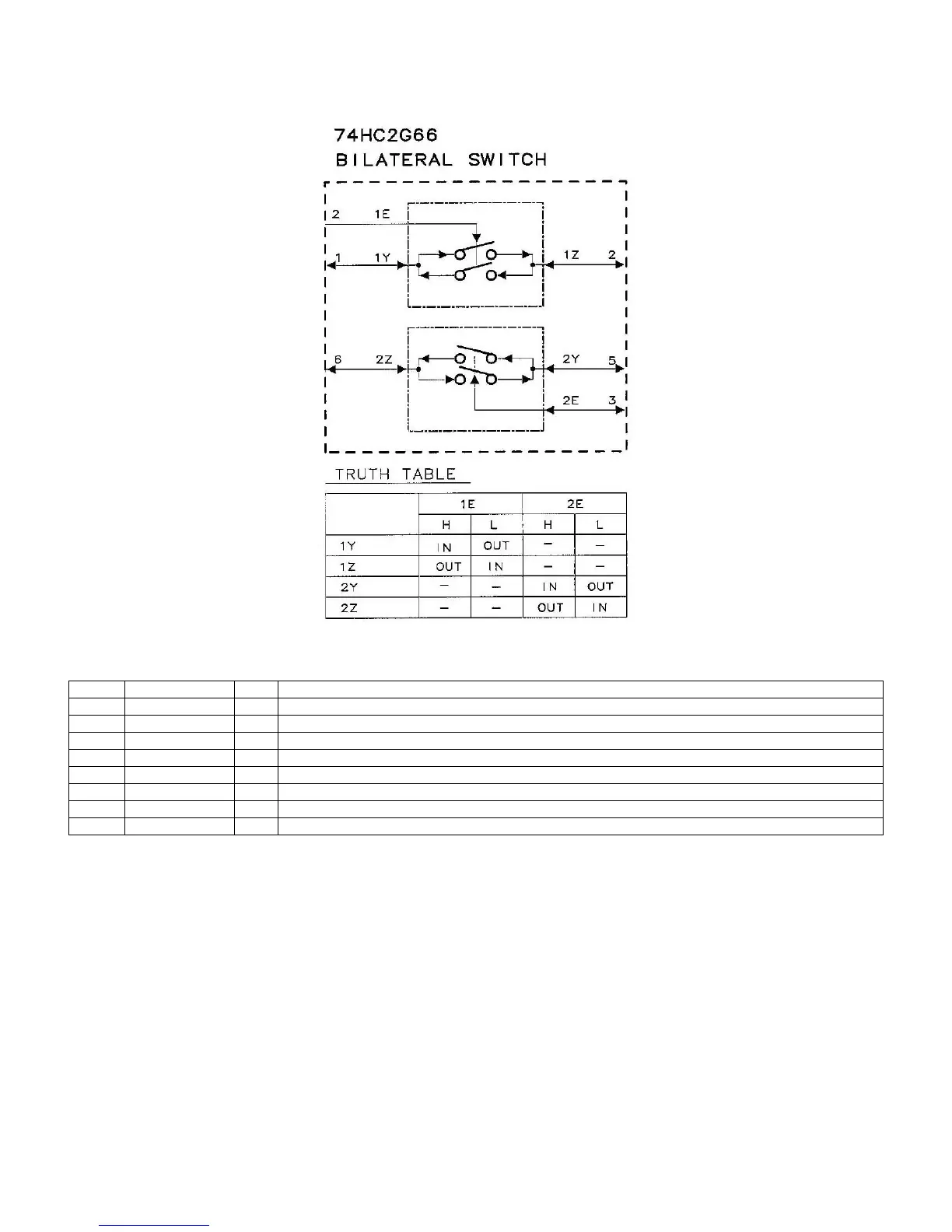

2.24.1 Block Diagram
2.24.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 1Y I/O Independent input or output.
2 1Z I/O Independent input or output.
3 2E I Enable input (active HIGH).
4 GND — Ground
5 2Y I/O Independent input or output.
6 2Z I/O Independent input or output.
7 1E I Enable input (active HIGH).
8 VCC — Supply voltage.
