LC-32/40/46LE600E/RU/S (1st Edition)
6 – 6
2.3. IC1303, IC9607 (VHiS80944NM-1Y)

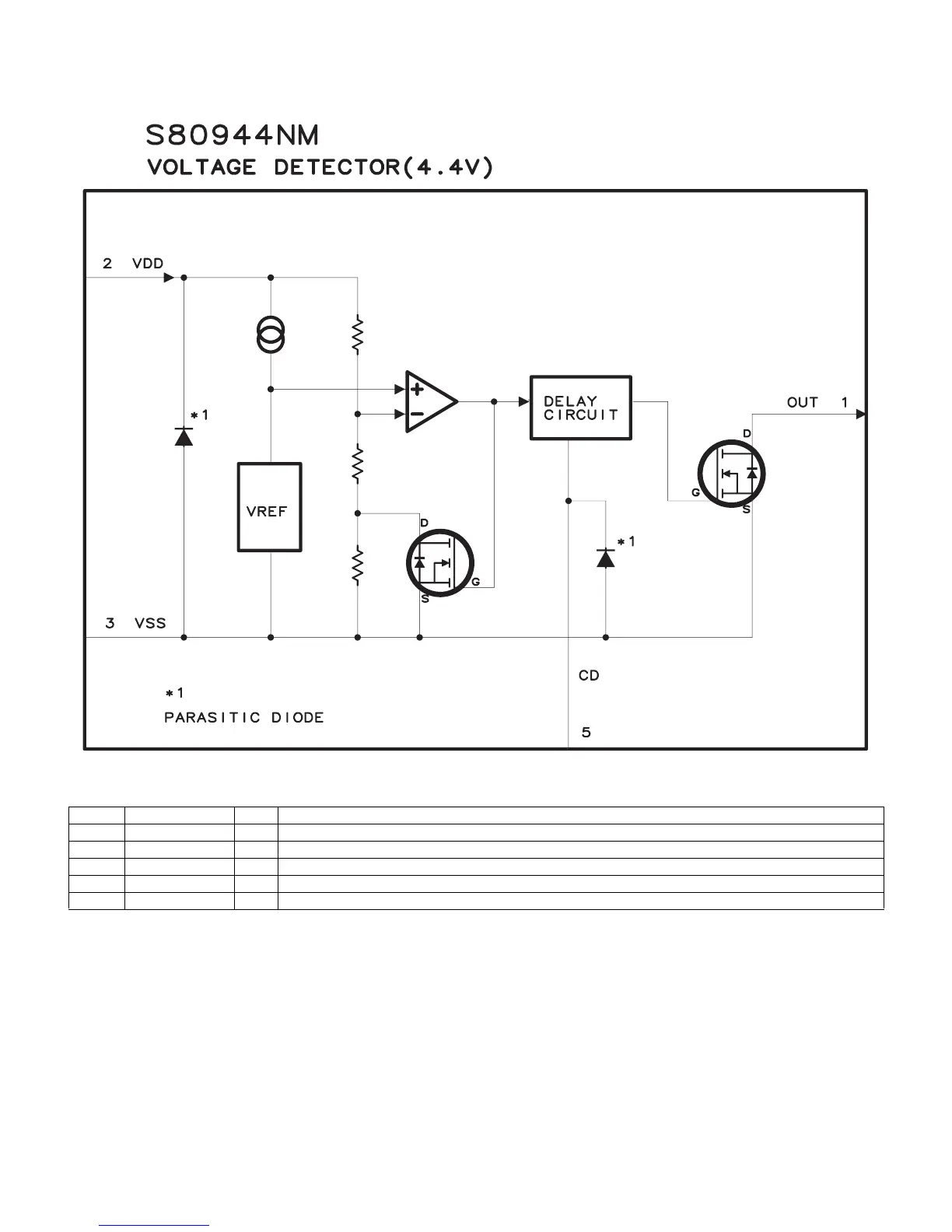

2.3.1 Block Diagram
2.3.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 OUT O Voltage detection output terminal (RESET detecting voltage).
2 VDD — Voltage input terminal.
3 VSS — Ground terminal.
4 NC — No connection (It is an opening electrically.)
5 CD I External capacitor connection terminal for delay.
