2.6. IC501 (VHiBR24C21F-1Y)

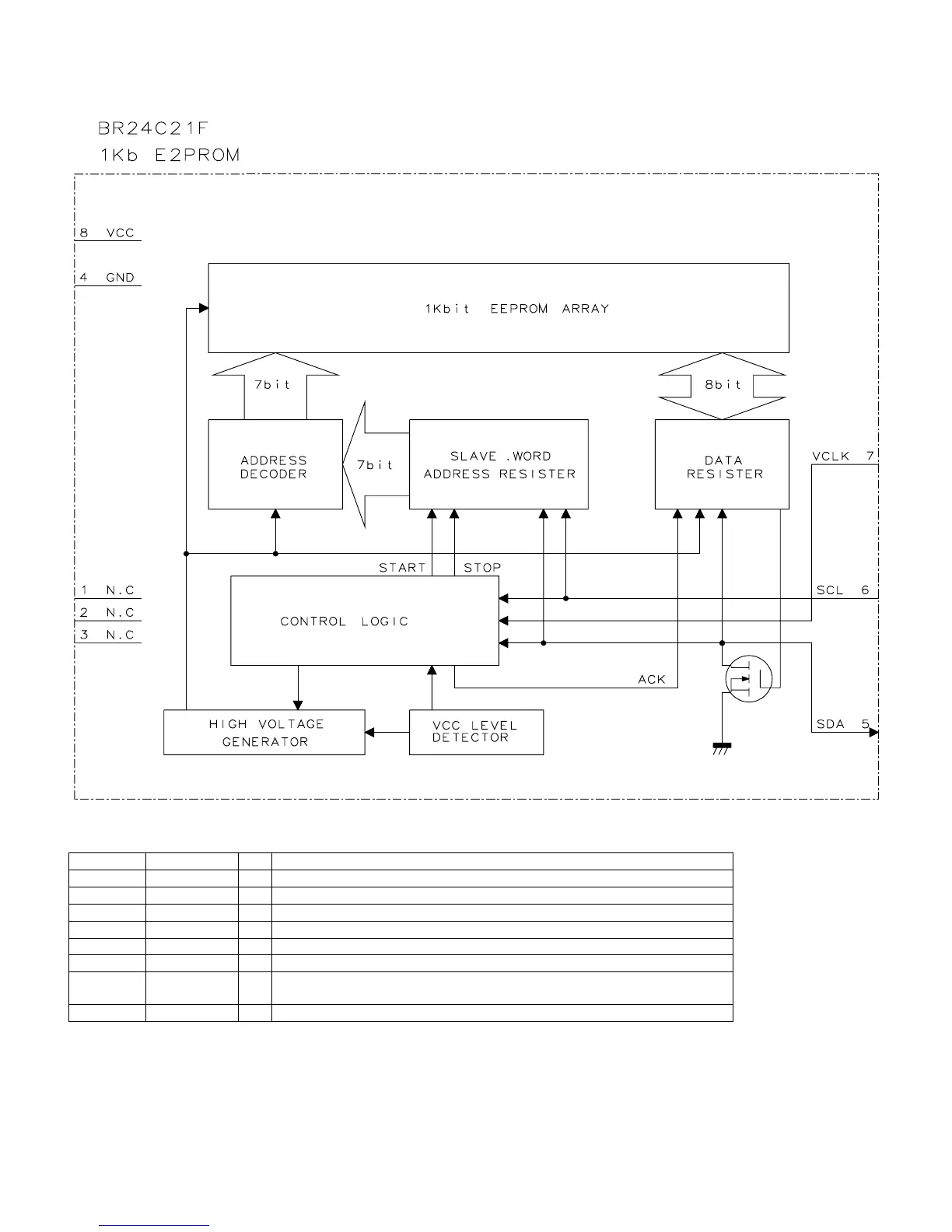

2.6.1 Block Diagram
2.6.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 N.C I No Connect : No internal electrical connection is present.
2 N.C I No Connect : No internal electrical connection is present.
3 N.C I No Connect : No internal electrical connection is present.
4 GND - Ground
5 SDA I/O Serial data Input/Output
6 SCL I Serial clock input (Bidirectional mode)
7 VCLC I CLCK Input (Transmit only mode )
Write Enable (Bidirectional mode)
8 VCC - Power supply

Sharp LC-32LE700E Specifications

General

Display diagonal	32 \
Native aspect ratio	16:9
Native refresh rate	100 Hz
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	1

Weight and Dimensions

Depth (without stand)	92 mm
Width (without stand)	767 mm
Height (without stand)	502 mm
Weight (without stand)	13500 g
