Sharp LC-32LE700E User Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
7 – 10

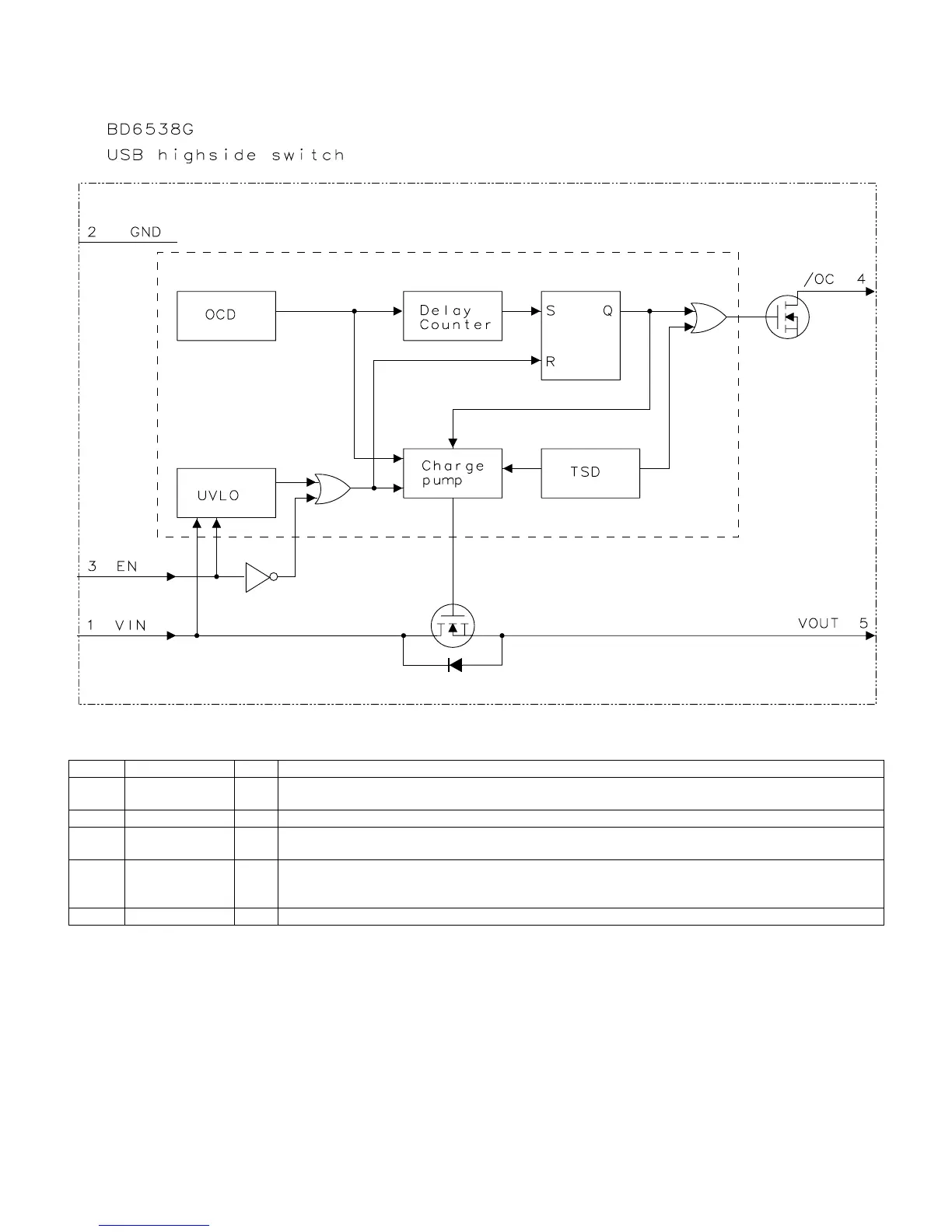

2.5. IC3301 (VHiBD6538G+-1Y)
2.5.1 Block Diagram
2.5.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 VIN I Power supply input terminal.
It is an input terminal to the switch and a power supply input terminal of an internal circuit.
2 GND — Ground
3 EN I Switch enable input terminal.
The switch is turned on by inputting the high level.
4 /OC O Over current notification terminal.
When the over current is detected, it becomes a low level.
Open drain output.
5 VOUT O Switch output terminal.

Sharp LC-32LE700E Specifications

General

Display diagonal	32 \
Native aspect ratio	16:9
Native refresh rate	100 Hz
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	1

Weight and Dimensions

Depth (without stand)	92 mm
Width (without stand)	767 mm
Height (without stand)	502 mm
Weight (without stand)	13500 g
