Sharp LC-32LE700E User Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
7 – 9
2.4. IC4404 (VHiAOZ1320C-1Y)

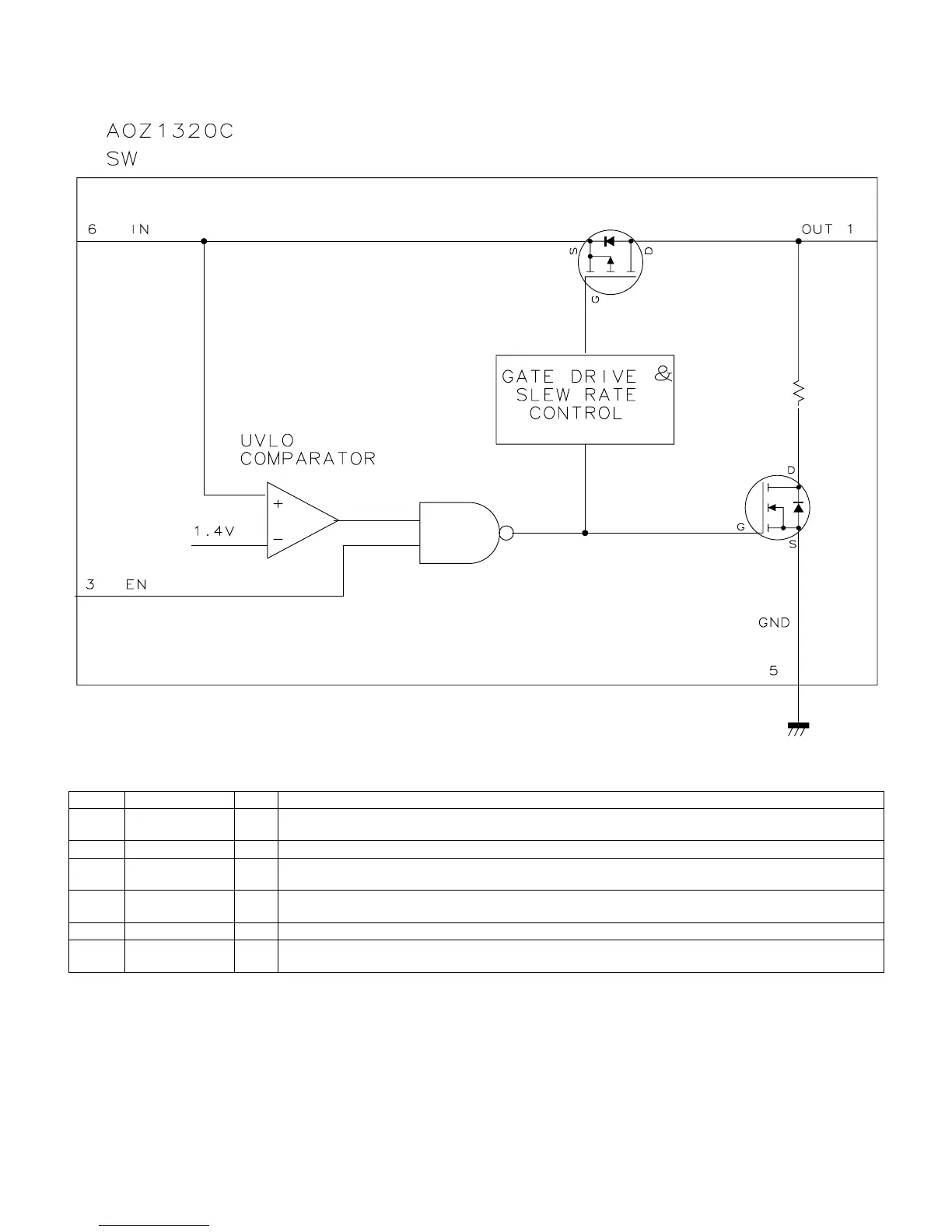

2.4.1 Block Diagram
2.4.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1OUT OOutput.
OUT is the source of the P-channel MOSFET.
2 GND — Ground
3 EN I Enable.
The P-channel MOSFET turns on when EN is logic HIGH.
4 NC — No connect.
This pin is not internally connected.
5 GND — Ground
6 IN I Input.
IN is the drain of the P-channel MOS FET. It is the supply input of the IC.

Sharp LC-32LE700E Specifications

General

Display diagonal	32 \
Native aspect ratio	16:9
Native refresh rate	100 Hz
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	Yes
HDMI ports quantity	4
USB 2.0 ports quantity	1

Weight and Dimensions

Depth (without stand)	92 mm
Width (without stand)	767 mm
Height (without stand)	502 mm
Weight (without stand)	13500 g
