LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
7 – 15
2.10. IC8455 (VHiM24C64WN-1Y)

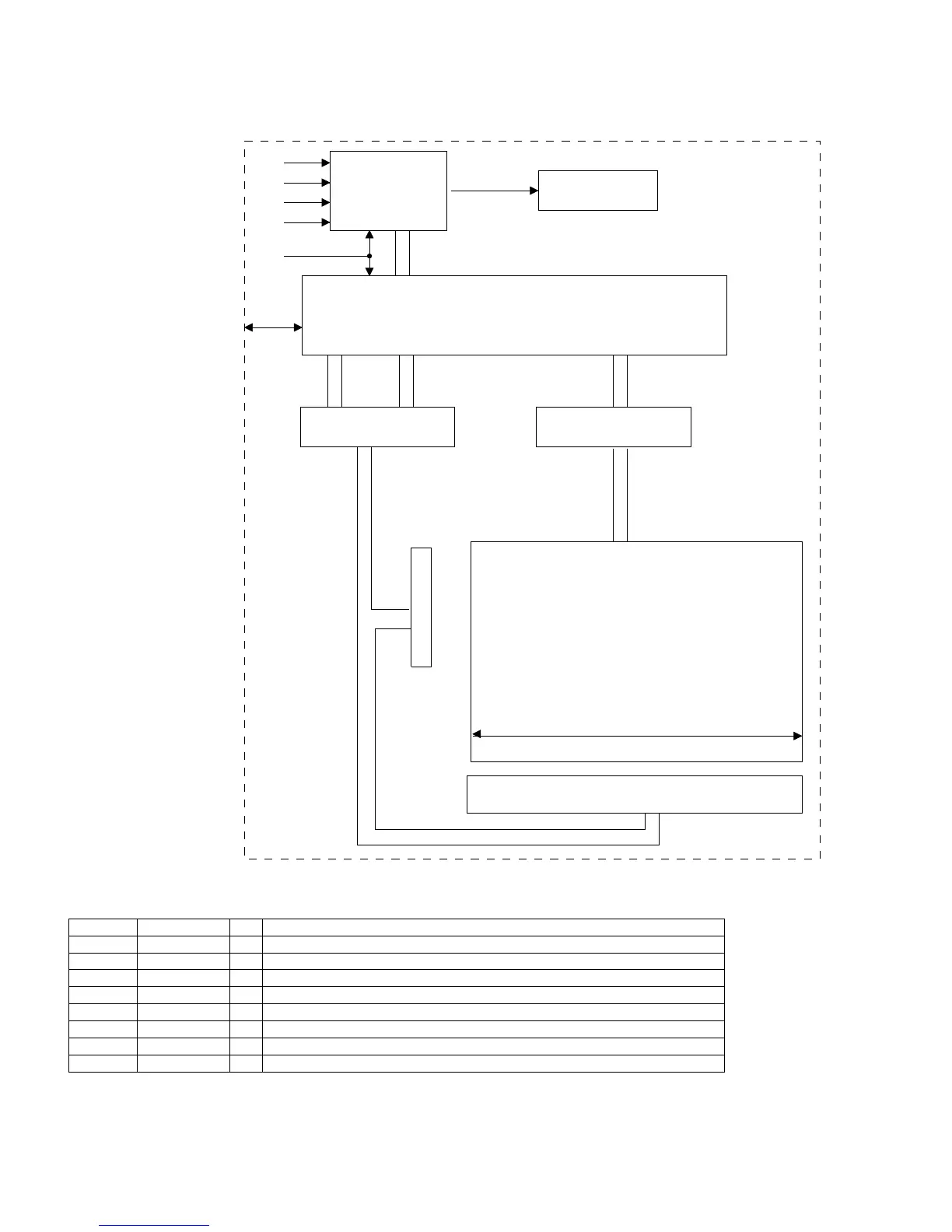

2.10.1 Block Diagram
2.10.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 E0 I Chip Enable Input
2 E1 I Chip Enable Input
3 E2 I Chip Enable Input
4 Vss - Ground
5 SDA I/O Serial data
6 SCL I Serial clock
7 WC# I Write Control
8 VCC - Power supply
M24C64
Shift
EEPROM
Register
XDEC
MEMORY
CONTROL
LOGIC
GENERATORHV
Address Register
and Counter Data Register
YDEC
1 page
I/O
SCL
E2
E1
E0
WC#
SDA
